Yaskawa SGDV SGDM-02ADA SGDV-7R6A01A SGDH-04AE AC servo motor and Driver

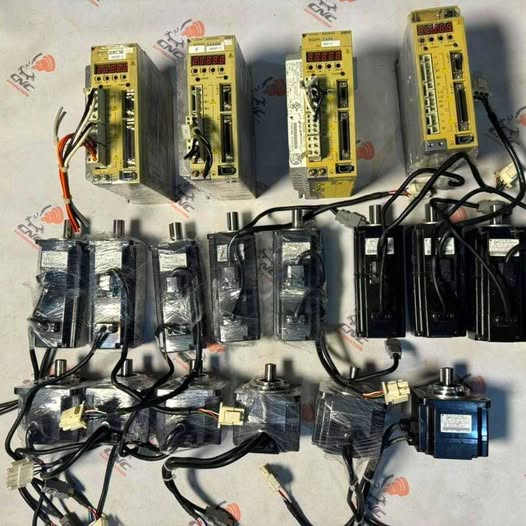

Yaskawa SGDV SGDM-02ADA SGDV-7R6A01A SGDH-04AE AC servo motor and Driver in Lahore Pakistan

Here’s an image showing a Yaskawa servo drive (similar to SGDV/SGDH series)—useful for visual context.

Product Overview: Yaskawa SGDV & SGDH Series (SGDM-02ADA, SGDV-7R6A01A, SGDH-04AE)

1. SGDV‑7R6A01A – Sigma‑5 Servo Amplifier (1 kW)

• Performance highlights:

  • Operates across 10 W to 55 kW range with bandwidth up to 1.6 kHz GlobalSpec Data Sheets+1.

  • Features a tuning-less function—no manual adjustments needed during setup GlobalSpec Data Sheets+1.

  • Built-in vibration suppression improves precision and reduces overshoot GlobalSpec Data Sheets+1.

  • Supports model-following control, enhancing positioning speed, especially with dynamic loads GlobalSpec Data Sheets.

• Ease of use & integration:

  • Comes with a setup wizard and wiring confirmation via SigmaWin+ software for quick configuration GlobalSpec Data Sheets+1.

  • Supports communication via EtherNet/IP, Modbus/TCP, USB, and RS‑422 GlobalSpec Data Sheets+1.

• Discontinued, but still supported through resellers with 2-year warranty offers GlobalSpec Data Sheets+1.

2. SGDM‑02ADA – Sigma-II/IV Series AC Servo Motor (paired with SGDM drives)

• While specific details on the “02ADA” model weren't found, it belongs to the Sigma-II (or Sigma-IV) series.

• These motors are typically matched with SGDM servo drives.

• They deliver robust performance, high response, and precise motion suitable for industrial automation. For exact specs, consult the Sigma-II/IV datasheets.

3. SGDH‑04AE – Servo Drive (Sigma-II/IV Series)

• A member of the SGDH servopack family, commonly designed for control in conjunction with Sigma-II or Sigma-IV servo motors szleeanservo.comtudonghoahuyhoang.com.

• Offers solid control performance for smaller motor outputs; precise specs (current, voltage) need to be extracted from specific datasheets.

Features Summary

How to Use These Components

A. Setup & Commissioning

1. Mounting: Secure the servo drive in a control cabinet or on DIN rail, respecting spacing for cooling.

2. Wiring:

   • Power: Connect 200–230 VAC (3‑phase) to SGDV‑7R6A01A.

   • Connect motor leads and encoder feedback per wiring diagrams.

   • Hook up control cables to PLC or HMI (EtherNet/IP, USB, RS‑422 as needed).

3. Software Configuration:

   • Launch SigmaWin+ on a PC.

   • Use the setup wizard to detect the drive, assign motor parameters, and verify wiring.

   • Autotune if needed—though in many cases, no manual tuning is required GlobalSpec Data Sheets+1.

B. Tuning & Operation

• The tuning-less function means the drive auto-adjusts control loops, saving time and optimizing performance.

• Vibration suppression adjusts on the fly to reduce mechanical vibrations at different speeds/load conditions.

• Model-following control helps maintain trajectory accuracy even when load dynamics change.

C. Integration & Maintenance

• Monitor performance and adjust via SigmaWin+ or connected HMI/PLC.

• Regularly check cooling fans, power connections, and encoder signals for reliability.

• Sigma‑5 drives like SGDV‑7R6A01A remain serviceable via third-party stockists despite being discontinued GlobalSpec Data Sheets+1.

Recommended Website Copy (for product page)

Headline:
Yaskawa Sigma‑5 Servo Amplifier SGDV‑7R6A01A (1 kW)

Product Overview:
The Sigma‑5 SGDV‑7R6A01A sets the industry standard for performance, offering ultra‑high bandwidth control (1.6 kHz), rapid settling time, and precision-perfect motion—even under dynamic workloads.

Key Features:

• Tuning‑Less Setup: Let the system autotune while you focus on design.

• Vibration Suppression: Ensures smoother, quieter operation.

• Model‑Following Control: Optimizes positioning accuracy with changing loads.

• SigmaWin+ Software: Wizard-driven setup with wiring validation.

• Versatile Connectivity: Supports EtherNet/IP, Modbus/TCP, USB, RS‑422.

Use Cases:

• High-speed CNC machinery

• Precision robotics and pick‑and‑place equipment

• Packaging systems requiring smooth, dynamic control
