Product Overview
Xinje DSCK‑20P4‑PTA Motor + DS5L‑21P5‑AS2 Servo Driver
A compact and robust AC servo system, combining a precise motor with an intelligent driver for versatile motion control. Ideal for applications like CNC machining, robotics, and automation systems requiring high-accuracy, responsive performance.
Product Specifications
DS5L‑21P5‑AS2 Servo Driver
-
Delivers power compatible with motors up to 2.1 kW (e.g., the paired DSCK‑20P4)
-
Accepts single-phase or three-phase AC input (200–240 V or 340–420 V)
-
Offers position, speed, and torque control modes
-
Supports pulse + direction, AB-phase, and CW/CCW inputs up to 200 kpps (open-collector) or 500 kpps (differential)
-
Compatible with 17‑bit/23‑bit PTA-type encoders
-
Features comprehensive protection: overvoltage, undervoltage, overcurrent, overspeed, overload, overheating, encoder fault, short circuit
-
Maintains stability under varying conditions:
-
Load variance (0–100%) → < ±0.01%
-
Voltage ±10% → ≈ 0.01%
-
Temperature ±25 °C → < ±0.1%
-
-
Equipped with RS‑232 (Modbus‑RTU) and optionally RS‑485, plus a 4-button LED display for easy programming
DSCK‑20P4‑PTA Servo Motor
-
High-precision servo motor designed to pair with the DS5L driver
-
Typically includes a built-in or connected PTA-type encoder for accurate feedback
-
Robust construction suitable for industrial environments
Mitsubishi Models for Comparison

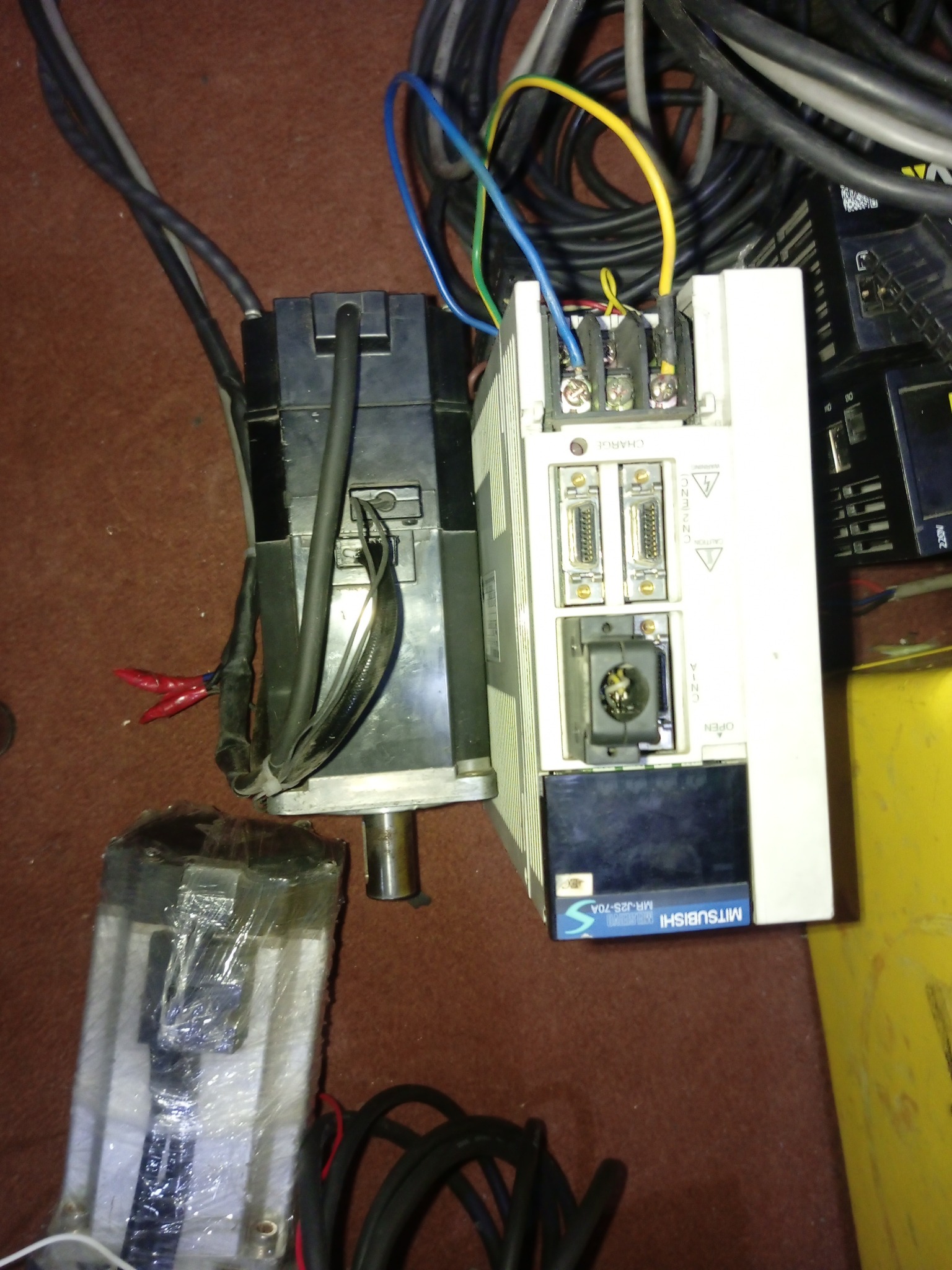

MR‑J2S‑70A (Mitsubishi)
-
Power: 0.75 kW, compatible with HG‑KFS73 motors
-
Input: 200–230 VAC, single or three-phase, with wide fluctuation tolerance (170–253 VAC) mitsubishielink.comCodienhaiau.com
-
Control: Sine-wave PWM with precise, energy-efficient motion control
-
Features: Built-in dynamic braking, overcurrent/voltage protection, thermal/encoder fault safeguards
-
Performance: Frequency response ≥ 550 Hz, high pulse input rates (up to 500 kpps differential), electronic gear ratios, and analog/digital control flexibility mitsubishielink.com
MR‑J3 Series (e.g., MR‑J3‑20A, MR‑J3‑70A, etc.)
-
Model variants from 0.2 kW (20A) to 0.7 kW (70A) and beyond Codienhaiau.comwoolars.com
-
Often paired with HF‑KP or HF‑SP servo motors (e.g., HF‑KP73 for 0.7 kW) tudonghoahuyhoang.comwoolars.com
-
Advanced features such as 18-bit encoder (up to 262,144 pulses/rev), SSCNET III support, and monitoring via MR Configurator2 software; optimized IP67 rating for rugged environments tudonghoahuyhoang.com
How to Use
-
Mounting
-
Securely mount the servo motor to your equipment.
-
Ensure the driver is installed in a ventilated, grounded enclosure.
-
-
Electrical Wiring
-
Connect motor power leads and encoder cable to the DS5L‑21P5‑AS2.
-
Supply the appropriate AC input (single or three-phase).
-
Wire control signals (pulse + dir, AB, etc.) and configure I/O as needed.
-
-
Parameter Configuration
-
Utilize the driver’s front panel or Modbus software to set control mode, encoder pulses, tune gains, and set motion parameters.
-
-
Tuning & Testing
-
Use auto-gain tuning, jog mode, and zero-point calibration features to optimize performance.
-
Test under load and check for error codes via panel display or Modbus logging.
-
-
Operational Monitoring
-
Monitor for fault conditions (overcurrent, encoder error, overheating).
-
Reset and recalibrate as needed.
-
Feature Comparison at a Glance
| Feature | Xinje DS5L System | Mitsubishi MR‑J2S‑70A / MR‑J3‑20A/70A |
|---|---|---|
| Power Rating | Up to ~2.1 kW | 0.2 kW (MR‑J3‑20A) to 0.75 kW (MR‑J2S‑70A) |
| Encoder Resolution | 17/23-bit PTA | Up to 18-bit (262k P/rev) |
| Control Modes | Position, Speed, Torque | Position, Speed, Torque |
| Tuning | Auto/manual via front panel or Modbus | Config via MR Configurator2/MMI |
| Protection Features | Extensive (voltage, current, encoder, etc.) | Similar robust protections |
| Communication | RS-232 Modbus-RTU, optional RS-485 | SSCNET III (MR‑J3), analog/digital inputs |
| Unique Advantages | Cost-effective, multi-mode, auto-tuning | High stability, brand reputation, advanced networking |
Summary for Website Copy
Xinje DSCK‑20P4‑PTA + DS5L‑21P5‑AS2
A high-performance servo system offering multi-mode operation, intuitive tuning, and industry-grade stability. Perfect for efficient, precise automation—backed by encoder feedback, protective features, and Modbus integration.
Mitsubishi MR‑J2S and MR‑J3 Series
Trusted servo drives with legacy reliability, exceptional resolution, and advanced network capabilities like SSCNET III. Ideal for environments where industrial-grade precision and communication are paramount.
