Xinje DSCK-20P4–PTA DS5L-21P5-AS2 AC servo motor and Driver DS5L-21P5-AS2 750w VGF85-5 Gear box worm Reducer gear

Xinje DSCK-20P4--PTA DS5L-21P5-AS2 AC servo motor and Driver DS5L-21P5-AS2 750w VGF85-5 Gear box worm Reducer gear in Lahore Pakistan

Here are product images showcasing the Xinje DS5L‑21P5‑PTA AC Servo Driver (1.5 kW) and a motor‑drive combo setup—useful for website visuals or spec sheets.

Product Details for Website

Xinje DSCK‑20P4‑PTA / DS5L‑21P5‑AS2 Servo System & VGF85‑5 Worm Gear Reducer Combo

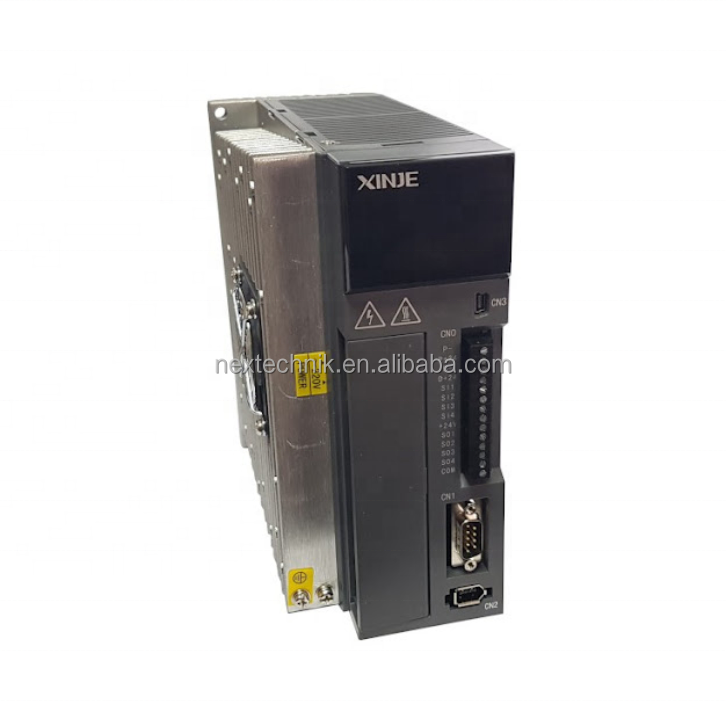

Xinje DS5L‑21P5‑PTA Servo Driver

• Series & Power: Part of the DS5L pulse-type servo driver family; the “21P5” denotes 1.5 kW power rating, with “PTA” indicating support for a communication encoder.en.xinje.com

• Control Modes: Seamlessly switch between position, speed, and torque control.en.xinje.com+1

• Input Formats: Accepts pulse+direction, AB-phase, or CW/CCW signals.en.xinje.com

• Encoder Feedback: Supports high-resolution 17‑bit/23‑bit communication encoders.en.xinje.com

• I/O Configuration: Since it's 1.5 kW (≥ 750 W), features 4 digital inputs (DI) and 4 digital outputs (DO).en.xinje.com+1

• Communication: RS‑232 interface (MODBUS‑RTU). Some models may also support RS‑485.en.xinje.com

• Protection Suite: Offers comprehensive safeguards—over/under voltage, overcurrent, overheating, overload, overspeed, encoder faults, oscillation, and regeneration issues.en.xinje.com+1

• Built-in Brake Resistor: Supports dynamic braking; optional external resistor can be added.en.xinje.com

• User Interface: 5‑digit LED display with four buttons for configuration.en.xinje.com

• Performance Stability:

  • Load variation (0–100%): ≤ ±0.01%

  • Voltage variation (±10%): ≤ ±0.01%

  • Ambient temperature change (±25 °C): ≤ ±0.1% (all at rated speed)en.xinje.com

• Environment & Build: Operates between −10 °C to +40 °C (non-condensing), suitable for industrial vibration/shock.en.xinje.com

VGF85‑5 Worm Gear Reducer (Planetary/VF Series)

• Though Xinje doesn’t produce these, the VGF85 is from a reputable planetary/worm reducer line, commonly matched with servo motors:

  • Size: 85 mm

  • Reduction ratios: cover a broad range (e.g., 3:1 to 100:1)

  • High precision: backlash ≤ 10 arcminplanetary-reducer.com

• In worm gearbox variants (VF/VF‑style), common characteristics include:

  • Aluminum housing, durable worm and bronze gear construction

  • Ratios between 7.5:1 to 100:1

  • Low noise (≤ 50 dB), high torque, long service life, wide mounting optionssdtgear.comhemureducer.com

How to Use (Installation & Setup)

Servo Driver Setup (Xinje DS5L‑21P5‑PTA)

1. Mount the driver in a dust-free cabinet, avoiding direct sunlight or corrosive atmospheres. Maintain at least 50 mm clearance above/below; consider adding cooling fans if needed.ManualsLib

2. Wire Main Power: Single or three-phase AC 200–240 V (based on model).

3. Connect Motor & Encoder: Hook up motor phases and encoder feedback lines per the driver documentation.

4. Control Inputs: Use compatible pulse format (pulse+direction, AB, CW/CCW); match the input voltage types (24 V open-collector or differential 5 V).

5. Communication: Connect via RS‑232 (or RS‑485 if available) for parameter setup.

6. Parameter Setting:

   • Use the front LED panel or XinjeServo Tuner software to configure control mode, tuning, speed, torque, and encoder parameters.

   • Perform inching (test run) followed by closed-loop jog for safe commissioning.ManualsLib

   • Use auto-tuning or fast adjustment/inertia estimation for optimal motion performance; configure notch filters to reduce resonance.Scribd

Worm Gear Reducer (VGF85‑5)

1. Mount the reducer directly onto the servo motor output shaft or standard IEC flange.

2. Ensure input/output alignment and proper lubrication.

3. Check gear ratio for desired speed/torque requirements.

4. Regular maintenance (greasing, shaft alignment) enhances reliability.

Feature Highlights for Website Copy

• Powerful & Precise: 1.5 kW AC servo with three-mode control, high-resolution feedback, and dynamic braking.

• Robust & Reliable: Industrial-grade design with full protection, solid performance across load/voltage/temperature variations.

• User‑Friendly Configuration: Easy setup via LEDs, buttons, or PC-based XinjeServo Tuner software; supports intuitive auto-tuning.

• Versatile Integration: Compatible with pulse systems and PLCs; optional worm gear reducer enhances torque and positioning control.

• Compact & Durable: Optimized for space, resilient under harsh environmental conditions and continuous operation.

Suggested Product Page Layout

Title:
Xinje DS5L‑21P5‑PTA 1.5 kW AC Servo Driver with VGF85‑5 Worm Gear Reducer

Key Specs:

• Servo Driver: 1.5 kW, AC 200–240 V, encoder support, LED interface, RS‑232 communication.

• Gear Reducer: 85 mm size, customizable ratios (e.g., 5:1), aluminum/bronze construction, low backlash.

Bullets:

• Flexible Control Modes: Position, speed, or torque—switch freely.

• High-Precision Feedback: 17‑bit/23‑bit encoders for accurate motion control.

• Excellent Stability: Minimal drift under load, voltage, or temperature shifts.

• Smart Tuning: Auto-tune, adaptive filtering, resonance suppression for smooth motion.

• Torque Boost: Worm gear reduction improves torque and positioning accuracy.

• Industrial Reliability: Rugged, compact build with extensive protection features.

Usage Summary:
"Perfect for CNC, robotics, and automation systems—just mount, wire power/motor/encoder, configure via panel or PC, and link the VGF85‑5 reducer for enhanced torque and control."
