Xinje DSCK-20P4–PTA DS5L-21P5-AS2 AC servo motor and Driver 750w worm Reducer gear

Xinje DSCK-20P4--PTA DS5L-21P5-AS2 AC servo motor and Driver 750w worm Reducer gear in Lahore Pakistan

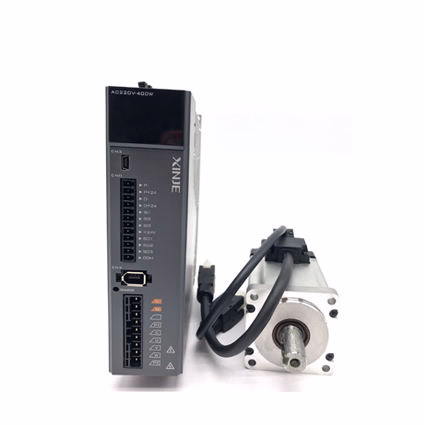

Here’s an image carousel showcasing the Xinje DS5L‑series servo motor‑driver bundles, including actuators similar to the DSCK‑20P4‑PTA / DS5L‑21P5‑AS2 models. These visuals offer a clear look at the components you’ll feature on your website.

Product Details: Xinje DSCK‑20P4‑PTA & DS5L‑21P5‑AS2 Servo System + 750W Worm Reducer

1. Xinje DS5L‑PTA Series Servo Driver

• Offers three control modes—position, speed, and torque—with seamless switching en.xinje.com.

• Handles power from 0.1 kW up to 2.6 kW, with all models supporting both single-phase (AC200–240 V) and three-phase (AC340–420 V) inputs en.xinje.com.

• I/O configurations:

  • Up to 750 W: 3 DI inputs + 3 DO outputs.

  • Above 750 W: 4 DI + 4 DO en.xinje.com.

• Input signal compatibility: Pulse + direction, AB-phase, or CW/CCW with up to 200 kpps open-collector or 500 kpps differential en.xinje.com+1.

• Encoder support: 17‑bit or 23‑bit communication encoders (PTA type) en.xinje.com.

• Protection features: Includes safeguards against over-/under-voltage, overcurrent, overload, overspeed, encoder faults, overheating, and more en.xinje.com.

• Stability specs:

  • Load variation (0–100 %): < ±0.01% at rated speed.

  • Voltage variation ±10%: 0.01%.

  • Temperature variation ±25 °C: < ±0.1% en.xinje.com.

• Communication & UI: RS232 (MODBUS‑RTU), optional RS485, plus a 5‑digit LED display with 4-button interface en.xinje.com+1.

2. DSCK‑20P4‑PTA Motor (Implied)

• Typically paired with the DS5L‑20P4‑PTA driver.

• Likely part of the MS5 series servo motor line, compatible with 0.75 kW to 3 kW drivers (e.g., DS5L‑21P5‑PTA) en.xinje.com.

• Expect high-precision encoder feedback and robust performance.

3. 750 W Worm or Planetary Gear Reducer

While there isn't a Xinje-branded worm reducer available, here are industry-standard features for 750 W gear reducers:

• Planetary Gearboxes:

  • High precision (≤5–8 arcmin backlash), compact, efficient (≥95 % at full load), low noise (≤58 dB), IP65-rated, maintenance-free with lifetime lubrication china-gearboxes.comcnhfgear.en.made-in-china.com.

  • Support high radial and axial loads with robust torsional rigidity china-gearboxes.comcnhfgear.en.made-in-china.com.

• Worm Gear Reducers:

  • Typically feature aluminum die-cast or cast-iron housings, self-locking capability, flexible mounting, efficient up to 65% per stage, low noise and vibration, aluminum or steel construction Blog of EVER-POWERzenexautomation.net.

How to Use: Installation & Operation

Setup Steps:

1. Mechanical Connection:

   • Mount the servo motor to its shaft: ensure alignment and secure fasteners.

   • Attach the gear reducer (worm or planetary) inline with the motor, maintaining proper torque specifications.

2. Electrical Wiring:

   • Power: Connect AC power (single or three-phase) to the DS5L driver according to voltage rating.

   • Motor & Encoder: Wire the motor phases (U, V, W) and encoder cable to appropriate terminals.

   • I/O Signals: Configure control signals (pulse + direction, etc.) and brake connections if applicable using BK settings ManualsLib+1.

3. Configuration:

   • Use the LED panel or Xinje Servo Tuner software (via RS232/RS485) for parameter setup PLCHMI UnlockManualsLib.

   • Set control mode (P0‑XX), tuning method (adaptive/manual), and gain parameters (P1, P2, etc.).

   • Define encoder pulses per revolution and electronic gear ratio for accurate positioning.

4. Tuning & Calibration:

   • Start with auto (rigid) gain tuning to quickly adapt to load inertia.

   • Use inching mode (F1‑00) for cautious jog testing; calibrate zero-point using F1‑02 if needed ManualsLib.

   • Adjust parameters to minimize resonance and optimize performance.

5. Running & Protection:

   • Monitor servo status via LEDs or software.

   • The driver will detect and report faults like overcurrent, encoder errors, or mechanical issues.

   • Reset via panel or Modbus if needed.

Recommended Website Description

Xinje DSCK‑20P4‑PTA Motor + DS5L‑21P5‑AS2 Driver with 750 W Gear Reducer

Elevate your motion control projects with this compact, high-performance servo package:

• Versatile Control Modes: Choose seamlessly between position, speed, or torque control for multi-industry flexibility.

• Responsive & Stable: Less than 0.01% fluctuation under variable load and voltage—a class of its own in precision.

• Full Protection Suite: Built-in guard against electrical and mechanical anomalies ensures reliability.

• High Resolution Feedback: 17/23-bit encoder support (PTA type) enables crisp positioning.

• Intuitive Setup: Onboard LED interface and Modbus connectivity make tuning a breeze.

• Precision Gear Integration: Includes a 750 W planetary or worm reducer—low backlash, high torque output, noiseless operation, and nearly maintenance-free.

• Ideal For: CNC machines, packaging equipment, robotics, precision automation, and more.

Key Benefits at a Glance
