Xinje DSCK-20P4–PTA DS5L-21P5-AS2 AC servo motor and Driver

Xinje DSCK-20P4--PTA DS5L-21P5-AS2 AC servo motor and Driver in Lahore Pakistan

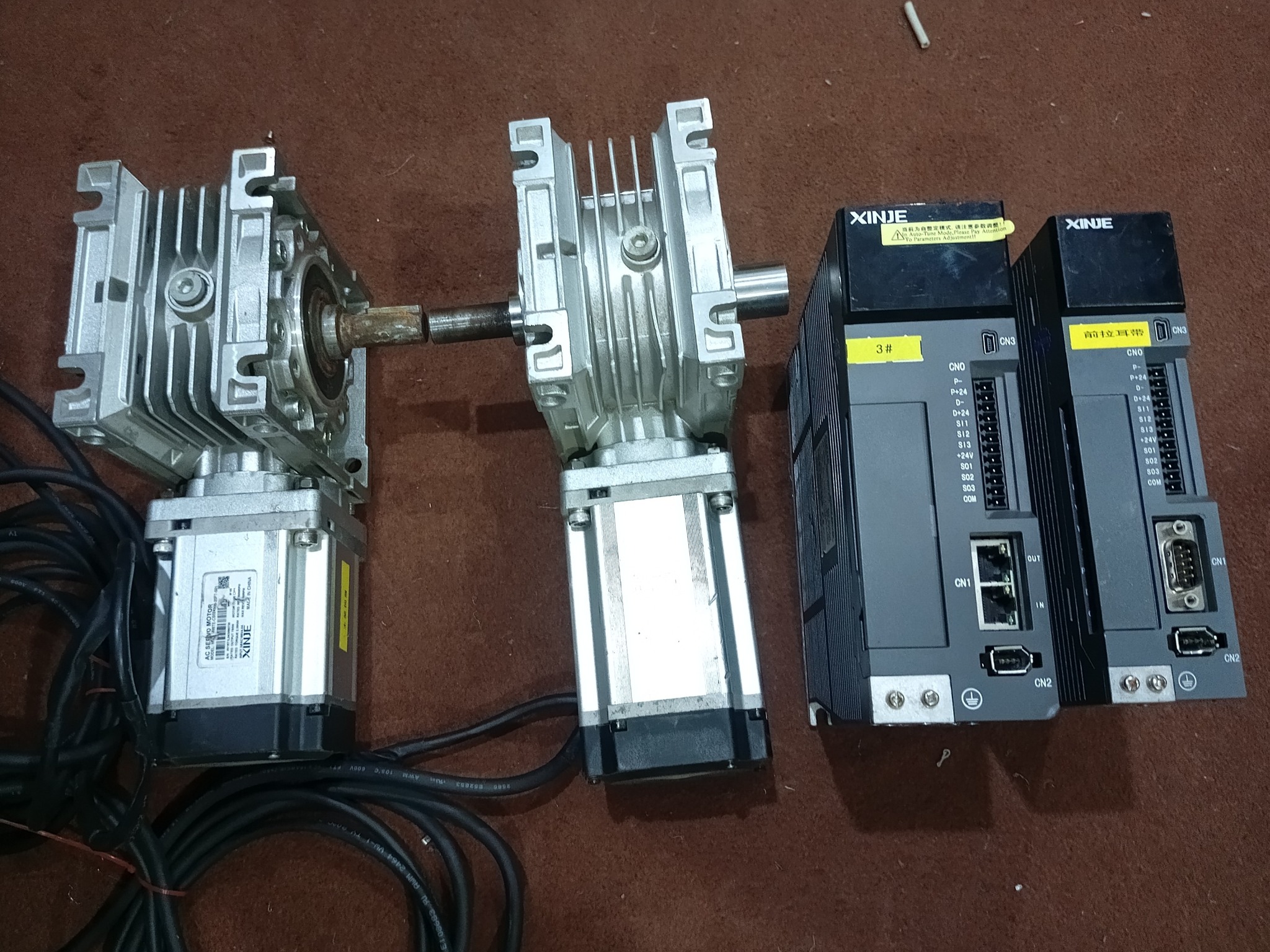

Here’s a visual glimpse of the Xinje DS5L‑21P5‑PTA servo motor paired with the DSCK‑20P4 (presumably a matched servo motor) and DS5L‑series driver setup. Now, let's break down the product details, features, and usage instructions—ideal for building a clear and compelling website description.

Product Overview: Xinje DSCK‑20P4 + DS5L‑21P5‑PTA Servo System

1. Xinje DS5L‑PTA Series Servo Driver (e.g., DS5L‑21P5‑PTA)

• Control Modes: Seamlessly switch between position, speed, and torque control.

• I/O Channels:

  • Up to 750 W: 3 DI (digital inputs) / 3 DO (digital outputs).

  • Above 750 W: 4 DI / 4 DO.en.xinje.com

• Input Options: Supports pulse + direction, AB-phase pulse, or CW/CCW signal formats.en.xinje.com

• Encoder Feedback: Compatible with 17-bit or 23-bit communication encoders (PTA type).en.xinje.com

• Power Specs:

  • Single/three-phase AC: 200–240 V or 340–420 V, 50/60 Hz.

• Robust Protection: Built-in safeguards against over-voltage, under-voltage, overheating, overload, overspeed, encoder errors, short circuits, and more.en.xinje.com

• Precision Stability:

  • Load variation (0–100%): < ±0.01% at rated speed.

  • Voltage variation ±10%: 0.01% stability.

  • Temperature variation (±25 °C): < ±0.1%.en.xinje.com

• Communication & Interface: RS‑232 (MODBUS‑RTU), optional RS‑485, LED display, and 4-button controls.en.xinje.com+1

2. Xinje DSCK‑20P4 (Likely a Matched Servo Motor)

While there's limited direct info under the label "DSCK‑20P4," Xinje commonly pairs DS5L series drivers with MS5 or MS6 series servo motors.
Example—MS5 series (0.2–0.4 kW):

• Rated power: 0.2 kW or 0.4 kW

• Rated torque: ~1.27 Nm, max torque: ~4.45 Nm

• Speed: Rated 3,000 RPM (up to 6,500 RPM)

• Encoder: 17-bit magnetic, IP65 protection, Class F insulation, operated at -15 to +40 °Cen.xinje.com

So, "DSCK‑20P4" likely follows similar specs if it aligns with DS5L‑20P4 driver arrangements.

Features & Highlights

• Versatile Control: Adaptable for position, velocity, or torque demands.

• Flexible Input Methods: Compatible with multiple pulse input types for enhanced integration.

• High Precision & Stability: Exceptional resilience to electrical or load fluctuations.

• Comprehensive Protection: Ensures both safety and longevity.

• Easy Configuration: On-board LED panels and manual tuning simplify setup.

• Reliable Feedback: High-resolution encoders ensure accurate motor control.

• Strong Communication: MODBUS RTU via RS-232/485 for seamless connectivity.

How to Use: Installation & Operation

1. Mounting & Wiring

   • Match driver and motor with correct brushes and power ratings.

   • Connect power (U, V, W) phase terminals carefully—ensure proper grounding.ManualsLib+1

   • Use separate cabling for power and signal lines, maintain ≥30 cm separation.

   • Encoder: Use shielded multi-core cable, maximum length ~20 m; signal input lines up to ~3 m.Scribd

2. Basic Startup

   • Power on; LEDs indicate driver status (Power, running, charging).ManualsLib+1

   • Confirm driver-motor code alignment and safe connections.ManualsLib

3. Configuration

   • Access driver parameters via front panel or manual‑based tuning (auto/manual).ManualsLib+1

   • Set control mode (P0‑XX parameters for position, speed, or torque).

   • Use “Rigid Gain Adjustment” and vibration suppression filters to counter mechanical resonance.ManualsLib

4. Operation Modes

   • Jog/Test Mode (F1‑00): For cautious manual movement.

   • Zero-Point Calibration (F1‑02): Calibrates current position.ManualsLib

   • Auto Tuning: Set inertia and responsiveness—choose among soft, fast, or adaptive modes.ManualsLib‹

5. Protection & Alarms

   • Driver handles overcurrent, overheating, overspeed, encoder faults, etc.en.xinje.com

   • Monitor error codes; most alerts can be reset via panel or Modbus.ManualsLib

6. Using Brake Mechanism

   • Use driver’s brake signal (BK) wiring and adjust settings (P5‑07/P5‑09) for controlled transitions.ManualsLib

Sample Website Description

Introducing the Xinje DSCK‑20P4 / DS5L‑21P5‑PTA Servo System
Achieve ultra-precise motion control with this integrated servo motor + driver combo. Transition seamlessly between position, speed, and torque modes while enjoying robust load stability and electrical protection. Powered by high-resolution encoders and MODBUS communication, this system delivers reliable performance tailored for CNC machines, robotics, packaging, and beyond. Equipped with auto/manual tuning and vibration suppression features, your setup becomes not only accurate—but optimized.

Key Benefits at a Glance:

• Multi-mode flexibility (Position/Speed/Torque)

• Pulse input compatibility (pulse+dir, AB, CW/CCW)

• High-resolution encoder feedback

• Built-in protection: Overvoltage, overcurrent, encoder error, etc.

• Fine control under varying conditions

• Easy-to-use panel with adaptive tuning and diagnostics
