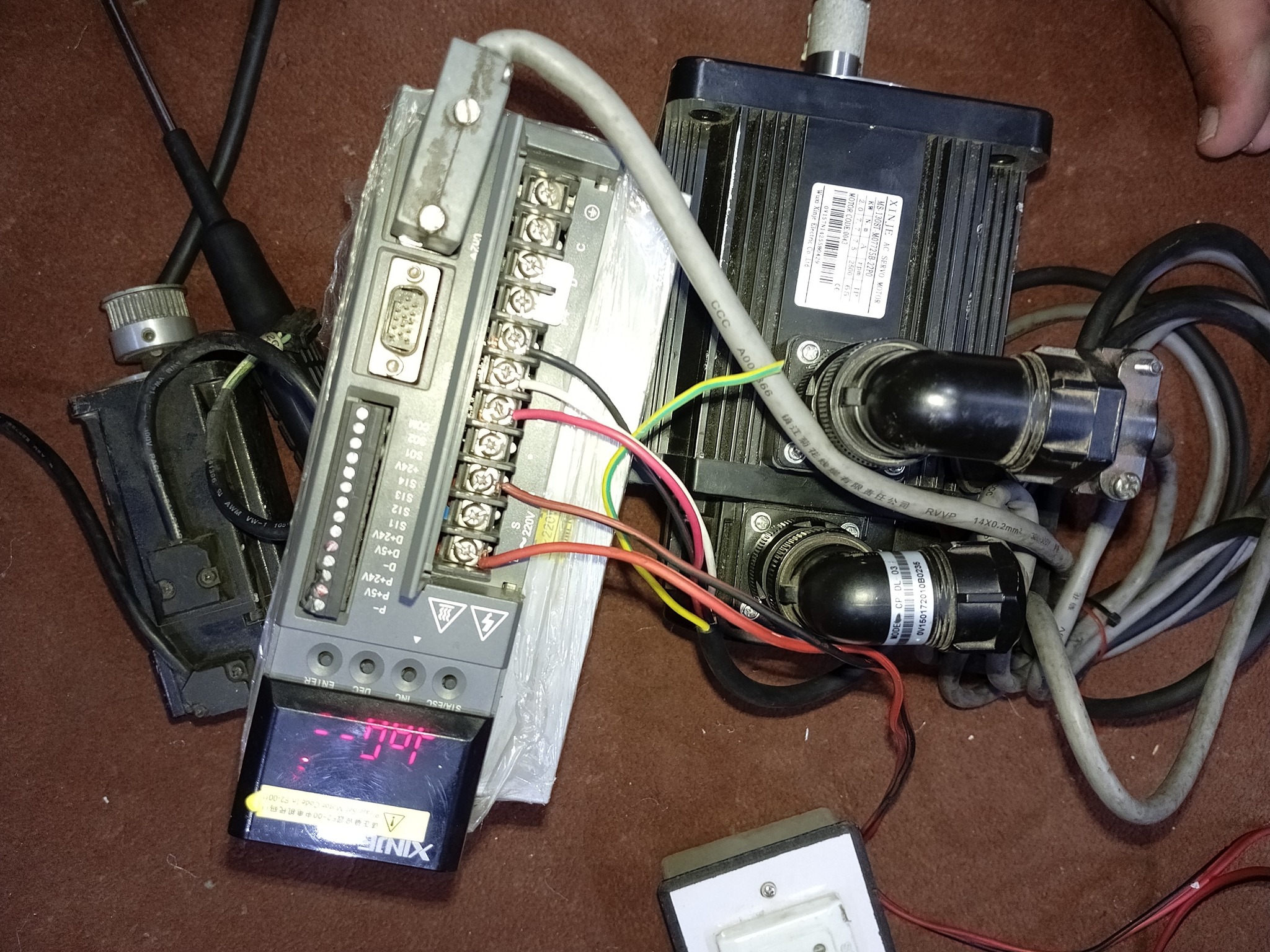

Xinje DSCK-20P4–PTA DS5L-21P5-AS2 AC servo motor and Driver 1.5kw

Xinje DSCK-20P4--PTA DS5L-21P5-AS2 AC servo motor and Driver 1.5kw in Lahore Pakistan

Here’s a detailed, SEO-ready product description for your website listing of the Xinje DSCK-20P4--PTA PLC, DS5L-21P5-AS2 AC Servo Motor & Driver (1.5kW) system:

🛠️ Product Name:

Xinje DSCK-20P4--PTA PLC + DS5L-21P5-AS2 AC Servo Motor & Driver (1.5kW)

📦 Product Overview:

The Xinje DSCK-20P4--PTA is a high-performance pulse-output PLC controller designed for advanced motion control applications. Paired with the Xinje DS5L-21P5-AS2 1.5kW AC servo motor and driver, this solution delivers fast, accurate, and stable motion control for industrial automation systems. Ideal for CNC machines, robotics, conveyor systems, and packaging lines.

⚙️ Product Components:

🔹 1. Xinje DSCK-20P4--PTA PLC Controller

• Pulse Output: High-speed output for precise motion control

• Communication: Supports Modbus RTU via RS232/RS485

• Programming Software: Compatible with Xinje XCPPro

• I/O Ports: Expandable digital and analog I/Os

• Special Features: Real-time control, positioning commands, and integrated timers/counters

🔹 2. Xinje DS5L-21P5-AS2 AC Servo Driver

• Power Rating: 1.5kW

• Control Modes: Position / Speed / Torque

• Encoder Support: 17-bit or 23-bit communication encoder

• Input Signal Types: Pulse+Direction, CW/CCW, AB phase (differential and open-collector)

• Digital I/O: 4 DI / 4 DO

• Display: 5-digit LED with 4 buttons for setup and diagnostics

• Protections: Over-voltage, over-current, encoder error, overload, overheating, regeneration error

🔹 3. AC Servo Motor (750W - 1.5kW Compatible)

• Feedback: Communication encoder for closed-loop accuracy

• Speed Range: Up to 3000 rpm

• Mounting: IEC flange or customized

• Applications: Motion control, high-precision machines, automated production lines

🛠️ How to Use / Installation Guide:

➤ Wiring & Setup

1. Install the PLC in a control cabinet with proper grounding.

2. Connect pulse outputs from the DSCK-20P4--PTA to the servo drive’s pulse input terminals (use shielded cables).

3. Wire the motor to the driver (U, V, W phases), and connect the encoder feedback.

4. Power Up using a suitable 220V AC supply.

5. Set Parameters using front-panel buttons or Xinje software:

   • Choose control mode (position/speed/torque)

   • Input limits, speed references, acceleration/deceleration

6. Program the PLC using Xinje XCPPro:

   • Send motion commands (Pulse output, Enable, Alarm Reset, Origin return, etc.)

7. Test & Tune using jog function and software tuning tools (e.g., inertia auto-detect, notch filters)

🌟 Key Features & Advantages:

• ✅ High-Precision Motion: 17/23-bit encoder feedback and high-frequency pulse control for accurate positioning

• ✅ Flexible Control: Switch between position, speed, and torque modes

• ✅ Smart Protection System: Built-in alarms for voltage, temperature, over-current, and encoder faults

• ✅ User-Friendly: Easy parameter configuration via LED panel or PC

• ✅ Integrated System: Smooth communication between Xinje PLC and servo via pulse signals

• ✅ Expandable: Add I/Os and analog modules to the PLC for more complex applications

• ✅ Industrial Grade: Stable performance in harsh environments (−10°C to +40°C, vibration resistant)

🏭 Typical Applications:

• CNC machines

• Conveyor belts

• Pick-and-place robots

• Packaging machinery

• Textile equipment

• Automated inspection lines

📊 Technical Specifications Summary:

🛒 Why Choose This Product?

This Xinje PLC + Servo combo is an affordable, scalable, and precise motion control solution ideal for industrial automation integrators and OEMs. Its seamless PLC-servo communication, robust design, and easy programmability make it perfect for small-to-medium automation projects with tight budgets and high accuracy demands.
