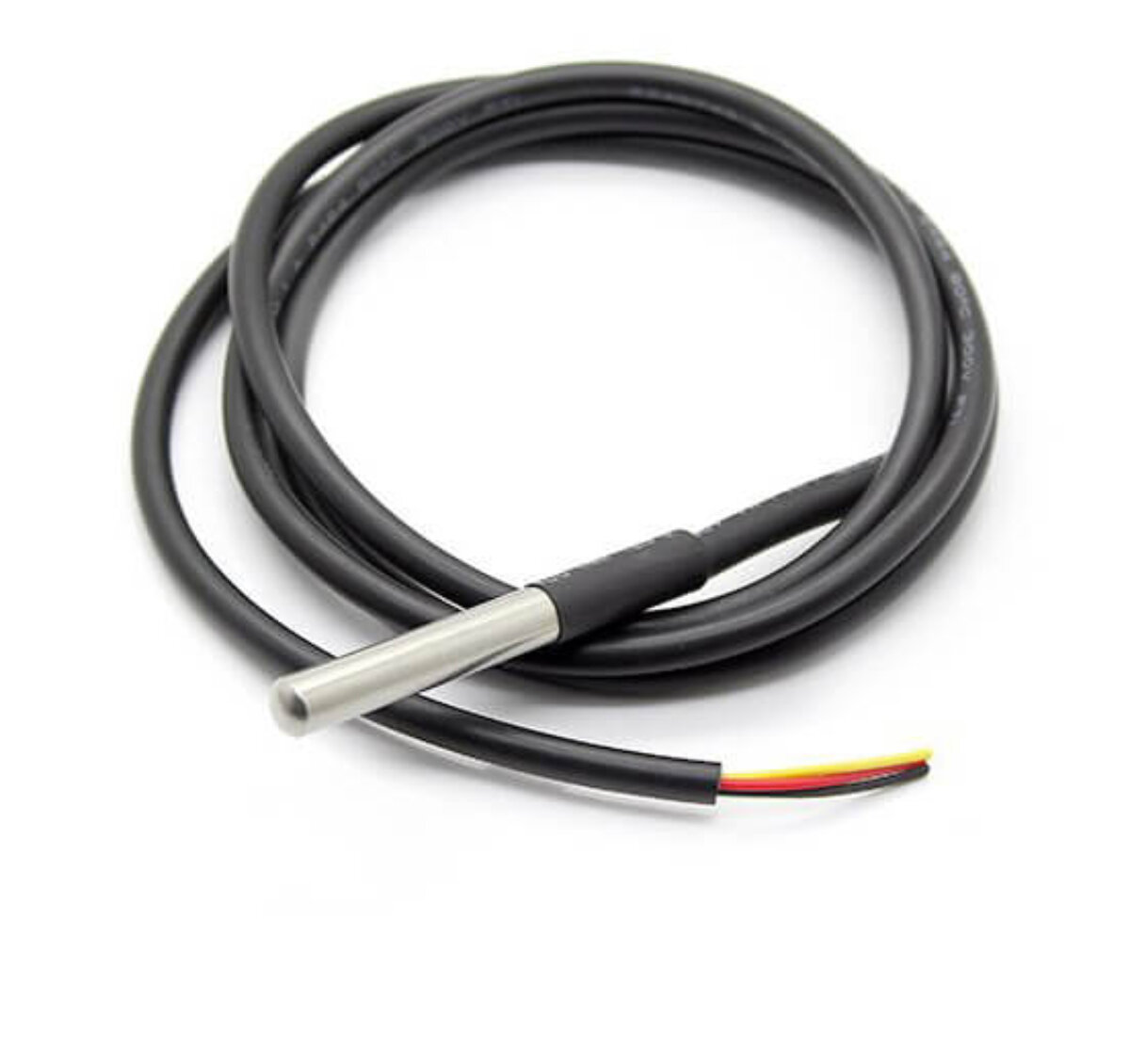

Waterproof DS18B20 Temperature Sensor

The Waterproof DS18B20 is a highly accurate digital temperature sensor that provides precise temperature readings over a wide range of applications. Featuring a stainless steel waterproof casing, this sensor is ideal for use in environments where protection from moisture is essential, such as in outdoor, industrial, or aquatic settings. The 1-Wire interface technology makes it easy to interface with microcontrollers like Arduino or Raspberry Pi for seamless integration into your projects or systems.

Product Details:

Model: Waterproof DS18B20 Temperature Sensor
Sensor Type: Digital Temperature Sensor
Temperature Range: -55°C to +125°C
Accuracy: ±0.5°C (from -10°C to +85°C)
Resolution: 9 to 12-bit (Programmable)
Interface: 1-Wire Bus
Power Supply: 3.0V to 5.5V DC
Power Consumption: 1mA (Active), <1µA (Idle)
Output Type: Digital (1-Wire)
Material: Stainless Steel Waterproof Enclosure
Cable Length: 1 meter (Standard, customizable)
IP Rating: IP67 (Waterproof and Dustproof)
Dimensions: 6mm diameter x 30mm length (probe)
Connection Type: 3-Wire (VCC, GND, Data)
Operating Temperature: -55°C to +125°C
Storage Temperature: -55°C to +125°C
Applications: Water tanks, aquariums, industrial monitoring, HVAC systems, outdoor weather stations, and more.

Product Features:

1. Wide Temperature Range:
   The DS18B20 provides temperature measurements between -55°C and +125°C, making it suitable for a variety of applications requiring a broad range of temperature sensing.

2. High Accuracy:
   With an accuracy of ±0.5°C between -10°C and +85°C, the DS18B20 ensures precise temperature readings. For most applications, this level of accuracy is sufficient for effective monitoring.

3. Waterproof Stainless Steel Enclosure:
   The sensor is housed in a stainless steel probe with an IP67 rating, which makes it fully waterproof and resistant to dirt and dust, ideal for outdoor and underwater use. It can be submerged in water or used in wet environments without any issues.

4. 1-Wire Digital Communication:
   The 1-Wire communication protocol allows for easy interfacing with microcontrollers, such as Arduino, Raspberry Pi, or other embedded systems. Multiple sensors can be connected to the same data pin, simplifying the wiring process.

5. Low Power Consumption:
   The sensor operates with very low power consumption. When idle, it draws less than 1µA, making it an ideal choice for battery-powered projects and remote sensing applications.

6. Programmable Resolution:
   The DS18B20 allows you to configure the resolution of the temperature readings from 9-bit to 12-bit, allowing you to trade off speed for precision depending on your application.

7. Easy Integration:
   The sensor is easy to interface with microcontrollers and is commonly used in Arduino and Raspberry Pi projects. Libraries for these platforms are widely available, making setup straightforward.

8. Durable and Robust:
   The stainless steel housing and waterproof design ensure that the sensor can withstand harsh environments, making it suitable for both indoor and outdoor applications.

How to Use the Waterproof DS18B20 Temperature Sensor:

1. Wiring the Sensor:
   The DS18B20 uses 3 wires for connection:

   • VCC (Power): Connect to the 3.0V to 5.5V DC power supply (commonly 5V).

   • GND (Ground): Connect to ground.

   • Data: Connect the data line to a digital input on your microcontroller (e.g., GPIO pin on Raspberry Pi or Arduino).

2. Connecting Multiple Sensors:
   Since the DS18B20 uses the 1-Wire protocol, you can easily connect multiple DS18B20 sensors to a single data line. Each sensor has a unique 64-bit serial code, allowing the microcontroller to differentiate between sensors.

3. Installing the Sensor:

   • Outdoor/Water Applications: For water-based applications (like aquariums or water tanks), you can submerge the sensor into water. Make sure the probe is fully submerged in the medium you are measuring (water, air, or soil).

   • Non-Water Applications: For industrial or environmental monitoring, the sensor can be mounted onto walls, equipment, or enclosures where temperature measurements are needed.

   • Positioning: Ensure the sensor is positioned in a way that accurately reflects the temperature of the area or material being monitored. For example, ensure it is placed away from heat sources that may skew readings.

4. Interfacing with Microcontroller (e.g., Arduino):
   To read data from the sensor, you will need to use libraries such as OneWire and DallasTemperature (for Arduino) or w1thermsensor (for Raspberry Pi). These libraries allow easy interaction with the sensor to fetch temperature readings.

   Example Code for Arduino:

   #include <OneWire.h>
   #include <DallasTemperature.h>

   // Pin where the DS18B20 is connected
   #define ONE_WIRE_BUS 2

   OneWire oneWire(ONE_WIRE_BUS);
   DallasTemperature sensors(&oneWire);

   void setup() {
   Serial.begin(9600);
   sensors.begin();
   }

   void loop() {
sensors.requestTemperatures();
float temperatureC = sensors.getTempCByIndex(0);
Serial.print("Temperature: ");
Serial.print(temperatureC);
Serial.println("°C");
delay(1000);
}


5. Calibration and Accuracy:

   • The DS18B20 does not require calibration but can be configured to provide different resolutions (9-bit, 10-bit, 11-bit, 12-bit) based on the level of accuracy you need. The higher the resolution, the longer it takes to get a temperature reading.

   • For most applications, 12-bit resolution provides a good balance between accuracy and speed.

Applications of the Waterproof DS18B20 Temperature Sensor:

1. Aquariums:
   Used to monitor the temperature of aquariums or fish tanks, ensuring optimal conditions for aquatic life.

2. Water Tanks and Pipes:
   Ideal for temperature monitoring in water tanks, pipes, or outdoor reservoirs to ensure safe and efficient water management.

3. HVAC Systems:
   The sensor can be used in HVAC systems to measure the temperature of heating and cooling units, helping with system efficiency and energy management.

4. Weather Stations:
   The DS18B20 is commonly used in outdoor weather stations for temperature measurement, allowing for precise environmental data collection.

5. Soil Temperature Monitoring:
   In agricultural systems, the DS18B20 is used to monitor soil temperature, helping with crop management and irrigation systems.

6. Industrial Monitoring:
   The sensor is used in various industrial applications, including cooling systems, temperature-sensitive storage, and temperature regulation in machinery.

7. Battery-Powered Devices:
   Due to its low power consumption, it’s ideal for battery-powered or solar-powered devices, where power efficiency is critical.

Advantages of the Waterproof DS18B20 Temperature Sensor:

• Waterproof and Durable: The IP67 rating ensures that it works in harsh conditions, including submerged in water.

• Accurate and Reliable: Provides ±0.5°C accuracy within the -10°C to 85°C range, making it reliable for most standard temperature monitoring needs.

• Easy Integration: Simple 1-Wire interface with commonly used platforms like Arduino and Raspberry Pi, making it a go-to choice for DIY projects and industrial applications.

• Low Power Consumption: Perfect for low-power applications where battery life is critical.

• Multiple Sensor Support: You can connect multiple sensors to the same data line, simplifying complex systems where temperature needs to be monitored in multiple locations.

Conclusion:

The Waterproof DS18B20 Temperature Sensor is an excellent choice for a wide range of applications that require precise temperature monitoring in challenging environments. Its waterproof design, wide temperature range, and low power consumption make it ideal for outdoor, industrial, and aquatic projects. Whether you're building a weather station, aquarium, or industrial monitoring system, the DS18B20 provides reliable and accurate temperature readings at a cost-effective price.
