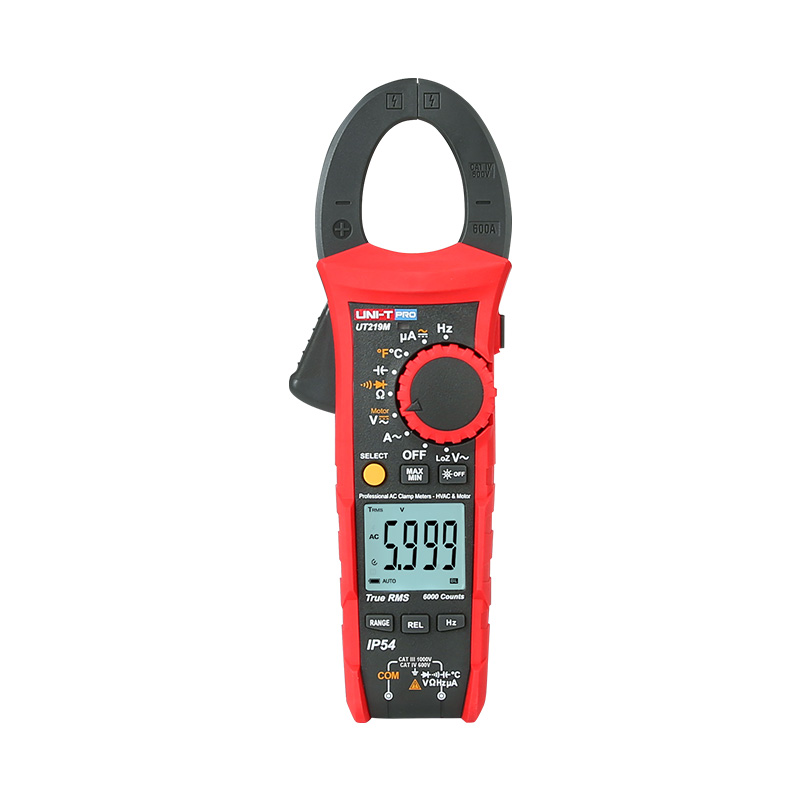

UT219 Series Professional Clamp Meters

UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

Models in UT219 series: UT219E, UT219M, UT219DS

Specifications of UT219 Series Professional Clamp Meters

Specifications Range UT219E UT219M UT219DS
AC current (A) 600A ±(1.8%+6) ±(1.8%+6) ±(1.8%+6)
DC current (A) 600A ±(1.8%+6)
AC voltage (V) 1000V ±(1%+6) ±(1%+6) ±(1%+6)
DC voltage (V) 1000V ±(0.6%+3) ±(0.6%+3) ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6) ±(2.5%+6) ±(2.5%+6)
Resistance (Ω) 60MΩ ±(1%+3) ±(1%+3) ±(1%+3)
Capacitance (F) 60mF ±(4%+7) ±(4%+7) ±(4%+7)
Frequency (Hz) 10Hz~10MHz ±(0.1%+6)
600Hz~40MHz ±(0.1%+5) ±(0.1%+6)
Duty cycle 0.1%~99.9% ±(2.6%+7) ±(2.6%+7)
Temperature -40~1000℃ ±(2%+5℃) ±(2%+5℃)
-40~1832℉ ±(2%+9℉) ±(2%+9℉)
Features
Display count 6000 6000 6000
Auto/Manual range √ √ √
Jaw opening 33mm 33mm 33mm
True RMS √ √ √
AC current frequency response 40Hz~400Hz 40Hz~400Hz 40Hz~400Hz
AC voltage frequency response 40Hz~400Hz 40Hz~400Hz 40Hz~1kHz
3-phase motor sequence test 600V √ √
Low pass filter 1kHz, 3db attenuation √
V+A displays voltage and current at the same time √
Diode test 3V 3V 3V
Measurement sampling rate 3 times/s 3 times/s 5 times/s
Analog bar sampling rate 10 times/s 20 times/s
Analog bar 31 segment 31 segment
Display interface (LCD) Single Single Dual
Auto power off/MAX/MIN √ √ √
Low battery indication √ √ √
Data hold (H)/Relative mode (REL) √ √ √
ZERO mode √ √ √
Function selection (SELECT) √ √ √
Auto backlight/2m drop test √ √ √
IP rating IP54 IP54 IP54
Input impedance ≥10MΩ √ √ √
General Characterisitics
Power 1.5V battery (R03) x 3
Display 35mm x 31mm
Product color Red and grey
Product net weight 310g
Product size 234.6mm x 82mm x 47mm
Standard accessories Test leads, batteries, carrying bag, PC software CD, point contact temperature probe (UT219M/UT219DS)
Standard individual packing Gift box, blister, English manual
Standard quantity per carton 10pcs
Standard carton measurement 490mm x 295mm x 330mm
Standard carton gross weight UT219E: 8kg; UT219M/UT219DS: 8.2kg
