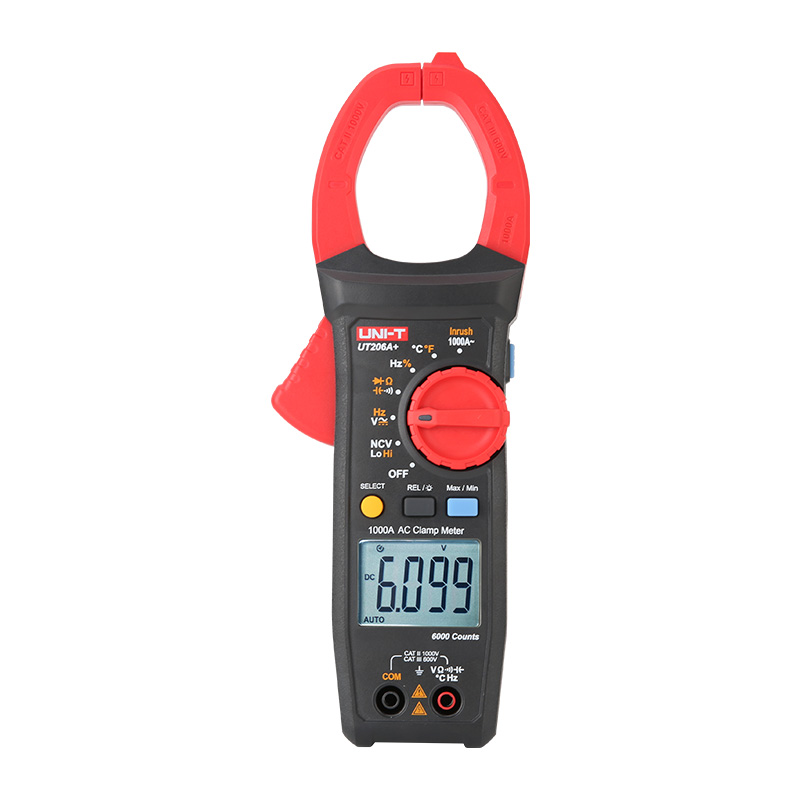

UT205A+/UT206A+ 1000A AC Clamp Meters

UT205A+/UT206A+ 1000A AC clamp meters are reliable and portable tools for electronics and electrical maintenance. Featuring a lightweight and slim design, and backlight for working in dark environments. These meters also feature duty cycle, NCV, MAX/MIN, and Inrush current measurement.

Specifications of UT205A+/UT206A+ 1000A Digital Clamp Meters

Specifications Range UT205A+ UT206A+
AC current (A) 1000A ±(1.5%+5) ±(1.5%+5)
Inrush current (A) 600A ±(5%+10)
AC voltage (V) 1000V ±(1.0%＋2) ±(1.0%＋2)
ACV frequency (Hz) 10Hz～10kHz ±(1.0%＋5) ±(1.0%＋5)
DC voltage (V) 1000V ±(0.7%＋3) ±(0.7%＋3)
Resistance (Ω) 40MΩ ±(0.8%+2)
60MΩ ±(0.8%+2)
Capacitance (F) 40mF ±(4%+5)
60mF ±(4%+5)
Frequency (Hz) 10.00Hz～10.00MHz ±(0.1%+4) ±(0.1%+4)
Temperature (℃/℉) –40℃～1000℃/–40℉～1832℉ ±4℃/±5℉
Features
Display count 4099 6099
Jaw opening 45mm 45mm
Auto range √ √
Duty cycle √ √
NCV √
Diode test √ √
Continuity √ √
Low battery indication ＜2.5V approximately √ √
Data hold √ √
Auto power off  Approximately 15 minutes √ √
Max/Min √ √
Flashlight √ √
Backlight √ √
Safety rating CAT II 1000V/CAT III 600V √ √
General Characteristics
Power AAA 1.5V x 2
Standard accessories Test leads, batteries, temperature probe(UT206A+), English manual
Product color Red+Gray
Product net weight 235g (Including batteries)
Product size 242×76.5x52mm
Standard individual packing Gift box，carrying bag
Standard quantity per carton 20 pcs
Standard carton measurement 420*290*280mm
