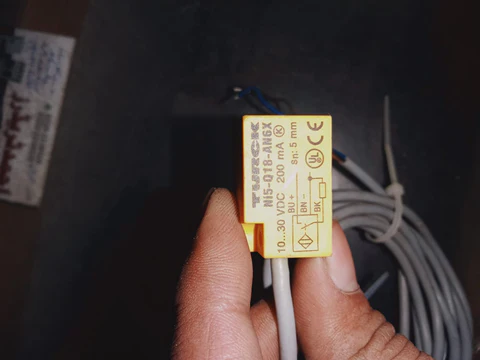

Turck NI5‑Q18‑AN6X Inductive Proximity Sensor

Product Overview

The NI5‑Q18‑AN6X is a compact, rectangular inductive proximity sensor with a 5 mm sensing range, built for reliable detection of metallic targets in industrial environments. This 3‑wire NPN (Normally Open) sensor delivers fast switching, robust protection, and straightforward integration—ideal for automation and machine positioning applications. turck.deramcoi.comPowermatic Associates

Technical Specifications

• Detection Range: 5 mm rated switching distance turck.deramcoi.com

• Construction Size: Rectangular Q18 body, 29 × 18 × 18 mm turck.dePowermatic Associates

• Output Type: NPN, Normally Open (NO) digital output ramcoi.comPowermatic Associates

• Supply Voltage: 10–30 V DC (12/24 V nominal) ramcoi.comPowermatic Associates

• Switching Frequency: Up to 500 Hz ramcoi.comPowermatic Associates

• Response Time: ~8 ms (0.008 s) ramcoi.com

• Current Consumption: ~15 mA, no-load current ramcoi.com

• Load Capacity: Up to 200 mA ramcoi.com

• Connection: Pre-wired with 2 m cable (flying leads) ramcoi.comPowermatic Associates

• Indicator: Integrated yellow LED for status monitoring ramcoi.com

• Protection & Durability:

  • Short‑circuit pulsed protection

  • Overload protection

  • Reverse‑polarity protection

  • IP67-rated enclosure for dust and water resistance ramcoi.comPowermatic Associates

• Operating Temperature: –25 °C to +70 °C ramcoi.comPowermatic Associates

• Weight: Approximately 67 g turck.dePowermatic Associates

Key Features

• Precise Metal Detection: 5 mm sensing distance ensures accurate detection even in compact applications.

• LED Feedback: Built-in yellow LED instantly indicates operational status, simplifying diagnostics.

• High Switching Speed: With up to 500 Hz switching (approx. 8 ms response), ideal for fast-moving targets.

• Robust Housing: Glass fiber-reinforced PBT protects against physical and environmental stress.

• Industrial-Grade Protection: Built-in safety circuits and IP67 rating ensure reliability in harsh conditions.

• Easy Installation: Compact form factor and an integrated 2 m cable make setup quick and hassle-free.

Applications

• Position tracking: Ideal for detecting metal parts in manufacturing lines.

• Automation systems: Precise placement and presence detection in robotics or conveyor automation.

• Machine tooling: Serves as a non-contact limit switch or trigger sensor in CNC machines, etc.

• Packaging equipment: Detects product alignment or component presence during packaging.

• General industrial sensing: Effective for monitoring machine states or detecting metal objects in tight spaces.

How to Use

1. Mounting

   • Secure the sensor through the two mounting holes.

   • Position the metal target facing the sensor’s active surface and within a 5 mm range.

2. Wiring

   • Connect the brown wire to V+ (10–30 V DC).

   • Connect the blue wire to 0 V (ground).

   • Connect the black wire to your PLC or controller input (for NPN output switching).

3. Operation

   • Power up the sensor; bring a metal object within range.

   • The LED lights when detecting a target, and the output signal toggles accordingly.

4. Testing & Adjustment

   • Verify alignment and proper sensing behavior.

   • Check LED and confirm the output contacts the PLC/controller as expected.

5. Safety & Maintenance

   • Avoid exceeding rated voltage/current specs.

   • Keep the sensing face clear of debris.

   • Periodically check mounting and cable integrity.
