Temperature Sensor Probe 3 Wire Temperature Controller

Temperature Sensor Probe 3 Wire Temperature Controller in Lahore Pakistan

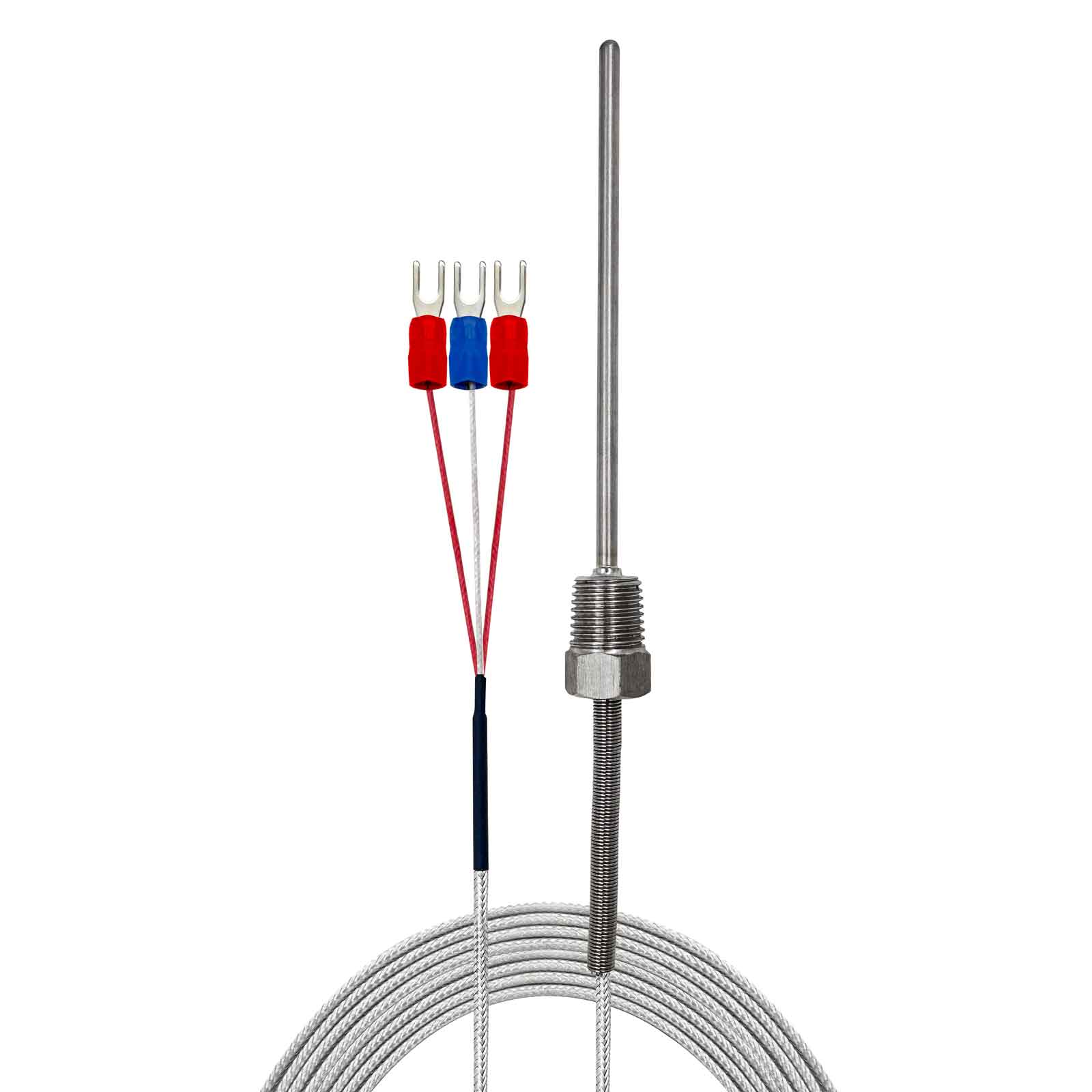

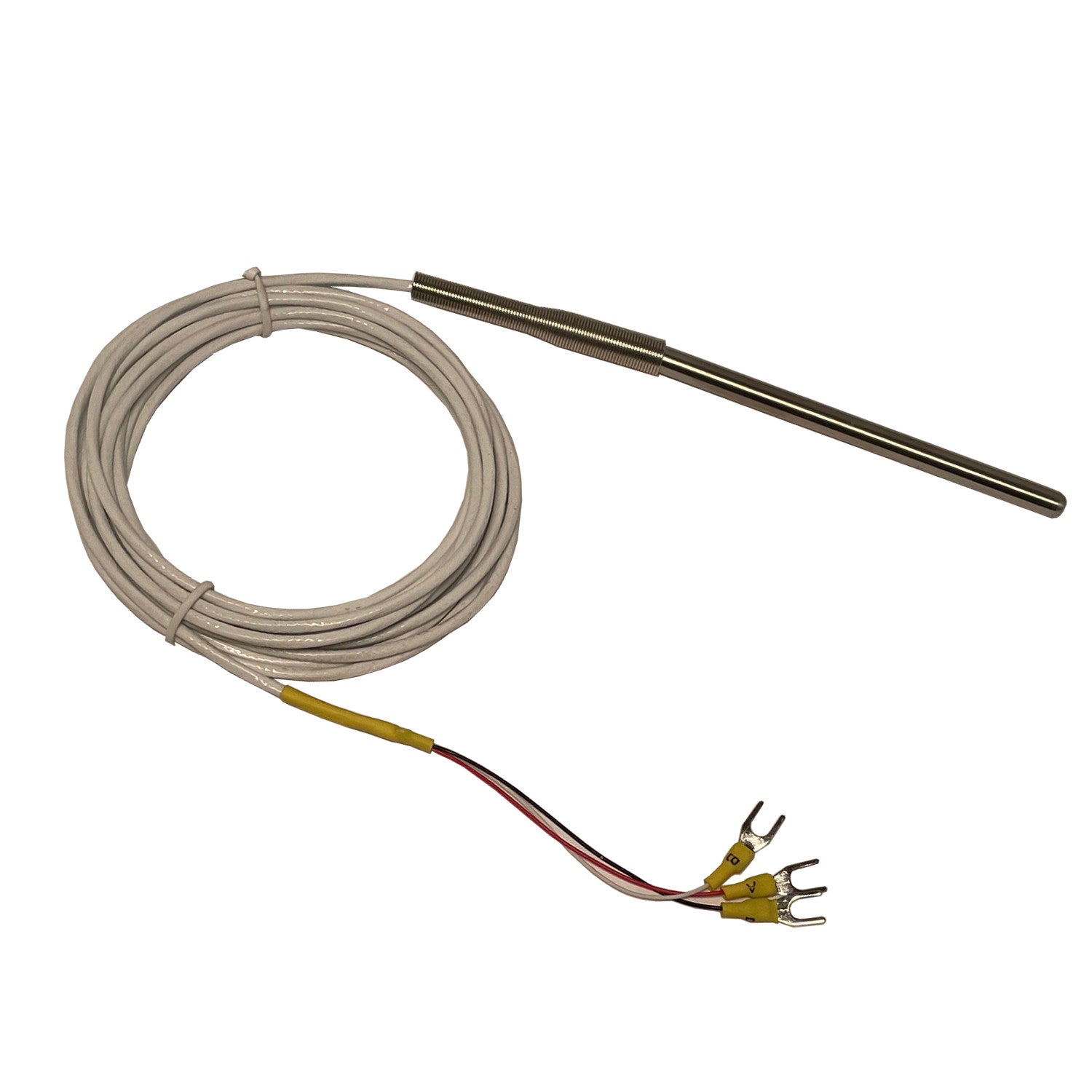

Here are some diverse visuals of 3‑wire temperature sensor probes, typically used with temperature controllers—stainless steel probes with PT100 RTD elements and three‑wire cables for precise temperature measurement.

Product Overview

A 3‑wire temperature sensor probe (often RTD, such as PT100) is a sensing device designed to accurately measure temperature when paired with a temperature controller. The three-wire configuration compensates for the resistance of lead wires, resulting in higher accuracy than the basic two-wire type. www.jakar.czthermocouple-pt100atex.com

Key Specifications

Drawing from industry examples:

• Sensing Element: PT100 platinum RTD—100 Ω at 0 °C, with Class A or B accuracy eg.rsdelivers.combh.rsdelivers.comwepower-electronic.com.

• Configuration: Three-wire design enables lead resistance compensation for improved precision www.jakar.czthermocouple-pt100atex.com.

• Probe / Sheath Material:

  • Stainless steel (e.g., 304 or 316L) for durability eg.rsdelivers.combh.rsdelivers.comwepower-electronic.comKohinoor & Co.

• Probe Dimensions: Common diameters are ~4–8 mm, length varies (e.g., 30 mm, 100 mm) wepower-electronic.combh.rsdelivers.comKohinoor & Co.

• Cable & Insulation: PTFE, PFA, or silicone insulated leads—designed for flexibility and resistance to heat and chemicals bh.rsdelivers.comwepower-electronic.com.

• Temperature Range: Typically from –50 °C up to +250 °C or higher for industrial-grade units; some models cover up to +500 °C Kohinoor & Co+1bh.rsdelivers.comwepower-electronic.com.

• Protection & Enclosure: Options include IP-rated terminal heads (e.g., KNE or aluminium for harsh environments) Kohinoor & Co+1.

• Accuracy Classes: IEC 60751 Class A or B accuracy levels, depending on model bh.rsdelivers.comeg.rsdelivers.comwepower-electronic.com.

How to Use & Installation Guide

1. Mounting
   Insert the probe into the process (liquid, air, surface) via thermowell, thread, or terminal head. Choose based on environmental protection needs (e.g., IP-rated heads for harsh conditions) Kohinoor & Co+1.

2. Wiring to Temperature Controller

   • Connect the three wires to the controller's RTD input; typically, two wires on one side of the RTD element and one on the other.

   • The controller uses all three inputs to cancel lead resistance effects automatically www.jakar.czthermocouple-pt100atex.com.

3. Configuration

   • Set the controller to “3‑wire RTD PT100” mode.

   • Input the correct probe class (A or B) if applicable for enhanced measurement accuracy.

4. Calibration & Testing

   • Validate the sensor’s readings with a known reference (e.g., ice bath, dry block calibrator).

   • For industrial use, occasional recalibration is recommended.

5. Maintenance

   • Keep the probe clean.

   • Avoid mechanical stress on the cable and ensure proper sealing at connections.

Feature Benefits

Website Presentation Suggestions

Page Title
3‑Wire PT100 Temperature Sensor Probe for Controllers – High Accuracy, Industrial Grade

Key Features (Bullets):

• Accurate RTD measurement: PT100 (100 Ω at 0 °C), Class A/B

• Three-wire compensation for precise readings

• Stainless steel sheath (Ø4–8 mm, customizable length)

• Wide temperature range: –50 °C to +250 °C (or higher)

• Durable cable insulation: PTFE/PFA/silicone

• Optional IP-rated terminal head for harsh environments

Sections / Tabs:

1. Specifications – detailed table of dimensions, accuracy, materials, temperature range.

2. How to Use – mounting, wiring, configuration; include wiring diagrams.

3. Applications – HVAC, chemical plants, food processing, labs, industrial automation.

4. Certifications & Downloads – datasheet link, calibration certificate.

5. Order Options – variations (length, head type), pricing, country-specific availability.

Visuals:

• Use one of the images above as a hero shot.

• Add wiring diagrams and mounting illustrations.

• Consider showing close-ups of probe tip and head assembly if available.

Call-to-Action:

• “Download Datasheet”

• “Request Quote”

• “Add to Cart”
