SV630PS2R8l Inovance AC servo motor and Driver 400w

SV630PS2R8l Inovance AC servo motor and Driver 400w in Lahore Pakistan

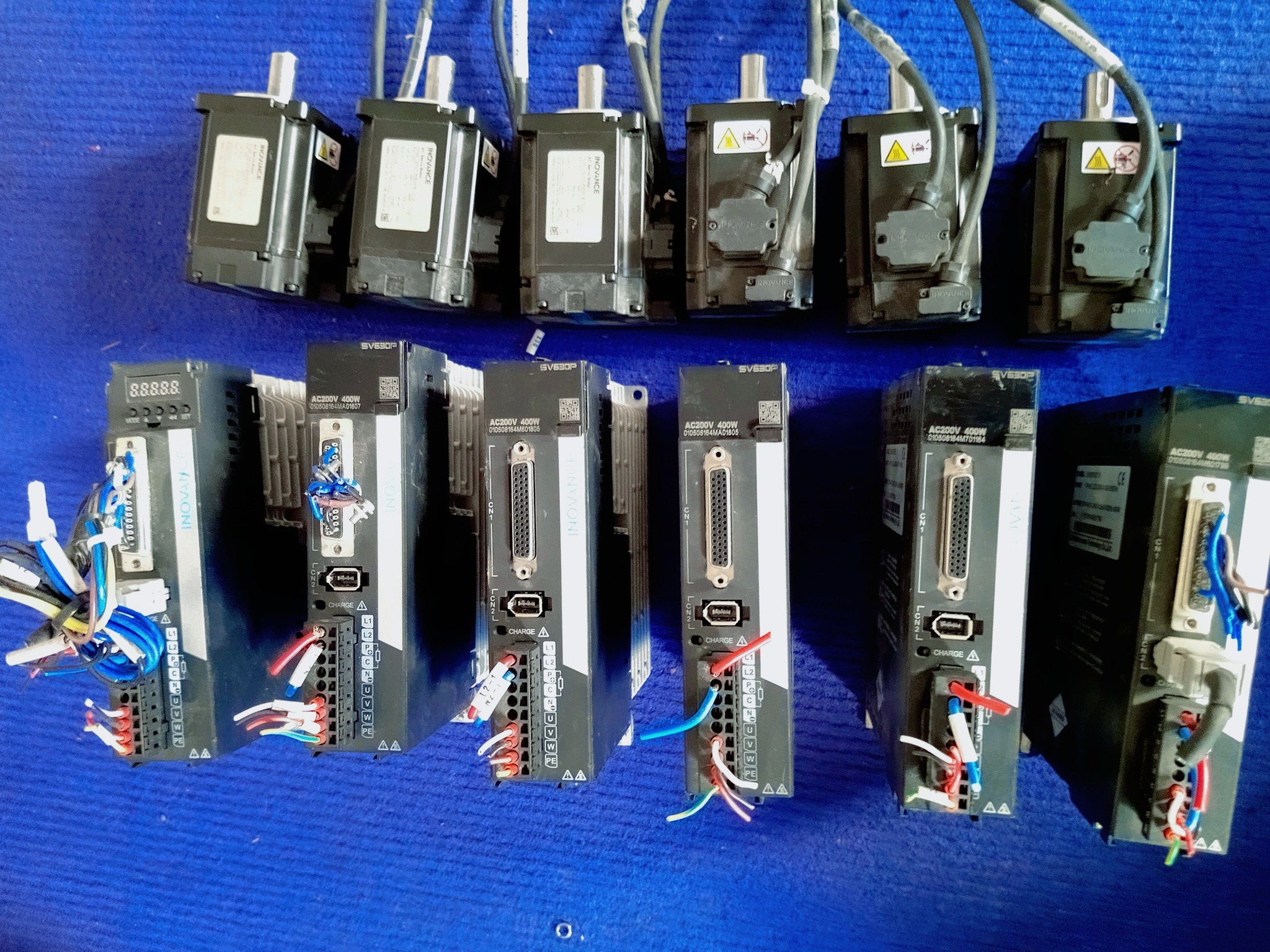

Here’s an image of the Inovance SV630PS2R8I (SV630P Series) — a compact and efficient 400 W AC servo motor driver from the SV630 family.

Product Overview: Inovance SV630PS2R8I (400 W AC Servo Driver)

Key Specifications

• Power Output: 0.4 kW (400 W), continuous S1 duty operation hoangngantec.com.vn

• Input: Single-phase 200–240 V AC, 4 A, 50/60 Hz

• Output: Three-phase AC, up to 240 V, 2.8 A, frequency range 0–500 Hz electronicspanga.com

• Weight: Approximately 790 g for highly compact installations electronicspanga.com

Design & Use Case

• Part of the SV630P Series, spanning 0.05 kW to 7.5 kW, tailored for affordability and reliability in precision systems ManualsLibhoangngantec.com.vn

• Ideal for applications like CNC routers, packaging robotics, and automated assembly lines.

Reliability & Environmental Specs

• Operating environment: 0–40 °C ambient temperature, 20–80 % RH (non-condensing) hoangngantec.com.vn

• Built-in protections include overcurrent, overvoltage, overheating, encoder error, and more ManualsLib

Connectivity & Control Interfaces

• Features Modbus communication (RS485) enabling multi-axis setups

• Support for various control modes:

  • Position control: pulse or incremental encoder, enabling accurate point-to-point motion

  • Speed control and torque control, with options for mixed control modes ManualsLibMade-in-China

Smart Tuning & Diagnostics

• Includes STune and ETune for auto gain tuning, simplifying setup and optimizing motion response inovance.com

• Features advanced diagnostics and fault monitoring through an LED display and parameters via keypad or software (e.g., ManualsLib) ManualsLibManual-Hub.com

How to Use

1. Mounting & Wiring

   • Mount in control cabinet with proper spacing — Size A drives like this model require minimum clearances ManualsLib

   • Connect single-phase power, motor output (U‑V‑W), encoder feedback, and control I/O terminals as per the manual ManualsLib+1

2. Initial Configuration

   • Power up and use the LED keypad to access key parameters (MODE, ▲/▼, SET) ManualsLib

   • Choose control mode (e.g., Position mode) and execute STune or ETune to automatically calculate optimal gain settings inovance.com

3. Operation & Tuning

   • Use inertia auto-tuning followed by gain tuning to refine response — manual tuning can be used afterward for fine performance adjustments Manual-Hub.com

   • Monitor via LEDs or software to respond to alarms or status changes ManualsLibManual-Hub.com

4. Maintenance & Safety

   • Install noise filters and observe correct grounding to minimize interference Manual-Hub.com

   • Ensure regular monitoring of encoder feedback, drive temperatures, and follow the manual's wiring and safety guidelines ManualsLib+1

Suggested Website Copy

Product Title:
Inovance SV630PS2R8I – 400 W AC Servo Driver (SV630P Series)

Product Highlights:

• Compact, lightweight (790 g), 0.4 kW continuous power output

• Simple single-phase 200–240 V input, adaptable for tight panel layouts

• Flexible control: position, speed, torque, or combined modes

• Smart auto-tuning (STune/ETune) for fast commissioning

• Comprehensive protection: over-current, encoder error, overheating, and more

• Suitable for CNC, pick-and-place, robotics, packaging, and general automation

Why Choose SV630PS2R8I?

• Quick and intuitive setup with embedded tuning tools

• Compact design that maximizes cabinet space

• Strong multi-axis integration via Modbus/RS485

• Built for durability and precision, yet budget-friendly
