SV-x3EB0A-A2 SV-X2EA040A-A AC servo motor and Driver in Lahore Pakistan

Here’s a polished and comprehensive product description, usage guide, and features overview for your HCFA SV‑X3EB0A‑A2 and SV‑X2EA040A‑A AC servo motors and drivers, ideal for your website or product catalog:

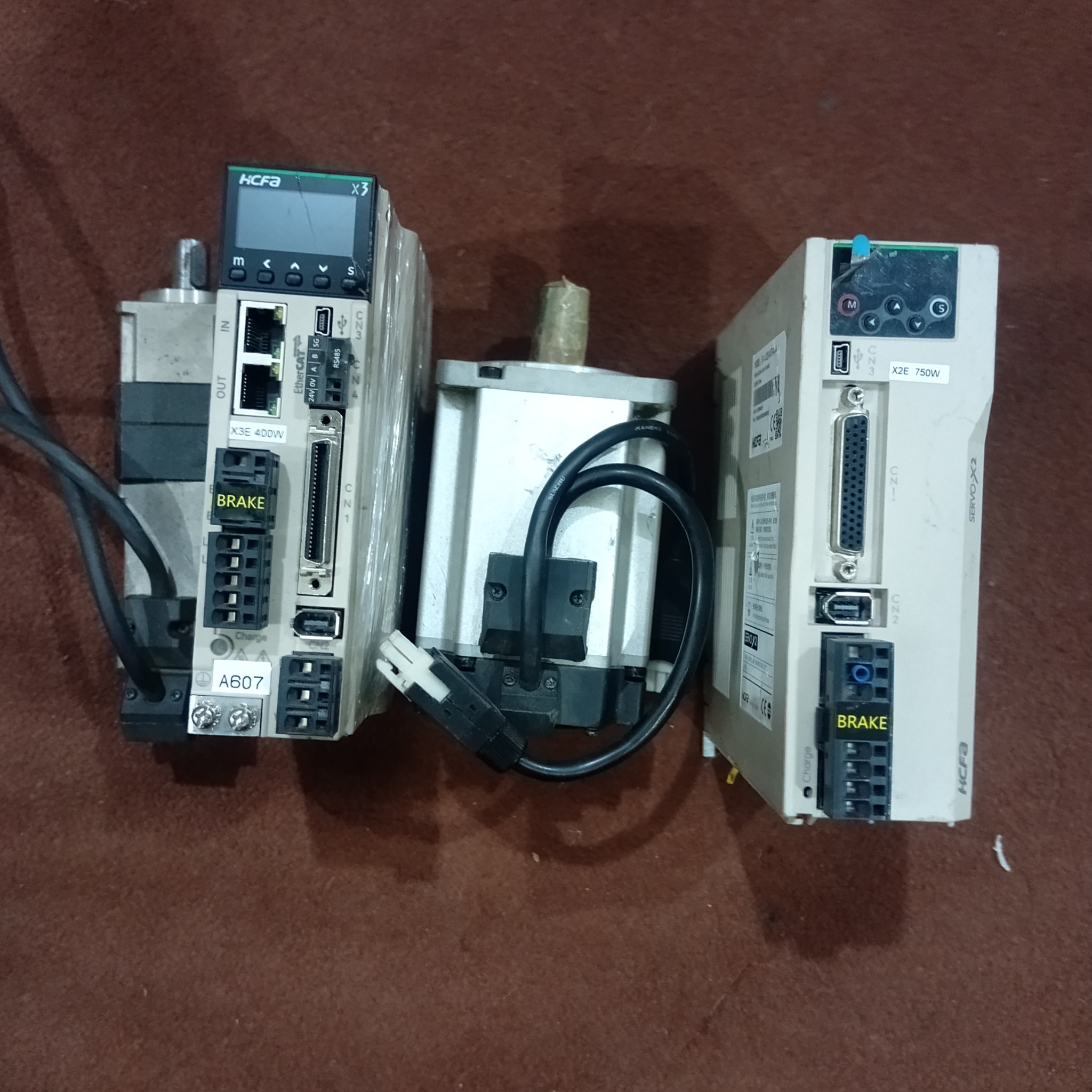

HCFA SV‑X3EB0A‑A2 & SV‑X2EA040A‑A AC Servo Systems

Product Overview

HCFA’s SV‑X series servo drives, specifically the SV‑X3EB0A‑A2 and SV‑X2EA040A‑A, are high-performance, compact AC servo systems designed for advanced industrial automation. They offer precise control across multiple modes and are ideal for applications in CNC, robotics, packaging, textiles, and more.

Key Specifications & Features

SV‑X2EA040A‑A (0.4 kW Single-Phase AC Servo Drive)

SV‑X3EB040A‑A2 (0.4 kW Enhanced Drive with Fieldbus Options)

  • Same core specs as SV‑X2E but with EtherCAT, CANopen, or Pulse/Analog control interface options otomasyonburada.com.tr

  • Expanded I/O: 9 digital inputs, 9 digital outputs, and 2 analog inputs for enhanced control flexibility otomasyonburada.com.tr

  • Retains features: Auto-Tuning, internal positioning, dual-mode switching, high-speed pulse input, home function, resonance suppression, encoder memory backup via battery otomasyonburada.com.tr

  • Advanced communications: Full monitoring and reset capabilities over Ethernet-based protocols; includes TouchProbe and Latch inputs for industrial packaging compatibility otomasyonburada.com.tr

Features at a Glance

Feature Description
High Control Precision 17-bit encoder, 500 kHz pulse resolution.
Multiple Control Modes Supports versatile motion strategies: position, speed, torque, and combinations.
User-Friendly Auto-Tuning Rapid configuration via “Servostudio” and onboard keypad.
Mode-Switching Flexibility Enables changing control strategies on the fly (dual-mode).
Resonance Suppression Built-in notch filters ensure smooth, vibration-free operation.
Memory Backup Feature Optional battery & absolute encoder preserve position after power loss.
Enhanced I/O & Flexibility (X3 Series) Expanded digital and analog I/O, fieldbus compatibility, industrial probe inputs.
Robust Diagnostics Monitoring and reset directly via EtherCAT/CANopen interface.

How to Use – Setup Guide

  1. Mounting & Wiring

    • Securely install driver and motor per mechanical and electrical guidelines.

    • Power input connection (200–240 V AC).

    • Connect encoder and I/O cables (depending on model).

  2. Initial Configuration

    • Use Servostudio via USB for auto-tuning and parameter setup.

    • Alternatively, use the built-in keypad for configuration.

  3. Control Signal Setup

    • Choose control mode (e.g., Position, Speed, Torque).

    • For SV‑X3E series, configure EtherCAT/CANopen or analog/pulse interface.

  4. Fine-Tuning and Monitoring

    • Use resonance filters for smoother motion.

    • Set torque limits via digital inputs/parameters.

    • For enhanced models, use TouchProbe and Latch modes.

  5. Diagnostics and Maintenance

    • Monitor in real-time via software or interface.

    • Use fieldbus to reset alarms and diagnose issues remotely (X3 series).

Applications

  • CNC milling, engraving, and lathe machines

  • Packaging, labeling, and printing systems

  • Automated pick-and-place robots

  • Textile and flexible manufacturing

  • Conveyor systems

  • Industrial motion platforms requiring precise position control
