Product Overview

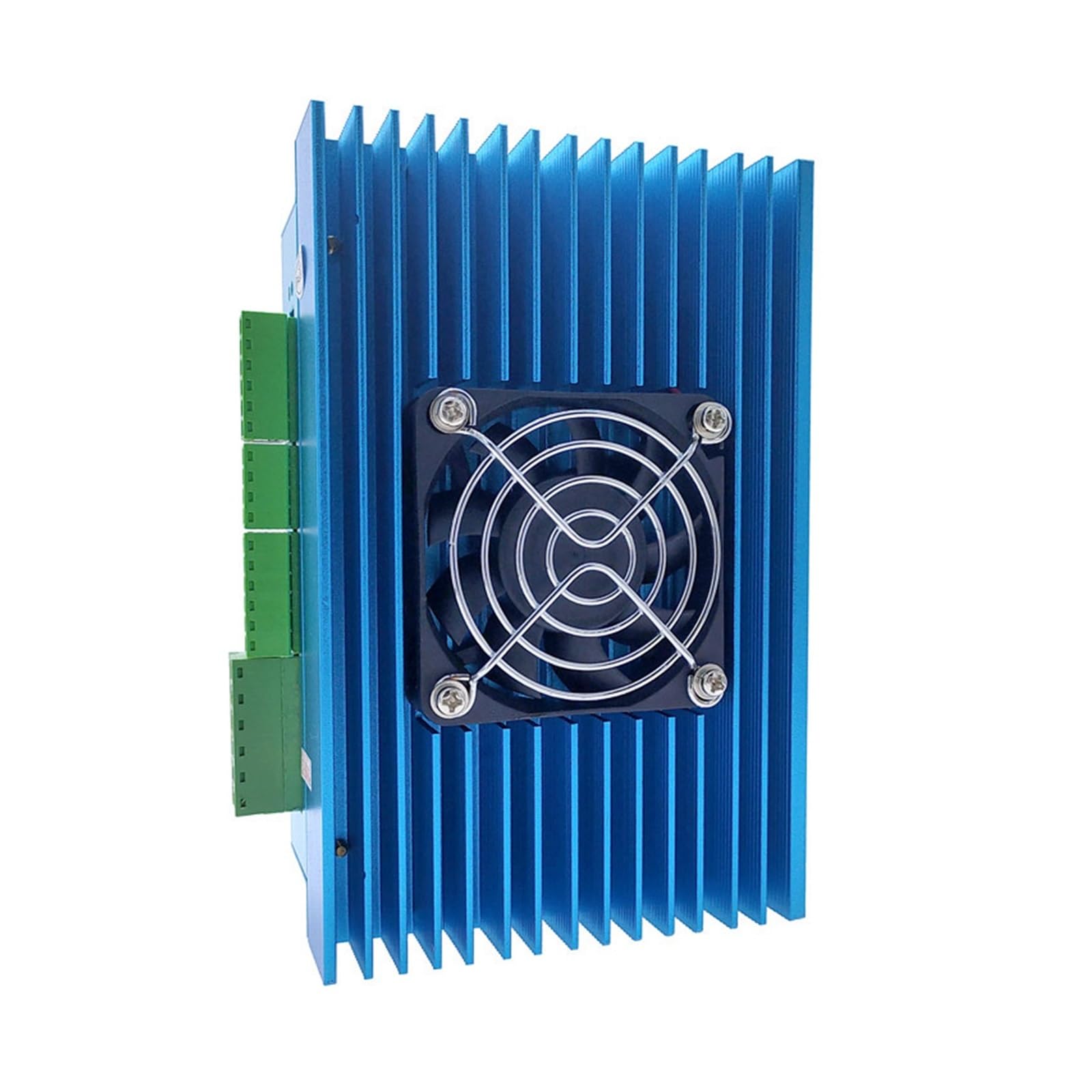

1. HBS86H Closed‑Loop Hybrid Step‑Servo Driver

A next-gen motor driver that blends stepper and servo system advantages. It delivers precise, responsive control with servo-like feedback, packaged in a cost-effective, simplified system.mecheltron.comlongs-motor.com

** Features & Benefits:**

• Closed-loop control to eliminate missed steps and positioning errors.mecheltron.comlongs-motor.com

• High starting torque and exceptional low-speed stiffness.mecheltron.com

• Smooth acceleration, minimal vibration, and low noise.mecheltron.comCNC3DS

• Automatic current optimization reduces motor heating and improves efficiency.longs-motor.comCNC3DS

• DSP-based vector control, stable without manual tuning.longs-motor.comCNC3DS

• Supports 1000 or 2500-line encoders; rapid 50 µs feedback.longs-motor.comcntopstock.comtzsupplies.com

• Built-in error protections: overcurrent, overvoltage, and position deviation.longs-motor.comCNC3DS

• Compact: ~150 × 97.5 × 53 mm, ~580 g.longs-motor.commecheltron.com

** Electrical Specs:**

• Voltage: 20–70 VAC or 30–100 VDC.mecheltron.comlongs-motor.com

• Peak current: ~8 A.mecheltron.comcntopstock.comlongs-motor.com

• Pulse input frequency: Up to 200 kHz.mecheltron.comlongs-motor.com

• Logic signals: 5 V / 24 V compatible with isolation resistors recommended.longs-motor.commecheltron.com

2. CL57 Closed‑Loop Hybrid Stepper Motor

A compact two-phase stepper motor with integrated encoder designed for closed-loop operation.

** Features & Benefits:**

• Voltage: 24–48 VDC; Peak Current: up to 8 A.oyostepper.com

• Eliminates synchronization errors without needing high torque margins.oyostepper.com

• No tuning required, stable out-of-box performance.oyostepper.com

• Protection: Over-voltage, over-current, position error detection.oyostepper.com

• Inputs: Configurable microsteps (800–51200).oyostepper.com

How to Use (Setup / Wiring / Operation)

Wiring & Connections

Connectors are screw-terminal based:

Control Signals (PUL/DIR/ENA):

• Standard step/direction or CW/CCW input, compatible with 5 V/24 V (use series resistor if using higher voltages).mecheltron.comlongs-motor.com

• Typical timing sequence:

  • ENA → DIR (≥5 µs),

  • DIR → PUL (≥6 µs),

  • Pulse width ≥2.5 µs.longs-motor.com

Feedback (Encoder):

• Connect encoder signals A+/A– and B+/B– plus 5 V and ground.mecheltron.comlongs-motor.com

Motor & Power:

• Motor phases: A+, A–, B+, B–

• Power: +V (20–70 VAC or 30–100 V DC) and GND.mecheltron.comlongs-motor.com

Status Outputs:

• INP (in-position): closed when position matches command.

• ALM (alarm): active if protection triggered.mecheltron.comlongs-motor.com

RS‑232 Interface:

• Ports for RS‑232 (TxD, RxD) plus 5 V for tuning adapter. Use tuning software (e.g., ProTuner) or STU for configuration and diagnostics.longs-motor.comcntopstock.com

DIP Switches & Software

• DIP switches select microstep resolution, direction, and trigger edge. Default: microstep ON yields full resolution.longs-motor.comtegco.vn

• Configurable encoder lines (1000 or 2500), PID / current settings, error limits via software interface.longs-motor.comtegco.vn

Start-Up Routine:

1. Power driver (ensure voltage within range).

2. Connect motor and encoder correctly.

3. Connect control pulses (PUL, DIR, ENA).

4. Use RS‑232 to verify status, adjust settings if needed.

5. Initiate motion commands; monitor INP / ALM as needed.

6. Use tuning software to optimize performance or monitor faults.

Product Listing Summary (For Website)

Title:

• Leadshine HBS86H Closed-Loop Hybrid Step-Servo Driver + CL57 Hybrid Stepper Motor

Subtitle:

• High-Precision, Low-Noise Closed-Loop Hybrid Servo System – No Step Loss, No Tuning Required

Key Specs (Bulleted):

• Driver: 20–70 VAC or 30–100 V DC; up to 8 A peak current; 200 kHz pulse input; DSP closed-loop control.

• Motor: Compatible CL57 hybrid stepper (24–48 V DC, up to 8 A).

• Built-in encoder for real-time feedback; selectable microsteps up to 51,200.

• Protection: Over-voltage, over-current, position error.

• Connectivity: Step/Dir/ENA inputs, encoder I/O, motor phase, power input, RS‑232 for tuning/debugging.

• Compact size: ~150 × 97.5 × 53 mm; ~580 g.

Features List:

• Locked-position precision and zero step loss

• Exceptional low-speed torque and stiffness

• Vibration-free, quiet operation

• Intelligent current optimization reduces heat

• Easy integration—no tuning needed

• Built-in safety with real-time protection

• Full control and monitoring via RS‑232 interface

Usage Summary:
"Wiring is straightforward via screw terminals for control, power, motor, and encoder. Configure motion parameters with DIP switches or via tuning software using RS‑232. Monitor position with the INP signal; detect faults with ALM. Ideal for CNC, robotics, automation, and precision motion systems."
