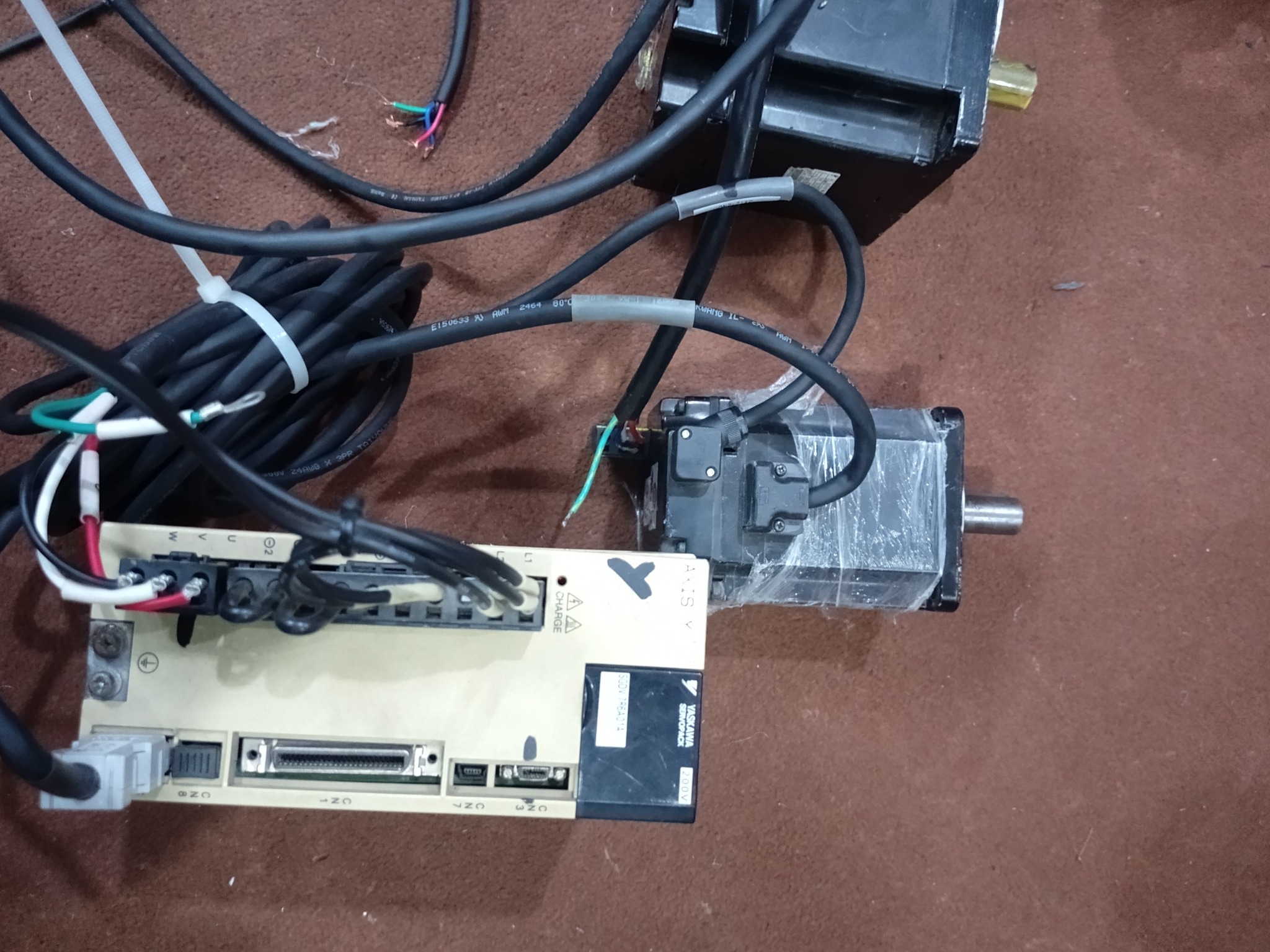

SGDV SGDM-04ADA Yaskawa SGDV SGDM-02ADA SGDV-7R6A01A 1kw Yaskawa AC SERVO MOTOR AND DRIVER in Lahore Pakistan

βš™οΈ Yaskawa AC Servo Motor & Drive System

βœ… Models: SGDV-7R6A01A (1kW) | SGDM-04ADA | SGDM-02ADA | SGDV Series

🧾 Product Overview

The Yaskawa Sigma Series AC Servo Drives and Motors represent industry-leading motion control solutions designed for high-speed, high-precision automation. These servo systems provide seamless motion performance, robust control features, and reliable safety mechanisms, making them ideal for CNC machinery, robotics, pick-and-place machines, packaging, and more.

Whether you're using the SGDV (Sigma V) series or the SGDM (Sigma II) series, Yaskawa ensures world-class performance, durability, and precision in motion control.

πŸ”© Included Models

  • SGDV-7R6A01A – 1kW Sigma V Drive, advanced model with network support

  • SGDM-04ADA – 400W Sigma II Drive, analog & pulse control

  • SGDM-02ADA – 200W Sigma II Drive

  • Compatible with Yaskawa Sigma-series Servo Motors: SGMGV, SGMSV, SGMJV, etc.

🌟 Key Features

πŸ”Ή Yaskawa SGDV Series (Sigma V):

  • Servo Driver with 1kW output (e.g., SGDV-7R6A01A)

  • Up to 3.1 kHz frequency response for ultra-fast response

  • Supports MECHATROLINK-II / III, analog, pulse-train, and Ethernet

  • Advanced vibration suppression

  • Full closed-loop control for superior precision

  • Auto-tuning & real-time gain adjustment

  • Built-in safety: STO (Safe Torque Off)

πŸ”Ή Yaskawa SGDM Series (Sigma II):

  • Analog/pulse command servo driver

  • Supports 200W–750W motors (SGDM-02ADA, SGDM-04ADA)

  • Precise motion with real-time encoder feedback

  • Simple configuration with one-touch tuning

  • Communication via RS-232/RS-422

  • Excellent for general-purpose automation

πŸ“ Typical Technical Specifications (SGDV-7R6A01A Example)

Parameter Specification
Model SGDV-7R6A01A
Output Power 1kW
Rated Voltage 200–230V AC
Control Mode Position / Speed / Torque
Encoder Support 20-bit absolute/incremental
Feedback Signal Serial encoder
Input Command Pulse / Analog / Communication
Safety Function STO
Max Frequency Response Up to 3.1 kHz
Motor Compatibility SGMGV, SGMSV, SGMJV (depends on driver)

Other models like SGDM-02ADA (200W) and SGDM-04ADA (400W) have similar architecture but with different power capacities and simplified features.

πŸ› οΈ How to Use / Installation Guide

πŸ”Œ 1. Mount the Servo Drive and Motor

  • Install the driver into a control cabinet with adequate cooling.

  • Fix the servo motor to the machine's load axis using a flexible coupling or pulley.

πŸ”— 2. Wiring & Power Connection

  • Connect 3-phase or single-phase 200–230V AC to the drive (based on model).

  • Wire the motor U/V/W and encoder cable to the driver.

  • Connect control input (Pulse/Dir or Analog) from controller (PLC, CNC, etc.).

  • Ground all terminals properly for safety.

πŸ–₯️ 3. Configuration

  • Connect a PC via USB or RS-232 using SigmaWin+ software.

  • Set drive parameters like motor model, control mode, encoder type.

  • Use auto-tuning for dynamic load adjustment.

  • Set limits, acceleration profiles, and protection thresholds.

▢️ 4. Testing & Operation

  • Use software or control system to test jog movement.

  • Monitor real-time data (position, speed, torque).

  • Fine-tune gain parameters for optimal performance.

🧠 Best Practices

  • Ensure matching between driver and motor model (check motor rated current and encoder type).

  • Always install in dust-free, ventilated enclosures.

  • Use shielded cables for encoder and control lines.

  • Use built-in diagnostics via SigmaWin+ for error handling.

🎯 Applications

  • CNC Machines (milling, routing, laser)

  • Robotic Arms and Assembly Lines

  • Printing and Textile Machines

  • Packaging Equipment

  • Automatic Storage and Retrieval Systems

  • Conveyor and Sorting Systems

  • Medical Devices and Inspection Machines

πŸ“¦ What’s Included

  • βœ… 1 Γ— Yaskawa Servo Driver (e.g., SGDV-7R6A01A)

  • βœ… 1 Γ— Yaskawa AC Servo Motor (model varies by set)

  • βœ… Encoder Cable (if bundled)

  • βœ… Power Terminal Block

  • βœ… User Manual / Quick Start Guide (Digital or Print)

βœ… Advantages of Yaskawa Servo Systems

  • 🧠 Smart Tuning for any mechanical system

  • ⚑ Ultra-fast frequency response for rapid positioning

  • 🎯 Sub-micron precision with high-resolution encoder

  • πŸ”’ Built-in safety functions and diagnostics

  • 🌐 Flexible networking and I/O support

🏷️ SEO-Friendly Product Titles

  • Yaskawa SGDV-7R6A01A 1kW AC Servo Motor & Drive Kit – Sigma V Series

  • SGDM-04ADA 400W Analog Pulse Servo Drive – Yaskawa Sigma II

  • Yaskawa SGDM-02ADA 200W Servo Driver with Feedback Control

  • High-Speed Yaskawa Servo Drive and Motor System for CNC Automation

  • Yaskawa Sigma V SGDV Servo Driver with 20-bit Encoder Support
