Pressure Sensor Transducer Sender 4-20mA DC24V with Digital Display
₨0
Need some help?
Contact Us
Product Ships in
2-3-business Days
Payment Methods:
Pressure Sensor Transducer Sender 4-20mA DC24V with Digital Display in Lahore Pakistan

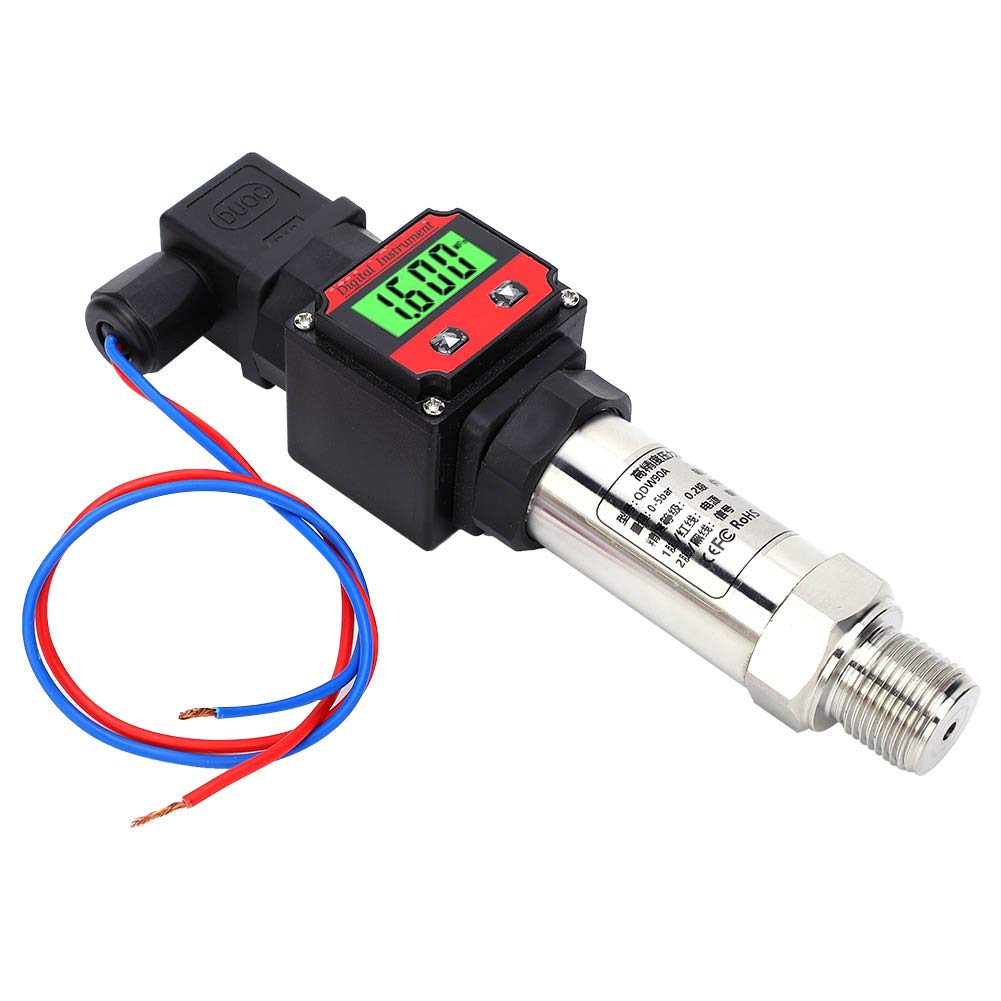

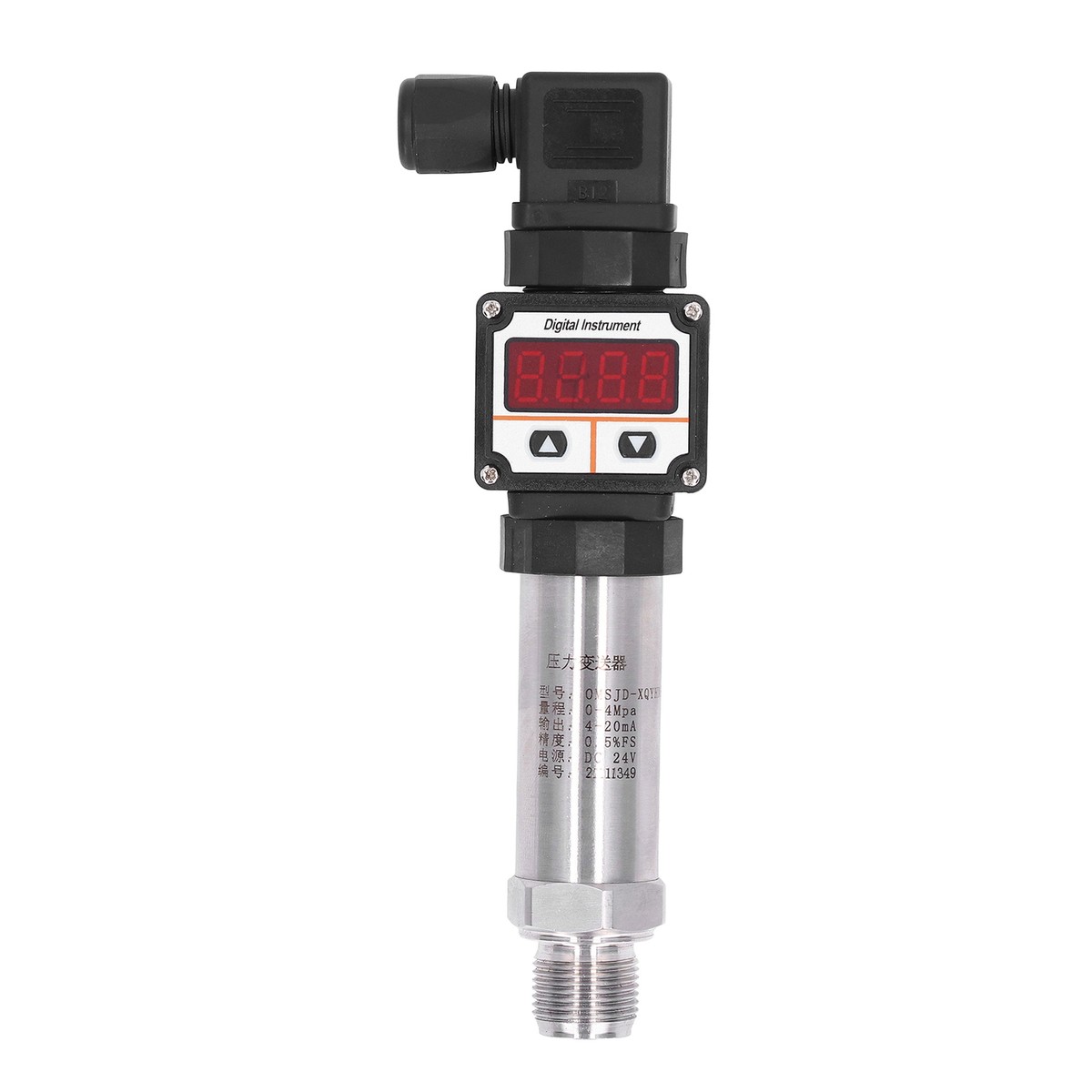

Here’s a visual overview of the Pressure Sensor Transducer (4‑20 mA, 24 V DC) with Digital Display—showcasing the compact design, integrated LED/LCD panel, and pressure port typically found in such devices.
Product Details (For Your Website)
Product Type: Pressure Transducer / Transmitter with built-in digital display, offering a 4–20 mA two-wire output and powered by 24 V DC.
Common Specifications
-
Power Supply: 24 V DC (typically within 12–36 V DC range) Industrial Pressure SensorBaoji Hengtong Electronics Co., LTDahqidian.en.made-in-china.com
-
Output Signal: 4–20 mA analog output with live digital display (LED or LCD) Baoji Hengtong Electronics Co., LTDChinaxahqidian.en.made-in-china.com
-
Pressure Ranges: Wide variety—from vacuum or compound pressure up to high pressures (e.g., −0.1 MPa to 100 MPa or more) ChinaxMeokonintzhongziyi.en.made-in-china.com
-
Accuracy: Options typically range from ±0.1% FS to ±0.5% FS ChinaxIndustrial Pressure Sensorzhongziyi.en.made-in-china.com
-
Construction Materials:
-
Wetted parts often use 316L stainless steel or aluminum alloys Industrial Pressure SensorChinaxzhongziyi.en.made-in-china.com
-
Shell typically made of stainless steel or plated metal for durability ChinaxMeokonintIndustrial Pressure Sensor
-
-
Protection Rating: Common IP65, some robust models offer IP67 protection for harsher environments Chinaxwnksensor.en.made-in-china.com
-
Overload Capability: Typically 150% to 200% FS to protect the sensor Chinaxwnksensor.en.made-in-china.comahqidian.en.made-in-china.com
-
Additional Options:
-
Temperature compensation, anti-interference circuitry, and explosion-proof variants ahqidian.en.made-in-china.comzhongziyi.en.made-in-china.com
-
Customizable output formats e.g., 0–10 V, RS-485, PROFIBUS-PA ChinaxIndustrial Pressure Sensorzhongziyi.en.made-in-china.com
-
How to Use
Installation & Setup
-
Mounting: Attach to process using the correct thread (e.g., ¼″ BSP, 1/4″ NPT, M20x1.5) depending on model Chinaxwnksensor.en.made-in-china.com.
-
Power & Wiring: Connect 24 V DC supply. In two-wire loop, the same pair powers the device and carries the 4–20 mA signal to your control system.
-
Display Configuration: Models often include buttons or potentiometers to adjust zero/full-scale settings, decimal placement, or display units (bar, psi, MPa) Baoji Hengtong Electronics Co., LTDcoowor.comzhongziyi.en.made-in-china.com.
Operation
-
The transducer measures pressure and converts it proportionally to a 4–20 mA current signal while showing real-time pressure on the integrated display.
-
Accurate and stable readings are ensured by compensation and signal conditioning.
Maintenance Tips
-
Periodically clean the port and check for sediment or blockages.
-
Verify calibration using a hand pump or reference gauge.
-
Inspect for damage after mechanical impact due to overload resilience.
-
Ensure environmental seals are maintained to keep rated ingress protection.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Two-wire 4–20 mA loop | Simple integration and power-efficient wiring |
| Onboard Digital Display | Instant local readout—no additional meters required |
| High Accuracy & Range Flexibility | Fit for precise monitoring in diverse applications |
| Durable Construction & Overload Protection | Reliable in harsh industrial environments |
| Customizable Outputs & Interfaces | Adaptable across automation systems (e.g., PROFIBUS, RS-485) |
| Wide Pressure & Material Compatibility | Supports liquids, gases, and oils across many industries |
| IP‑Rated Protection | Dust- and water-resistant for field installation |
| Stable & Long-Lasting Performance | Temperature compensation, drift <±0.2% FS/year ahqidian.en.made-in-china.comwnksensor.en.made-in-china.comMeokonint |
Summary for Website Content
The Pressure Sensor/Transducer (4–20 mA, 24 V DC) with Digital Display is a fully integrated solution for accurate pressure measurement in industrial, HVAC, automotive, and fluid control systems. With customizable pressure ranges, high precision, robust build, and straightforward 4–20 mA loop wiring, it's perfect for both OEM installations and retrofit upgrades. The built-in digital display provides immediate, easy-to-read feedback, while IP-rated housing and overload protection ensure resilience in challenging environments.
