Hereโs a complete and professional product description, technical breakdown, usage guide, and feature explanation for your website or e-commerce platform listing for various Panasonic AC Servo Motors and Drivers, specifically the models:
-
MQDA043D1A33
-
MSMD042G1A
-
R88M-G75030T-8 (Note: this is an Omron model, not Panasonic โ details provided separately)
-
MSDA023D1A
-
MBDHT2510

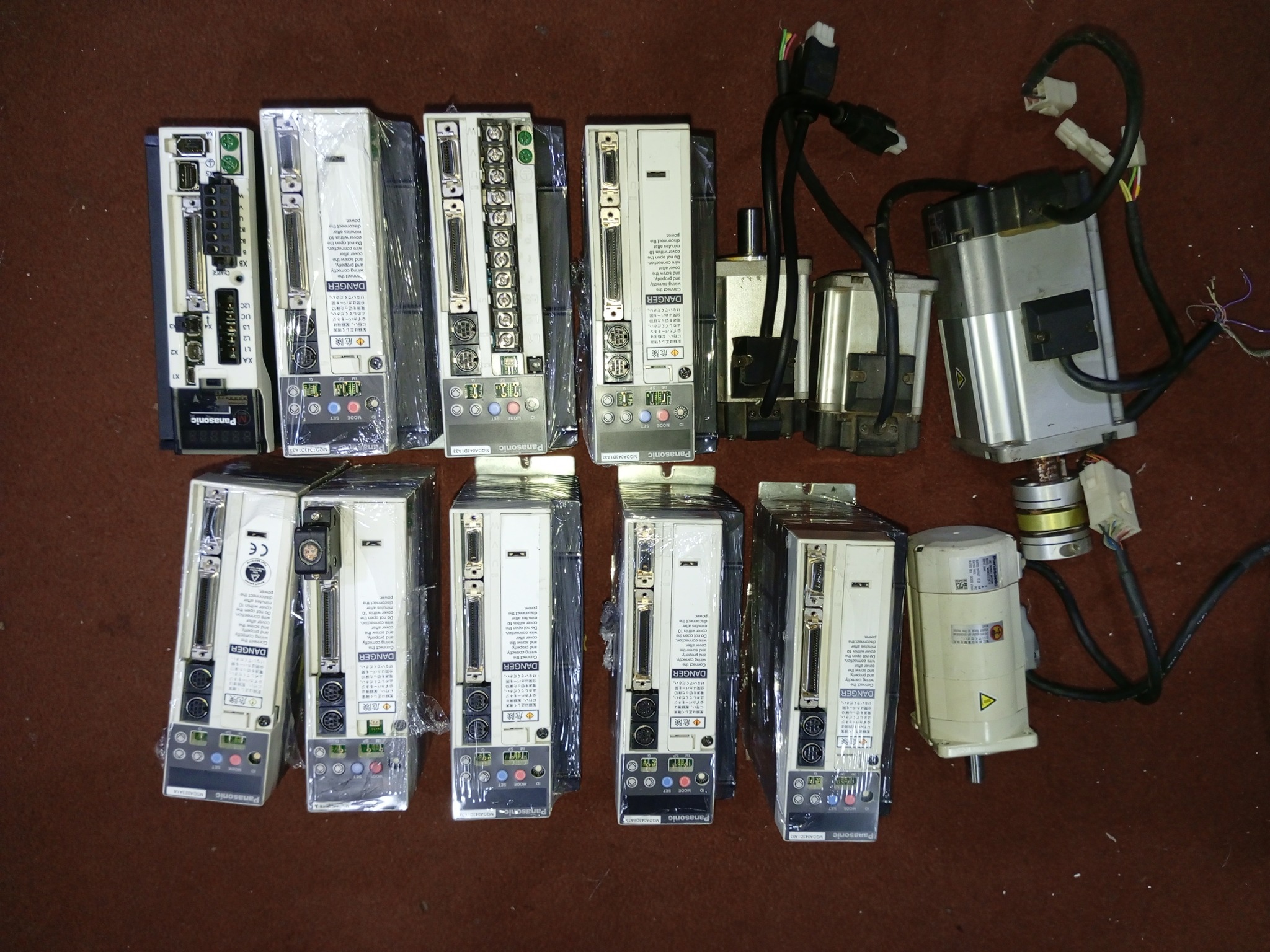

โ๏ธ Panasonic AC Servo Motor & Driver Series
High Precision Servo Systems for Industrial Automation
๐ฆ Available Models Overview
| Model | Type | Power Output | Voltage | Compatible Driver | Notes |
|---|---|---|---|---|---|
| MQDA043D1A33 | Servo Driver | 400W | 200โ230V AC | Compatible with MQ Servo Motors | Advanced motion control |
| MSMD042G1A | AC Servo Motor | 400W | 200V | Compatible with MBDHT series | A6 series brushless motor |
| R88M-G75030T-8 | AC Servo Motor (Omron) | 750W | 200โ230V | R88D-GT driver required | Omron system โ not Panasonic |
| MSDA023D1A | Servo Driver | 200W | 100โ115V AC | Panasonic MINAS A4 series | Legacy A4 series driver |
| MBDHT2510 | Servo Driver | 1kW | 200โ230V AC | For A6 series motors | High-speed EtherCAT/RTEX support |
๐ Product Description
Panasonic's AC servo motors and drivers deliver high-performance, precise motion control, and are widely used in industrial automation, CNC machinery, robotics, and packaging systems. With built-in feedback encoders, real-time torque control, and auto-gain tuning, these servo systems offer superior performance over traditional stepper or open-loop systems.
๐ Key Features Across Models
โ High Response & Accuracy
-
Response frequency up to 3.2 kHz (A6 Series) for faster cycle times.
-
20-bit or 2500 PPR encoders ensure precise positioning.
โ Compact & Powerful
-
Small motor frame sizes with high torque output.
-
Efficient heat dissipation and continuous duty operation.
โ Versatile Control Options
-
Supports position, speed, and torque control modes.
-
Interfaces: Pulse/Direction, Analog Input, EtherCAT, RTEX, and Modbus (model dependent).
โ Auto Tuning & Vibration Suppression
-
Automatic gain tuning and real-time adjustment.
-
Built-in notch filters for machine vibration dampening.
โ Easy Integration
-
Works with Panasonic PLCs, CNCs, and 3rd party motion controllers.
-
Compact design allows for panel or DIN rail mounting.
โ Advanced Diagnostics
-
Real-time error monitoring via LED display or PC software.
-
Alarms for over-voltage, overload, encoder error, overheating, etc.
๐ ๏ธ How to Use โ Installation & Setup Guide
1. Mounting the Motor
-
Secure the servo motor to your machine using precision alignment tools.
-
Couple the shaft to the mechanical load using a flexible or rigid coupling.
2. Wiring
-
Connect motor power (U, V, W) to the driver.
-
Attach encoder feedback cable to the driver.
-
Connect AC power (typically 200โ230V single/3-phase) to the driver.
-
Wire I/O signals (Pulse, Direction, Enable) or fieldbus as needed.
3. Parameter Setup
-
Use Panasonic PANATERM software or DIP switches (on older models).
-
Configure motor model, gain settings, control mode, and alarm options.
-
Perform auto-tuning to optimize response and stability.
4. Running the System
-
Start the controller (PLC, CNC, HMI) and issue motion commands.
-
Monitor status via driver display or software dashboard.
-
Ensure smooth acceleration, deceleration, and position accuracy.
๐ก Applications
-
CNC Routers and Mills
-
Packaging & Labeling Machines
-
Pick & Place Robotics
-
Injection Molding Machines
-
Textile Automation
-
Conveyor Belt Drives
-
Automatic Inspection Systems
๐ Included in Package
-
AC Servo Motor (MSMD or R88M series)
-
Servo Driver (MQDA, MSDA, MBDHT series)
-
Encoder Cable (model-dependent)
-
Motor Power Cable
-
User Manual & Parameter Sheets (PDF or Print)
-
Optional: Communication Cable (for EtherCAT or RTEX)
๐ง Model Notes & Highlights
๐น MQDA043D1A33
-
High-speed driver for 400W motors.
-
Supports digital control with precise feedback loop.
๐น MSMD042G1A
-
400W Panasonic A6 series servo motor.
-
Compact, reliable, and compatible with MBDHT series drivers.
๐น R88M-G75030T-8 (Omron)
-
750W, 3000 rpm AC servo motor (Omron brand).
-
Requires Omron R88D series driver โ not compatible with Panasonic drivers.
๐น MSDA023D1A
-
200W servo driver from older MINAS A4 series.
-
Reliable and widely used in legacy Panasonic systems.
๐น MBDHT2510
-
1kW EtherCAT-compatible servo driver.
-
Ideal for high-speed automated systems with A6 series motors.
๐ Why Choose Panasonic AC Servo Systems?
โ
Industry-leading reliability
โ
Ultra-precise motion control
โ
Fast response time with real-time feedback
โ
Easy integration with many platforms
โ
Support for EtherCAT, Modbus, and other industrial protocols
