Omron TLQ5MC1 Proximity Sensor, 5 mm Inductive Sensing, NPN Output, NO
₨0
Need some help?
Contact Us
Product Ships in
2-3-business Days
Payment Methods:
Omron TLQ5MC1 Proximity Sensor, 5 mm Inductive Sensing, NPN Output, NO in Lahore Pakistan

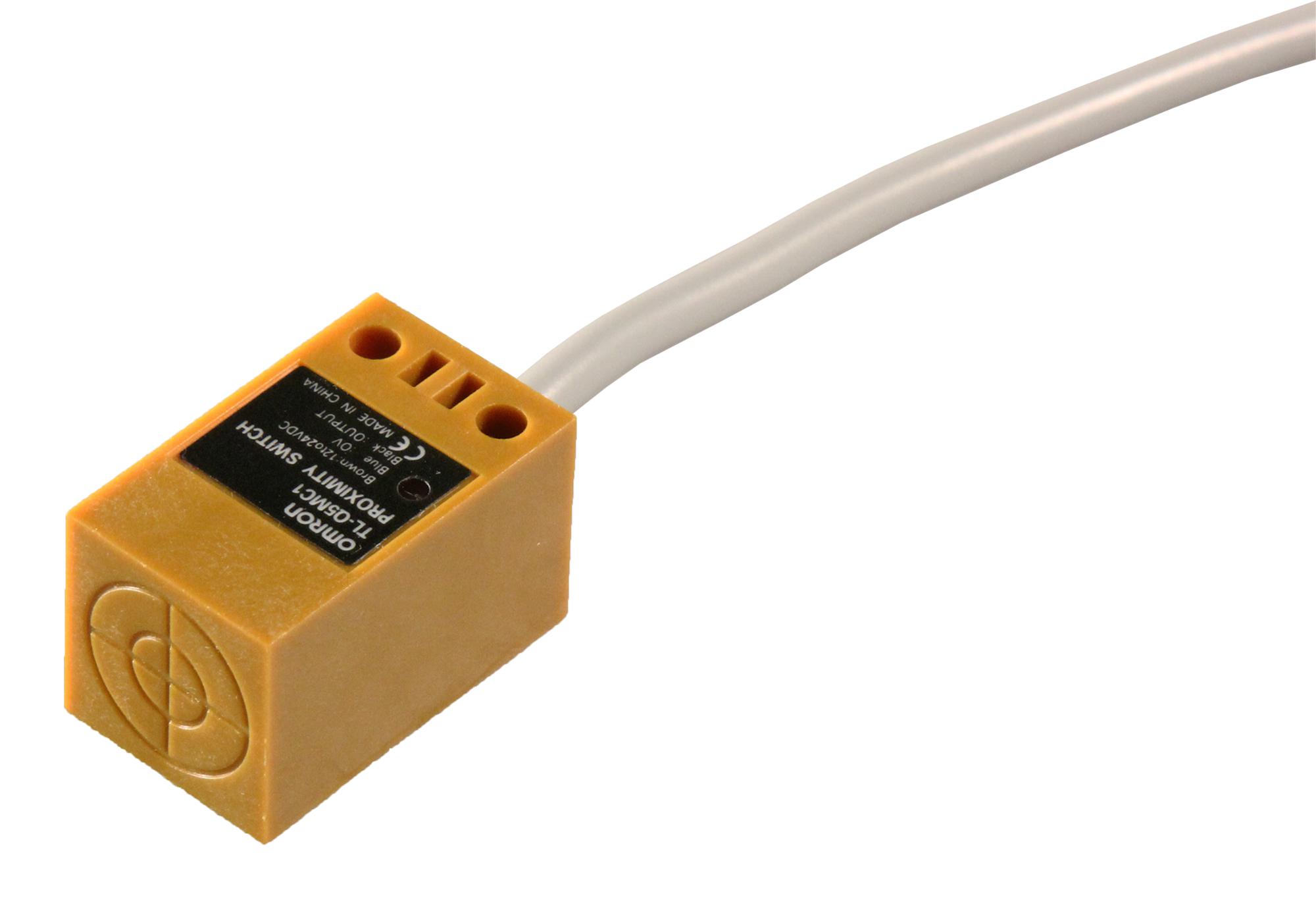

Omron TL‑Q5MC1 Inductive Proximity Sensor
Product Description
The Omron TL‑Q5MC1 is a compact, rectangular inductive proximity sensor from the renowned TL‑Q series. It offers reliable non-contact detection of ferrous metals within a 5 mm range and features a standard NPN open collector, normally open (NO) output. Developed for industrial automation, it is ideal for detecting metal objects in tight spaces with high precision.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensing Distance | 5 mm ±10% ia.omron.comomron.keal.com.bd |
| Setting Distance | 0 to 4 mm ia.omron.comomron.keal.com.bd |
| Response Time | ≤ 2 ms ia.omron.com |
| Response Frequency | 500 Hz ia.omron.comAvaq |
| Supply Voltage | 10 to 30 V DC (typically 12–24 V DC) ia.omron.comae.rsdelivers.com |
| Current Consumption | Max ~10 mA (at 24 V) ia.omron.comomron.keal.com.bd |
| Output Type | NPN open collector, NO ia.omron.com+1 |
| Switching Capacity | ≤ 50 mA, 30 V DC ia.omron.comae.rsdelivers.com |
| Indication | Detection LED (red) ia.omron.com |
| Protective Features | Reverse polarity and surge protection ia.omron.com+1 |
| Operating Temp | –25 °C to +70 °C ia.omron.comomron.keal.com.bd |
| IP Rating | IP67—dust-tight and waterproof ia.omron.comae.rsdelivers.com |
| Physical Dimensions | Head: 17 × 17 × 28 mm; pre-wired cable (2 m or 5 m) ion.keal.com.bdae.rsdelivers.com |
| Material | Heat-resistant ABS resin body and sensing surface |
Key Features & Benefits
-
Precise Sensing: Detects ferrous metals within 5 mm with ±10% accuracy—ideal for compact setups.
-
High-Speed Performance: Supports up to 500 Hz switching frequency, making it great for fast-moving applications.
-
Durable and Reliable: IP67 housing and protective circuits ensure reliable operation even in harsh industrial environments.
-
Visual Feedback: Integrated red LED confirms sensing status, simplifying diagnostics.
-
Easy Integration: Pre-wired cable and compact form factor make mounting and wiring fast and straightforward.
Typical Applications
-
Limit switch replacement in 3D printers, CNC machines, and automation setups
-
Position detection, rotation control, and high-speed counting tasks.
-
Machine condition monitoring and general object presence detection.
How to Use the TL‑Q5MC1
1. Mounting:
Secure the sensor with screws or a panel mount, ensuring the metal target faces within 5 mm of the sensing surface.
2. Wiring:
Connect the three leads:
-
Brown → V+ (10–30 V DC)
-
Blue → Ground (0 V)
-
Black → Sensor output (connect to PLC, relay, etc.)
3. Operation:
When a ferrous object enters the sensing range, the sensor switches on the NPN output, and the red LED illuminates.
4. Testing:
Power the sensor and place a metal target within 5 mm. Observe LED activation and output response to verify performance.
