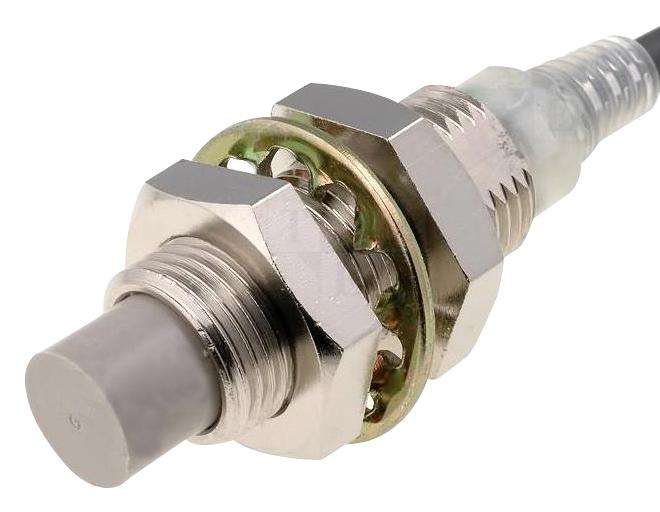

Omron E2E-X8MD1 2M Inductive Proximity Sensor

The Omron E2E-X8MD1 2M Inductive Proximity Sensor is a high-performance, 2-wire, normally open (NO) inductive proximity sensor designed for precise object detection in industrial automation systems. This sensor is built with high durability, reliable performance, and robust features to meet the demanding needs of modern industrial environments. Whether you are working in manufacturing, automated assembly, robotics, or material handling, the E2E-X8MD1 offers a versatile solution for non-contact detection of metallic objects.

Product Details:

• Model: Omron E2E-X8MD1

• Sensing Type: Inductive Proximity Sensor (Non-contact)

• Detection Range: 8 mm

• Output Type: NPN/PNP (Sourcing or Sink), Normally Open (NO)

• Supply Voltage: 10V to 30V DC

• Output Mode: 2-Wire, NO (Normally Open)

• Response Time: < 1 ms

• Housing Material: Nickel-Plated Brass

• Protection Rating: IP67 (Dust-tight and waterproof)

• Size: M8 x 40 mm

• Cable Length: 2 meters

• Operating Temperature Range: -25°C to +70°C

• Weight: Approx. 30g

Key Features:

1. Inductive Sensing Technology:
   The E2E-X8MD1 uses inductive proximity sensing, meaning it detects metallic objects without contact. This eliminates mechanical wear and tear, providing a long operational life with low maintenance needs.

2. Detection Range:
   This sensor has a detection range of 8 mm, making it suitable for detecting small metallic objects in close proximity. The short-range detection allows for precise object positioning.

3. 2-Wire Design:
   The E2E-X8MD1 operates on a 2-wire system, simplifying wiring and reducing installation time. The 2-wire design means that both power and signal are transmitted through the same wire, streamlining the wiring process in machines and automation systems.

4. Normally Open (NO):
   The sensor features a Normally Open (NO) output, meaning the sensor will output a signal when it detects a metallic object. It is a simple, reliable method for triggering actions in automated systems.

5. Wide Voltage Range:
   The sensor operates within a wide voltage range of 10V to 30V DC, making it compatible with a broad range of control systems and industrial applications.

6. IP67 Protection Rating:
   The IP67 rating ensures that the sensor is dust-tight and waterproof, making it resistant to harsh environments, such as those with dirt, dust, moisture, and occasional water exposure. This protection makes it suitable for use in factories, outdoor environments, and high-pressure washdown areas.

7. Compact Design:
   With an M8 threaded body (8 mm in diameter), the E2E-X8MD1 sensor has a compact design that fits easily into tight spaces, making it ideal for use in automated machinery, robotic systems, and other compact environments.

8. Fast Response Time:
   The sensor has an ultra-fast response time of less than 1 ms, allowing for quick detection of moving objects in high-speed automated systems.

9. Durability:
   The sensor is built with nickel-plated brass housing, making it highly durable and resistant to physical wear and tear. The robust design allows it to perform reliably in high vibration, impact-prone, and extreme temperature environments.

10. Temperature Range:
    With an operating temperature range from -25°C to +70°C, the E2E-X8MD1 can perform in a wide variety of environments, from cold to hot conditions.

How to Use the Omron E2E-X8MD1 Inductive Proximity Sensor:

1. Mounting the Sensor:

• Positioning:
  Mount the E2E-X8MD1 so that the sensing face is directed towards the metallic object you want to detect. The sensor has an 8 mm detection range, meaning that the object must come within this distance for detection.

• Mounting Type:
  The sensor comes with an M8 threaded body, so you can mount it easily in M8-compatible holes or use M8 mounting brackets. Ensure that the sensor is securely mounted and aligned correctly for optimal performance.

• Environmental Considerations:
  Given the IP67 rating, the sensor can be used in dusty, wet, or harsh environments. However, avoid exposure to extreme chemicals or conditions that might exceed its temperature range or voltage limits.

2. Wiring the Sensor:

• Power Supply:
  Connect the brown wire (positive) to the positive terminal of your DC power supply (within the 10V to 30V DC range).

• Output Wire:
  The blue wire is the signal output. The sensor will send a signal when a metallic object is detected. This output is normally open (NO), meaning it will send a signal to the controller or actuator only when an object is within the detection range.

• Load Connection:
  The sensor output can be connected to PLC inputs, relays, or any automated control system that requires a signal when a metallic object is detected.

3. Testing and Calibration:

• Once the sensor is wired, turn on the power supply and test the sensor by bringing a metal object within the detection range.

• The output signal should be triggered, which can then activate machinery or alert the system.

• Adjust the sensor’s position if necessary to ensure optimal detection of objects within the 8 mm range.

4. Fine-tuning the Sensitivity:

• The E2E-X8MD1 sensor is designed for easy setup with no manual sensitivity adjustment needed. However, ensure the sensor is mounted correctly so that objects are within the specified detection range.

Applications of the Omron E2E-X8MD1 Inductive Proximity Sensor:

1. Automated Manufacturing Systems:
   The E2E-X8MD1 is ideal for detecting the presence or position of metal parts in automated machinery, ensuring smooth operation and preventing misalignment.

2. Robotics:
   In robotic systems, the E2E-X8MD1 sensor can be used to detect objects, enabling robots to perform tasks like picking, placing, and assembly with high precision.

3. Position Detection:
   Used in positioning systems, this sensor can determine if mechanical parts or workpieces are in the correct location before further processing or action is triggered.

4. Material Handling:
   The sensor can be used in conveyor belts or sorting systems to detect metal objects, ensuring that the correct parts are passed along the production line.

5. Safety Applications:
   Integrating the E2E-X8MD1 into safety monitoring systems can help ensure that moving parts or machinery components are properly positioned or that safety guards are in place before machines operate.

6. Packaging and Sorting:
   In packaging lines, the sensor can be used to detect the position of metal packages or products, ensuring accurate sorting and packaging processes.

7. Automated Testing Systems:
   The sensor can detect the presence of metal components in testing and measurement systems, ensuring that testing occurs only when the correct objects are in place.

Advantages of the Omron E2E-X8MD1 Inductive Proximity Sensor:

• High Durability:
  The nickel-plated brass housing ensures the sensor can withstand harsh environments, including vibration, impact, and exposure to water or dust (IP67 rating).

• Compact Design:
  The M8 threaded body and compact size make the sensor ideal for installation in tight spaces where space is limited.

• Long Lifecycle:
  As an inductive proximity sensor, the E2E-X8MD1 offers a non-contact sensing method, resulting in longer operational life and reduced maintenance costs compared to mechanical switches.

• Easy Integration:
  The 2-wire design simplifies installation and integration with PLC systems, making it ideal for use in a variety of industrial control and automation applications.

• Fast Response Time:
  With a response time of less than 1 ms, the sensor can quickly detect objects and trigger systems that require high-speed operation.

• Wide Voltage Range:
  The 10V to 30V DC voltage range ensures compatibility with a wide variety of industrial power supplies, making it versatile for different setups.

• Wide Operating Temperature Range:
  The sensor can operate in extreme temperatures ranging from -25°C to +70°C, making it suitable for use in both hot and cold environments.
