Mitsubishi MR-JE-70A MR-J2S-70A MR-J3-70A AC servo motor and Driver

Mitsubishi MR-JE-70A MR-J2S-70A MR-J3-70A AC servo motor and Driver in Lahore Pakistan

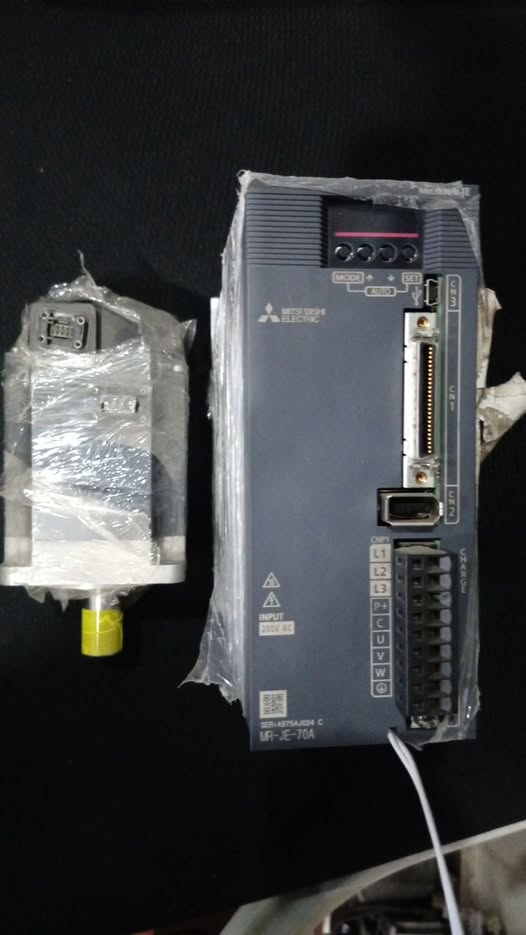

Here are images of the Mitsubishi MR‑JE‑70A, MR‑J2S‑70A, and MR‑J3‑70A AC servo amplifiers for visual reference.

Product Details & Features

1. MR‑JE‑70A (MELSERVO‑JE Series, General‑Purpose Interface)

• Power & Electricals:

  • Rated output: 0.75 kW (750 W), 3-phase 170 VAC, 5.8 A kwoco-plc.comMitsubishi Electric.

  • Accepts 1- or 3-phase 200–240 VAC, 50/60 Hz input kwoco-plc.comMitsubishi Electric.

• Control & Performance:

  • Employs sine‑wave PWM and current control, resulting in precise, smooth motion kwoco-plc.comMitsubishi Electric.

  • Features built‑in dynamic braking for rapid and safe deceleration kwoco-plc.comMitsubishi Electric.

  • High resolution encoder feedback: 131,072 pulses per revolution kwoco-plc.comMitsubishi Electric.

• Communication & Interface:

  • Supports USB (via MR Configurator2) and RS‑422/RS‑485 for multi-axis control and parameter tuning kwoco-plc.comMitsubishi Electric.

• Physical Specs & Compliance:

  • Compact footprint: 70 × 168 × 185 mm, weight: 1.5 kg Mitsubishi Electric Eshopkwoco-plc.com.

  • Certified: CE, UL, RoHS, IP20-rated for industrial use Mitsubishi Electric EshopMitsubishi Electric.

• Advanced Features (Common across MR‑JE-A series):

  • Auto‑tuning & one‑touch tuning for quick setup.

  • Vibration suppression filters (adaptive, resonance, robust).

  • Tough drive, drive recorder, power monitoring, and diagnosis tools Mitsubishi Electric.

  • Full protection suite: overcurrent, overvoltage, thermal, encoder fault, undervoltage, overspeed, and more Mitsubishi Electric.

2. MR‑J2S‑70A (MELSERVO‑J2S Series)

• Power & Compatibility:

  • Operates on 3-phase 200–230 VAC, tolerant to 170–253 VAC fluctuations mitsubishielink.com.

• Motion Control:

  • Uses sine‑wave PWM for smooth, efficient operation mitsubishielink.com.

  • Built‑in dynamic braking for controlled stopping mitsubishielink.com.

• Protection & Reliability:

  • Features overcurrent, overvoltage, thermal overload, and encoder fault protections mitsubishielink.com.

• Performance Capabilities:

  • Pulse input frequency: Up to 500 kpps (differential) or 200 kpps (open-collector) mitsubishielink.com.

  • Supports electronic gear ratios (A: up to 131,072, B: up to 65,535) mitsubishielink.com.

  • Torque and positioning control with analog input (0–10 V) and ±10 revolutions error margin mitsubishielink.com.

  • Speed control: analog (1:2000 range) and internal (1:5000), with ultra-stable performance (<±0.2%) mitsubishielink.com.

• Design & Build:

  • Self-cooled, open structure (IP00), weight ~1.4 kg mitsubishielink.com.

3. MR‑J3‑70A (MELSERVO‑J3 Series)

While specific details weren’t directly retrieved, the MR‑J3 series represents the latest generation with potential enhancements in speed, precision, and integration such as improved connectivity and higher performance. (Images included for visual context.)

How to Use (General Setup Guide)

1. Mounting & Power

   • Securely mount the amplifier in a well-ventilated control cabinet (IP20 rating).

   • Connect the correct power supply (as per model specification). Confirm voltage compatibility and grounding.

2. Motor & Wiring

   • Wire the servo motor via the encoder, power, and brake terminals (if applicable).

   • Ensure proper earthing and correct orientation to prevent faults ManualsLib+1.

3. Signal Configuration & Connections

   • For MR‑JE‑70A: Use USB or RS‑422/RS‑485 for PC or controller interface.

   • For MR‑J2S‑70A: Use differential or open-collector pulse inputs for command signals.

   • Configure I/O signals and analog inputs per documentation ManualsLib+1mitsubishielink.com.

4. Parameter Setup & Tuning

   • One‑touch or auto‑tuning: Ideal for first-time configuration—automatically sets optimal gain parameters ManualsLib+1.

   • Manual tuning: Available when fine-tuning is needed. Use filters and parameter adjustments to refine performance ManualsLibMitsubishi Electric.

5. Operation & Monitoring

   • Use LED displays and control buttons on MR‑JE series for diagnostics and parameter inspection ManualsLib.

   • Monitor via software tools like MR Configurator2 (for MR‑JE) for real-time diagnostics and configuration.

6. Safety & Protection

   • Enable and test all protection mechanisms: overcurrent, regenerative faults, encoder errors, thermal warnings, and overspeed shutdowns.

   • Ensure proper EMI suppression and adherence to safety directives.
