Mitsubishi MR-JE-70A HG-KN73J-S100 Mitsubishi AC servo motor and Driver 750w

Mitsubishi MR-JE-70A HG-KN73J-S100 Mitsubishi AC servo motor and Driver 750w in Lahore Pakistan

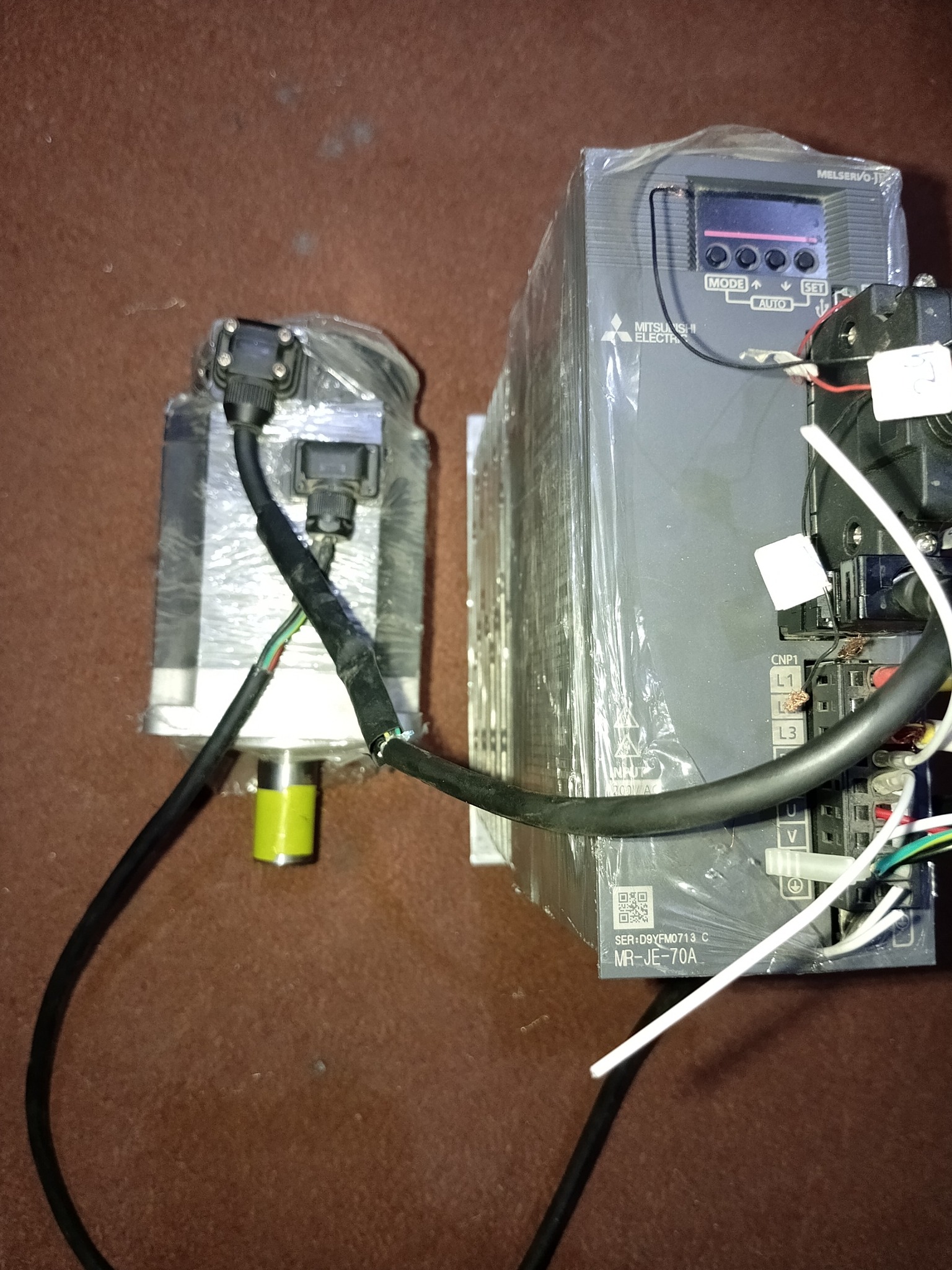

Here are images showing the Mitsubishi HG‑KN73J‑S100 servo motor and its matching MR‑JE‑70A servo amplifier (drive)—a compact, powerful 750 W AC servo system in the MELSERVO‑JE series.

Product Overview: Mitsubishi HG‑KN73J‑S100 & MR‑JE‑70A (750 W AC Servo Motor + Driver)

HG‑KN73J‑S100 Servo Motor (750 W)

• Series & Type: Mitsubishi MELSERVO‑JE, low-inertia, small-capacity HG‑KN series nexinstrument.comphamduongjsc.com.vnBaoAnJSC

• Performance Specs:

  • Rated output: 0.75 kW (750 W)

  • Rated torque: 2.4 N·m

  • Maximum torque: 7.2 N·m

  • Rated speed: 3,000 r/min; max speed: 5,000 r/min; peak permissible: 5,750 r/min kwoco-plc.comBaoAnJSCphamduongjsc.com.vn

• Electrical Data:

  • Rated current: 4.8 A; max current: 14 A kwoco-plc.comBaoAnJSC

• Construction & Environmental:

  • Enclosed design with natural cooling, IP65 rated (dust-tight, splash proof) nexinstrument.com

  • Built-in oil seal and encoder (17-bit, absolute/incremental) kwoco-plc.comBaoAnJSC

  • Ambient operation: 0–40 °C, up to 80 % RH; storage: –15 °C to 70 °C, up to 90 % RH kwoco-plc.comnexinstrument.com

• Mechanical & Mounting:

  • Shaft: Diameter 19 mm; Flange size ~80×80 mm; Weight approximately 3 kg BaoAnJSCnexinstrument.com

  • Load limits: Up to 392 N radial, 147 N thrust; Low rotor inertia (1.28×10⁻⁴ kg·m²) BaoAnJSC

MR‑JE‑70A Servo Amplifier (Drive)

• Series: Mitsubishi MELSERVO‑JE, model MR‑JE‑70A (750 W class) tudonghoahuyhoang.comCodienhaiau.com

• Electrical Specs:

  • Input: 200–240 VAC (single or 3-phase), 50/60 Hz; Rated input current 3.8 A; Output: 170 VAC, 5.8 A, 0–360 Hz tudonghoahuyhoang.comelectronicspanga.comCodienhaiau.com

• Control Modes:

  • Position, speed, and torque control via sine-wave PWM / current control methods tudonghoahuyhoang.comShenzhen Wisdomlong Technology CO.,LTD

• Advanced Features:

  • Auto-tuning, one-touch setup, advanced vibration suppression II, adaptive and robust filters, tough drive, drive recorder, machine diagnostics, power monitoring, and more tudonghoahuyhoang.comCodienhaiau.com

• Interfaces & Safety:

  • Communications: USB, RS-422 (up to 32 axes), optional CC-Link or SSCNET tudonghoahuyhoang.com

  • Encoder: Compatible with 17-bit absolute/incremental encoder (131072 pulses/rev) tudonghoahuyhoang.comkwoco-plc.com

  • Protection: Overcurrent, overvoltage, overload, overheating, encoder errors, undersupply, power failure, overspeed, excessive error tudonghoahuyhoang.comCodienhaiau.com

• Physical & Environmental:

  • Natural cooling design, IP20 rated; Mountable close together; Operating temp 0–55 °C, humidity up to 90 % RH tudonghoahuyhoang.comCodienhaiau.com

  • Physical dimensions ~168 × 70 × 185 mm; Weight ~1.5 kg Codienhaiau.com

Feature Summary

• High Precision, Compact Performance: Ideal for high-speed and accurate position control tasks. Motor delivers 2.4 N·m continuous torque and handles dynamic loads up to 7.2 N·m. kwoco-plc.comBaoAnJSC

• Smart Control Suite: MR‑JE‑70A combines advanced tuning, vibration suppression, filtering, and diagnostic tools to simplify setup and improve performance. tudonghoahuyhoang.comCodienhaiau.com

• Reliable, Robust Design: IP65 motor enclosure, built-in oil seal, encoder, and low-inertia rotor ensure durability under continuous industrial use. nexinstrument.comkwoco-plc.comBaoAnJSC

• Flexible Integration: Offers multiple control modes, monitoring tools, and communication ports for seamless integration with PLCs, operator interfaces, or multi-axis systems. tudonghoahuyhoang.comCodienhaiau.com

How to Use (Setup Guide)

1. Mounting & Wiring

   • Secure the motor to your machine frame using the flange and connect the cables through the built-in connectors.

   • Hook up power to the MR‑JE‑70A drive (200–240 VAC) and connect the motor encoder and control interface (USB/RS-422).

2. Initial Configuration

   • Launch the MR Configurator2 software on PC via USB cable. Detect and configure the drive; select control mode (position, speed, torque). tudonghoahuyhoang.com

   • Enable auto-tuning or one-touch tuning to calibrate motor parameters quickly.

3. Operation & Monitoring

   • Use the drive's advanced filters and vibration suppression to maintain smooth motion, especially under varying loads.

   • Monitor operation via drive recorder and diagnostics (e.g., torque, position error, power usage).

4. Integration & Protection

   • Configure digital/analog I/O and (if needed) CC-Link or SSCNET for PLC or networked operation.

   • Ensure protection features are set (overheat, overspeed, voltage fluctuation) for safe operation.

5. Maintenance

   • Periodically check cooling vents, power connections, and encoder stability. Clean as needed for optimal performance.

Suggested Website Copy (for Product Page)

Title:
Mitsubishi MELSERVO‑JE 750 W Servo Kit — HG‑KN73J‑S100 + MR‑JE‑70A

Overview:
Compact yet powerful, the MELSERVO‑JE combo—from the low-inertia HG‑KN servo motor to the smart MR‑JE‑70A drive—delivers high-precision motion control backed by advanced diagnostics and smooth setup features.

Highlights:

• 750 W motor with 2.4 N·m continuous torque and capability up to 7.2 N·m

• 3,000 r/min rated speed, IP65-rated enclosed body, built-in 17-bit encoder

• Auto-tuning & vibration suppression, robust filters, and diagnostic tools for quick, reliable setup

• Multi-mode control (position, speed, torque) with USB and field network connectivity

• Comprehensive protection features including overcurrent, overspeed, and power-failure safety

Ideal For:
CNC systems, high-speed pick-and-place, robotics, packaging, conveyor control, and other precision motion applications.
