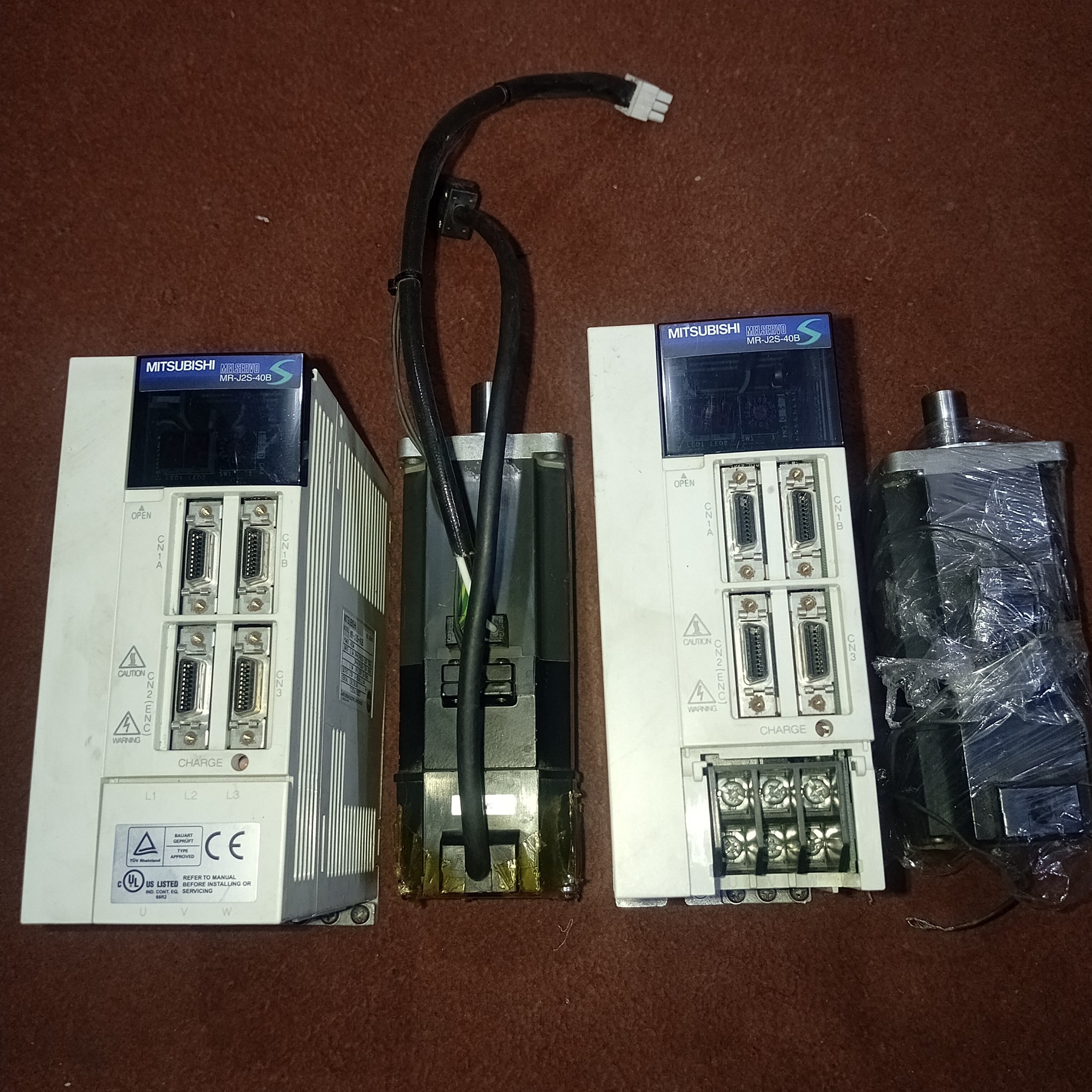

Mitsubishi MR-J2-20A MR-J2S-70A MR-J3-70A MR-JE-70A MR-J2S-70A AC servo motor and Driver

Mitsubishi MR-J2-20A MR-J2S-70A MR-J3-70A MR-JE-70A MR-J2S-70A AC servo motor and Driver 100w 200w 400w 750w 1kw 1.5kw 2kw 2.5kw 3kw 5kw in Lahore Pakistan

Certainly! Below is a complete product detail write-up for your website featuring the Mitsubishi AC Servo Motors and Drivers across various models and power ranges. This content is tailored for a professional product page and includes a usage guide and feature highlights.

🚀 Mitsubishi AC Servo Motors & Drivers

Models: MR-J2-20A, MR-J2S-70A, MR-J3-70A, MR-JE-70A, MR-J2S-70A
Power Options: 100W / 200W / 400W / 750W / 1kW / 1.5kW / 2kW / 2.5kW / 3kW / 5kW

🔧 Product Overview

Mitsubishi’s MR-J series AC servo motors and drivers are globally recognized for their high precision, reliability, and advanced motion control capabilities. These servo systems are widely used in CNC machinery, robotics, factory automation, packaging, textile, and printing industries. The series includes a wide range of models like MR-J2, MR-J2S, MR-J3, MR-JE, covering various performance levels and torque capacities.

Paired with matching servo amplifiers (drivers), these motors offer exceptional speed control, positioning accuracy, and dynamic performance.

📦 Available Models and Power Ratings

⭐ Key Features

• High-Precision Control: Mitsubishi’s real-time feedback systems provide micron-level precision.

• Wide Power Range: From 100W to 5kW, suitable for light to heavy industrial automation.

• Fast Response: Excellent acceleration and deceleration capabilities improve cycle times.

• Auto-Tuning Function: The system automatically adjusts for optimal performance.

• Integrated Safety Features: Overload, overvoltage, and overheating protection.

• Energy Efficient: Reduced power consumption through advanced power management.

• Compact Design: Space-saving footprint for easier integration.

• Flexible Communication: Supports SSCNET, CC-Link, and Modbus networks depending on model.

🛠️ How to Use

1. Installation:

• Mount the servo motor securely on your machine frame using the appropriate brackets or flange.

• Ensure the servo shaft is properly coupled with the mechanical load (e.g., ball screw, gear, belt).

• Install the matching Mitsubishi servo amplifier in your control panel.

2. Wiring & Connections:

• Connect power supply lines to the driver (input AC supply as per model).

• Wire the servo motor phases to the driver output terminals.

• Connect encoder cable from motor to driver for feedback.

• Interface driver with motion controller (e.g., CNC controller or PLC) via Step/Dir or SSCNET.

3. Configuration:

• Set parameters using the Mitsubishi software (MR Configurator) or onboard DIP switches.

• Perform auto-tuning for optimal response depending on the mechanical load.

• Input desired motion profiles through your control system.

4. Operation:

• Power on the system and run tests to ensure smooth, error-free motion.

• Monitor driver and motor status on display panel or through the software.

• Operate in position, velocity, or torque control mode based on your application.

5. Maintenance:

• Periodically inspect wiring, cooling fans, and connectors.

• Clean external surfaces and ensure cooling vents are dust-free.

• Check for encoder signal integrity and drive health indicators.

🧰 Applications

• CNC Milling and Lathe Machines

• Industrial Robotics

• Printing and Packaging Lines

• Textile and Embroidery Machines

• Electronic Assembly Automation

• Conveyor Systems

• Pick-and-Place Machines

• Injection Molding Machines

📌 Quick Specs Summary
