Product Name:

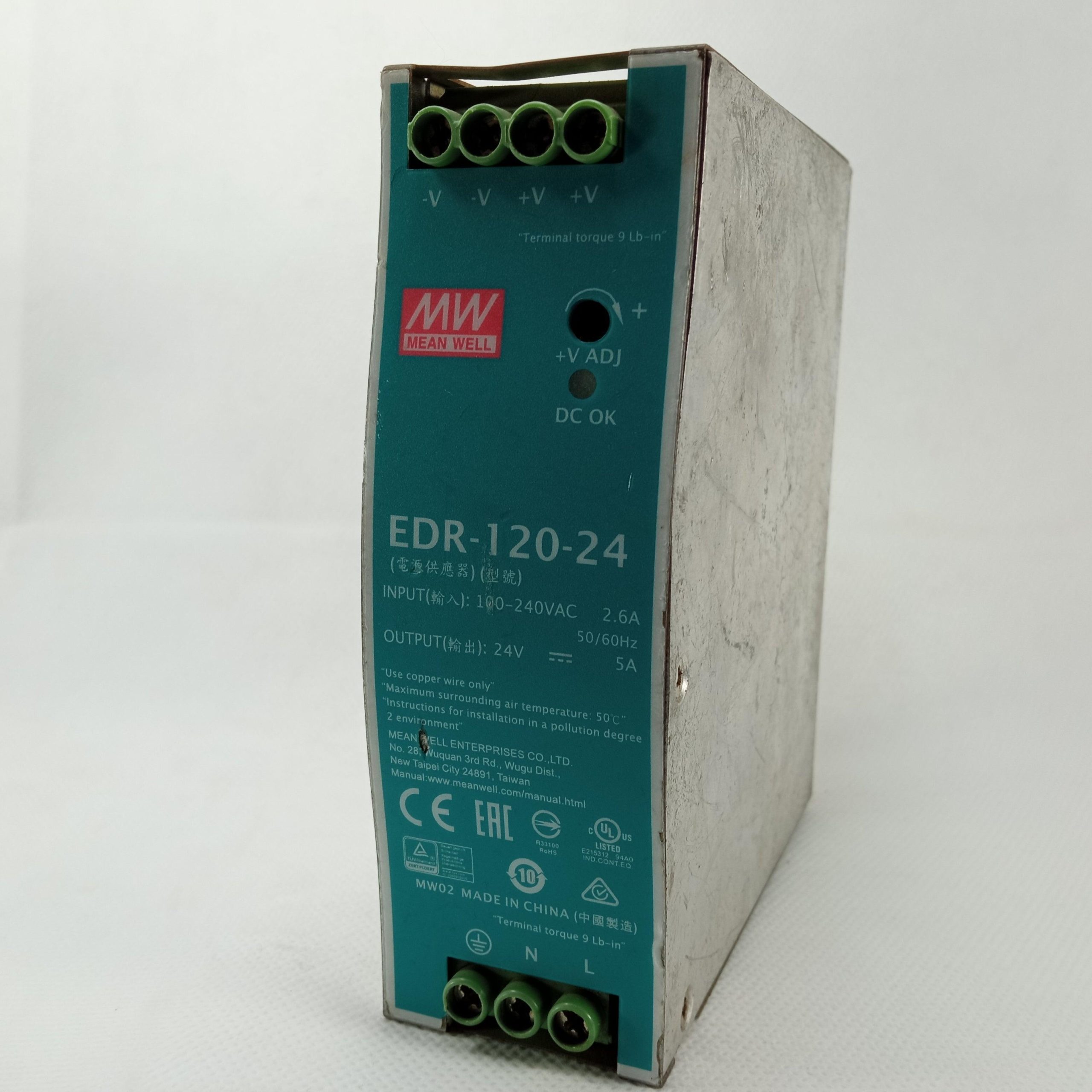

Mean Well EDR-120-24 Industrial DIN Rail Power Supply (120W, 24V 5A)

Description:
The Mean Well EDR-120-24 is a high-quality DIN rail mounted industrial power supply that delivers 24V DC at 5A (120W). It is designed for control panels, automation systems, machinery, and factory equipment requiring stable and efficient power. Featuring wide input voltage support, high efficiency, and full protection mechanisms, it is a reliable choice for industrial environments.

Specifications:

• Model: EDR-120-24

• Output Voltage: 24V DC

• Output Current: 5A

• Power Output: 120W

• Input Voltage Range: 90–264V AC, 127–370V DC

• Mounting: DIN Rail (TS-35/7.5 or 15)

• Efficiency: Up to 88%

• Cooling: Natural air convection (fanless design)

• Protections: Overload, Over-voltage, Short-circuit, Over-temperature

• Operating Temperature: -20°C to +60°C

• Dimensions: Compact and slim housing for easy DIN rail installation

• Certifications: CE, UL, TUV, CB

⚙️ How to Use

1. DIN Rail Mounting: Clip the power supply securely onto a standard DIN rail in your control panel or enclosure.

2. Input Connection: Connect AC mains (L = Live, N = Neutral, ⏚ = Earth) to the input terminals.

3. Output Connection: Connect your 24V DC equipment to the +V and -V terminals.

4. Check Load: Ensure connected devices do not exceed 5A / 120W.

5. Power ON: The supply provides regulated 24V DC power to your system.

🌟 Features

• ✅ Stable Output: Provides 24V DC at 5A (120W).

• ✅ Wide Input Range: Operates on 90–264V AC or 127–370V DC.

• ✅ Industrial Design: DIN rail mounting for control panels and automation systems.

• ✅ Reliable Performance: High efficiency (up to 88%) and fanless cooling.

• ✅ Built-in Protections: Short-circuit, overload, over-voltage, and thermal.

• ✅ Durable Construction: Designed for long service life in industrial environments.

• ✅ Global Certifications: CE, UL, and TUV approved for safety and compliance.

• ✅ Versatile Applications: Ideal for factory automation, PLC systems, sensors, control panels, and industrial machinery.
