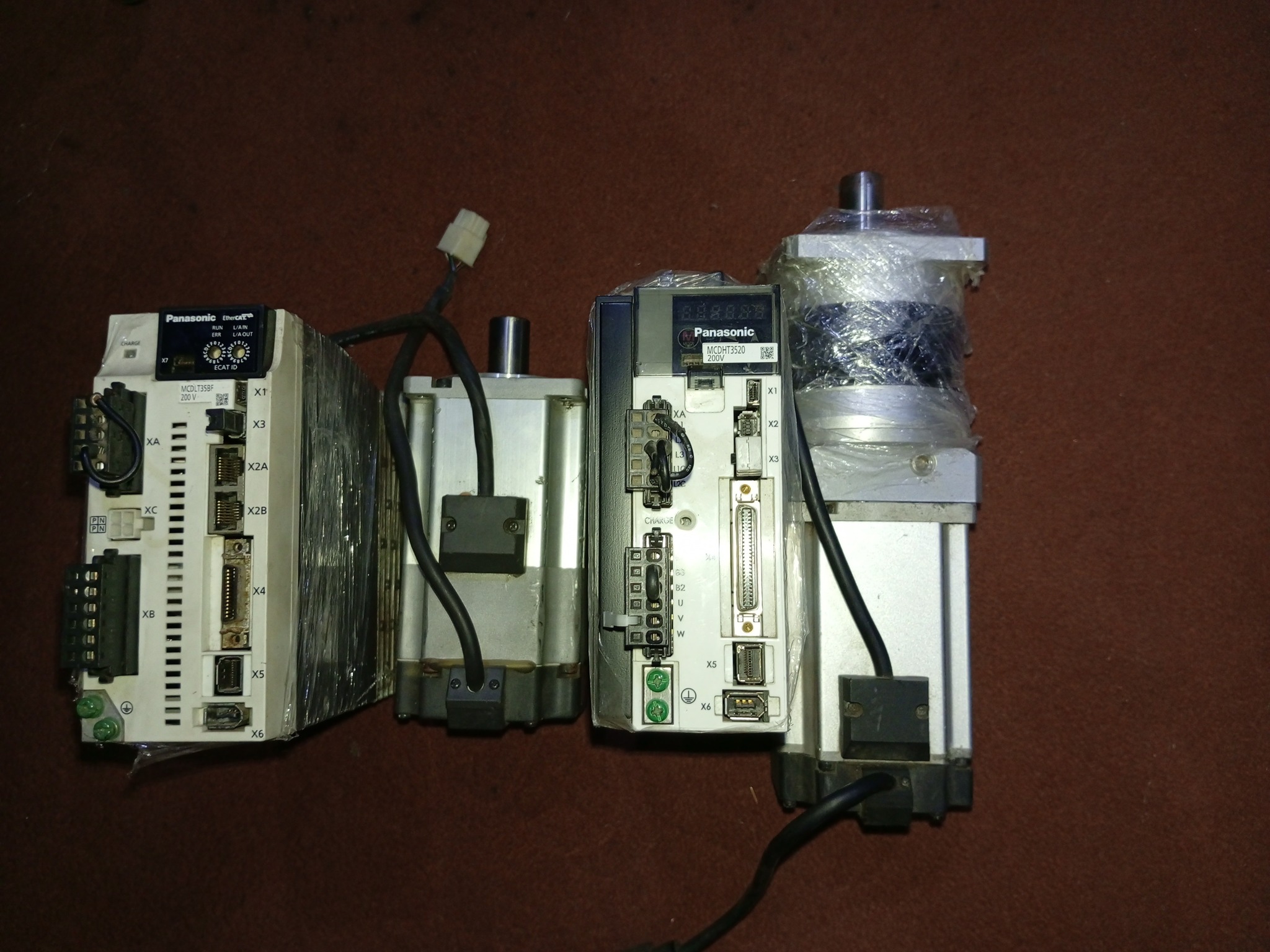

MCDHT3520 750w Panasonic AC servo motor and Driver

MCDHT3520 750w

Panasonic AC servo motor and Driver in Lahore Pakistan

Product Overview for Website

Product Name

• Servo Driver: Panasonic MCDHT3520 (MINAS A5 Series)

• Servo Motor: Panasonic MSMD082G1… (750 W, without brake)

Product Details: Servo Driver – MCDHT3520

Key Specifications:

• Series: MINAS A5 family; designed for position, velocity, torque, and full-closed control modes with integrated safety functions industry.panasonic.com.

• Power Handling: Supports 200–240 V single‑phase or three‑phase input; delivers up to 30 A output current industry.panasonic.comDigiKey.

• Response Bandwidth: High-speed response at 2.3 kHz industry.panasonic.com.

• Encoder Interfaces: Accepts both 17-bit absolute and 20-bit incremental encoder feedback systems industry.panasonic.com.

• I/O & Communications:

  • General-purpose inputs: 10; outputs: 6

  • Analog I/O: 3 inputs (1×16-bit, 2×12-bit), 2 analog monitor outputs

  • Pulse I/O: 2 photo-coupler inputs, 4 outputs (line driver and open collector)

  • Communications: USB, RS‑232 (1:1), RS‑485 (1 to max 31) industry.panasonic.com.

• Regeneration: Built-in regenerative resistor supported (also allows external resistor) industry.panasonic.com.

• Dimensions & Mounting: Compact chassis—65 × 150 × 170 mm, weighing approximately 1.6 kg industry.panasonic.comDigiKey.

• Status: Product is discontinued; last‑time‑buy available industry.panasonic.com.

Key Features:

• Versatile multi-mode control with safety features (STO compliant)

• High-bandwidth, low-latency performance for complex motion tasks

• Flexible interfacing for integration in modern automation systems

Product Details: Servo Motor – MSMD082G1 (750 W)

Overview:

• Matches with the MCDHT3520 driver; part of Panasonic’s MINAS A5 series of servo motors systemenergyworks.comtradeKorea.

• Available in without brake (MSMD082G1U) and with brake (MSMD082G1V) variants systemenergyworks.comtradeKorea.

• Performance:

  • Rated power: 750 W

  • Nominal speed: 3000 rpm; maximum up to 4500 rpm

  • Rated torque: approx. 9.55 Nm; peak torque: around 43 Nm ghv.de.

• High-inertia motor suitable for precision, high-dynamic motion tasks.

How to Use: Setup & Operation

1. Installation & Wiring:

   • Mount driver securely in control cabinet; connect motor windings and encoder cables correctly.

   • Provide clean 200–240 V power input.

   • Grounding and shielded cabling recommended for signal integrity.

2. Encoder & I/O Configuration:

   • Configure encoder type (17-bit absolute or 20-bit incremental) via parameters.

   • Program the general-purpose inputs/outputs as needed through setup software (USB/RS‑232/485).

3. Mode Selection:

   • Use the tuning tool (e.g., Panasonic Panaterm) via USB to configure control mode (position, velocity, torque, or full-closed) ghv.deindustry.panasonic.com.

4. Tuning & Calibration:

   • Employ built-in auto-tuning to optimize response and stability.

   • Adjust filters and damping manually or set to auto for best performance ghv.de.

5. Start-Up Testing:

   • Conduct initial no-load jog test to verify control behavior.

   • Incrementally increase load and monitor temperature, vibrations, and accuracy.

6. Monitoring & Safety:

   • Monitor status via analog outputs or communication interfaces.

   • Safety features like STO must be wired correctly to ensure compliance.

Why Include These Components?

• High Precision: Advanced encoder feedback and multi-mode control deliver sub-micron positioning and smooth dynamical motion.

• Robust Performance: High torque, rapid response, and built-in safety (STO) ensure reliability in demanding environments.

• Integration Flexibility: Broad range of I/O and interfaces suit custom automation, robotics, packaging, and CNC integration.

• Long-Term Value: Although discontinued, still highly regarded in industrial applications and available via last-time-buy distribution.

Sample Website Section Outline

Title: Panasonic MINAS A5 750 W Servo System – Motor (MSMD082G1) + Driver (MCDHT3520)

Description:

This high-performance Panasonic MINAS A5 servo system combines a 750 W AC servo motor with a compact, feature-rich MCDHT3520 driver. Designed for precise multi-mode control (position, speed, torque, full-closed) with robust safety features and high-speed response technologies—make it ideal for advanced automation.

Specifications:

• Driver: MCDHT3520 (30 A output, 2.3 kHz bandwidth, USB/RS‑232/485)

• Motor: MSMD082G1U/V (750 W, 3000 rpm base speed, ~9.6 Nm torque)

• Dimensions & Weight: Driver – 65×150×170 mm, 1.6 kg; Motor – as per datasheet (e.g., 3 kg)

Usage Guide:

• Mounting guidance, encoder wiring, mode configuration

• Tuning via Panaterm tool and safety integration (STO)

• No-load start-up and full-load verification steps

Features Highlight:

• Multi-mode adaptive control

• Safety compliant (STO)

• Wide interface support

• High dynamic performance and tuning capability
