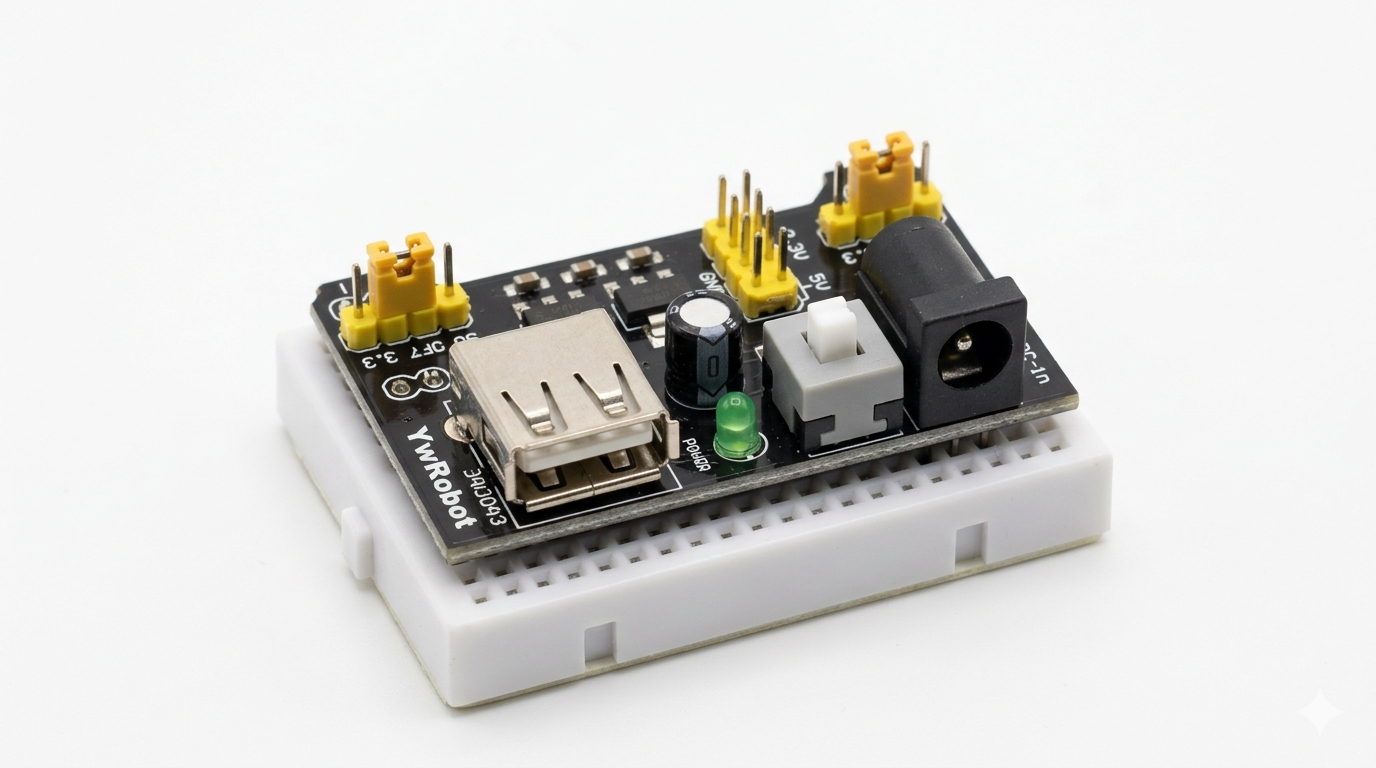

🔌 MB102 Breadboard Power Supply Module – 3.3V / 5V for Arduino & Solderless Breadboard

✅ Product Overview

The MB102 Breadboard Power Supply Module is a compact and essential tool for electronics prototyping. Designed to plug directly into a standard solderless breadboard, it provides a clean and regulated 3.3V and 5V output, selectable via onboard jumpers.

Ideal for Arduino, Raspberry Pi, ESP8266, and other microcontroller-based projects, this power module is powered by either a DC barrel jack (7–12V) or USB input, making it highly versatile for bench or portable use.

✨ Key Features

  • 🔌 Dual Output Voltage: 3.3V and 5V regulated outputs

  • ⚡ Dual Rail Powering: Powers both breadboard power rails independently

  • 🛡️ Onboard Voltage Regulators: AMS1117-3.3 and AMS1117-5.0 for stable power

  • 🔄 Voltage Selection Jumpers: Switch between 3.3V or 5V per rail

  • 🧩 Compatible with MB102 breadboards (standard 830-point layout)

  • 🔋 Two Power Input Options: USB (5V) or DC jack (7–12V recommended)

  • 💡 Power Status LEDs: Visual indicator for power-on status

  • 🔒 Built-in Protection: Short-circuit and over-current protection

📐 Specifications

Specification Details
Input Voltage (DC Jack) 6.5V – 12V DC
Input Voltage (USB) 5V USB
Output Voltages 3.3V / 5V (selectable via jumper)
Output Current (max) Up to 700mA total
Regulators AMS1117-3.3, AMS1117-5.0
USB Port USB-A female (for power input only)
On/Off Switch Yes
Power Rails Dual output for both sides of breadboard
Dimensions ~5.3cm × 3.5cm

🧰 How to Use the MB102 Power Supply Module

🛠️ Step-by-Step Guide:

  1. Insert the Module into a solderless breadboard (compatible with MB102 layout).

  2. Select Output Voltage:

    • Use jumpers to choose 3.3V or 5V for each power rail (left/right).

  3. Connect Power Source:

    • Option 1: Use a DC adapter (center-positive, 7–12V recommended)

    • Option 2: Plug in via USB port (5V USB cable or power bank)

  4. Flip the Switch ON – Power LED lights up.

  5. Start powering your Arduino, ESP8266, sensors, or other components directly from the breadboard rails.

⚠️ Note: Do not use USB and DC input at the same time. Choose one power source only.

🎯 Applications

  • Powering Arduino/ESP/Raspberry Pi prototypes

  • Breadboard testing of sensors, LEDs, ICs, and modules

  • Educational and electronics learning kits

  • Rapid prototyping and circuit development

  • Power supply for small robotics projects

📦 What’s Included

  • 1 × MB102 Breadboard Power Supply Module

  • 2 × Voltage selection jumpers (pre-installed)

🏷️ Suggested SEO Product Titles

  • MB102 3.3V/5V Breadboard Power Supply Module for Arduino – USB & DC Input

  • Dual Voltage Breadboard Power Module – MB102 Compatible, 3.3V/5V Output

  • MB102 Power Supply Adapter Module for Solderless Breadboard Projects

⚠️ Important Usage Tips

  • Maximum output is limited to 700mA — not suitable for motors or high-power devices

  • Ensure correct jumper selection before powering devices

  • Always check for proper polarity and input voltage range

  • Use only with standard MB102 solderless breadboards
