MA860C DM860H M556C M542C Leadshine Micro-stepper Motor and Driver in Lahore Pakistan
Here are images of the Leadshine MA860C, DMA860H, M556C, and M542C micro-stepper drivers to give you a visual reference.
Product Overview & Features

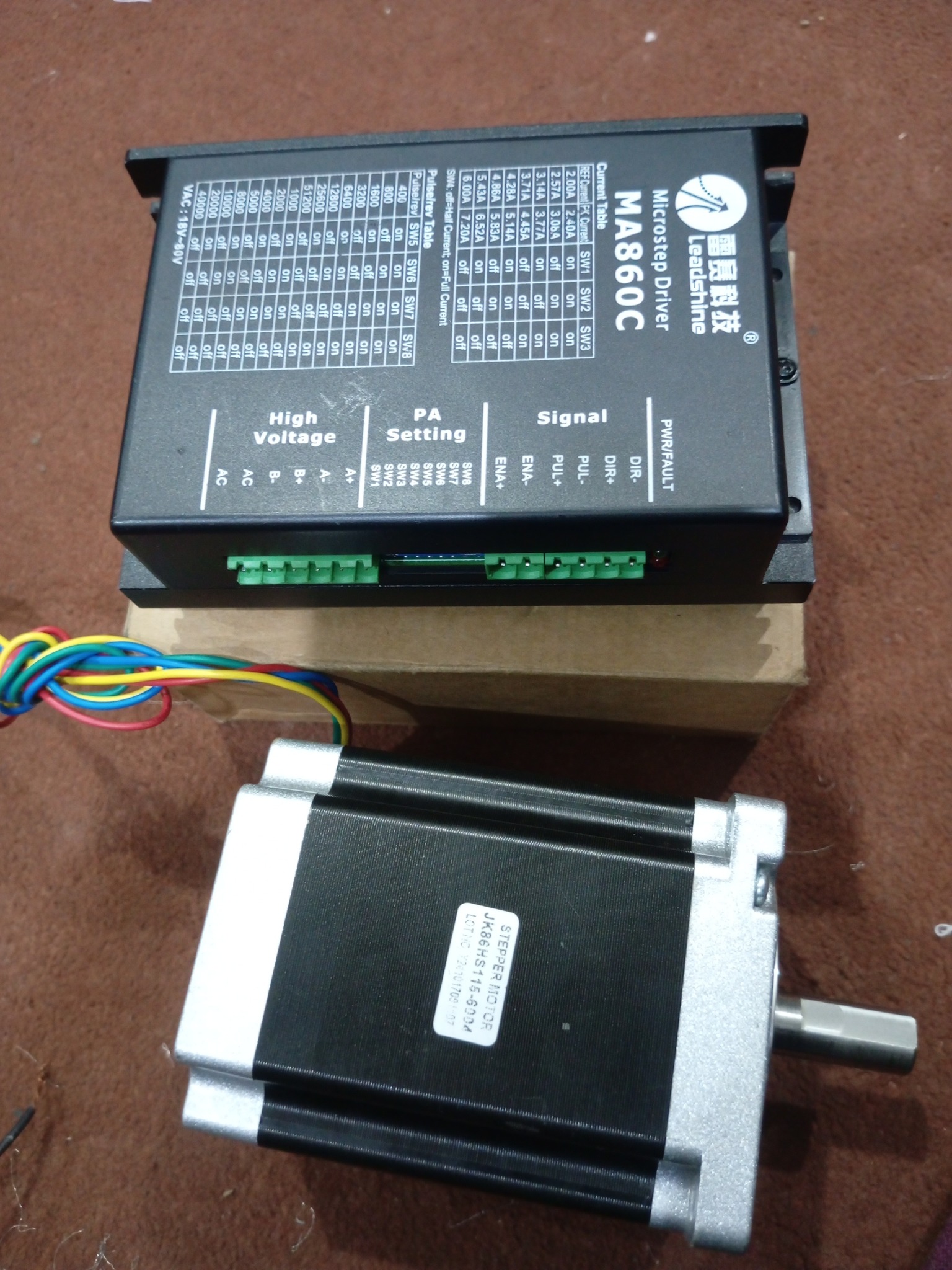

1. MA860C – Fully Digital Stepper Driver
-
Advanced DSP-based driver offering extremely smooth motor control and optimized torque via pure-sinusoidal current management ManualsLibeaglecnctec.com.
-
Specs:
-
Supply Voltage: Up to 80 VAC or 110 VDC wewinlaser.comeaglecnctec.com.
-
Output Current: Up to 7.2 A peak (5.1 A RMS) ManualsLibmro.ecvv.com.
-
Microstepping: 16 selectable resolutions (in both decimal and binary), up to 51,200 steps/rev ManualsLibmro.ecvv.com.
-

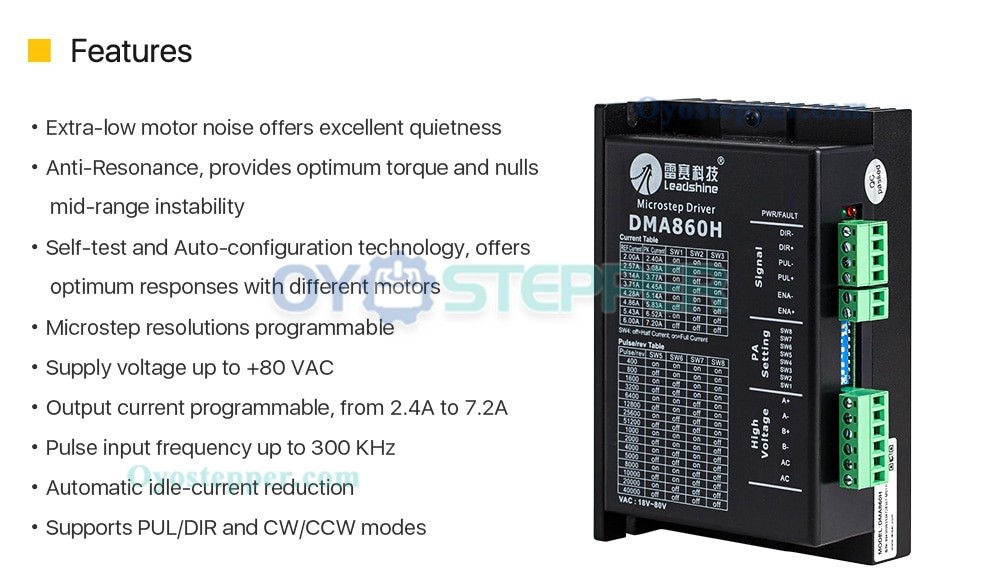

2. DMA860H – Updated High-Performance Driver
-
Similar to the MA860H with 32-bit DSP, featuring auto motor tuning and minimal noise/heating eaglecnctec.com+1.
-
Specs:
-
Voltage: 18–80 VAC or 24–110 VDC store.zenix.lkeaglecnctec.com.
-
Current: 2.4–7.2 A peak via DIP switch settings store.zenix.lkmachviet.com.
-
Microstep Resolution: 16 levels, up to 51,200 steps/rev store.zenix.lkmachviet.com.
-
Input: Optical isolation (TTL-compatible), up to 200–300 kHz pulse frequency machviet.comstore.zenix.lk.
-
Protections: Over-current, over-voltage, short-circuit store.zenix.lkeaglecnctec.com.
-

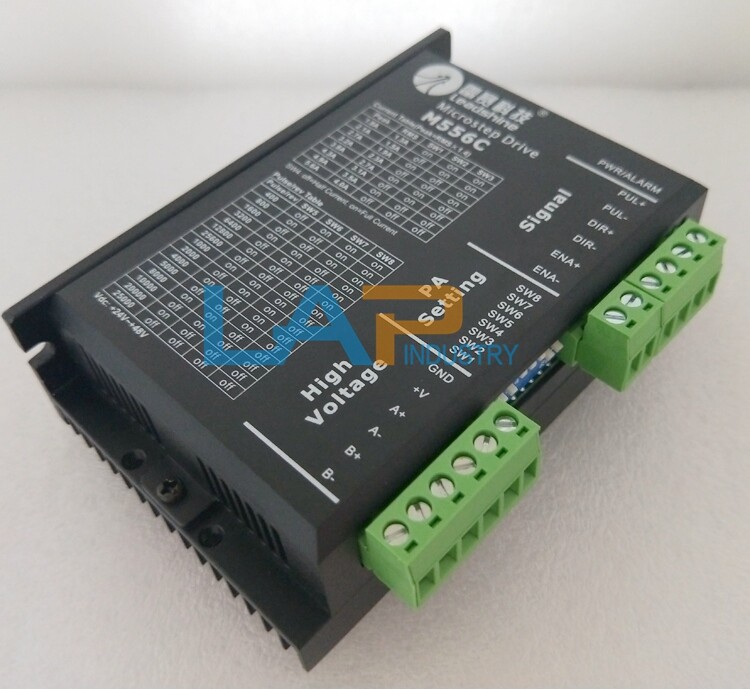

3. M556C – Cost-Effective Microstep Driver
-
Digital driver delivering smooth motion with anti-resonance and low motor heating EnduranceRobots.
-
Specs:
-
Voltage: 20–50 VDC.
-
Current: Up to 5.6 A via DIP switches EnduranceRobots.
-
Auto motor identification and configuration for optimal performance EnduranceRobots.
-
4. M542C – Affordable Digital Stepper Driver
-
Utilizes DSP microstepping and anti-resonance tech to deliver smooth, efficient performance with reduced noise and heat EnduranceRobots.
-
Specs:
-
Voltage: Typically 20–50 VDC.
-
Current: Configurable via DIP switch (1–5 A typical range).
-
Supports similar features as M556C, optimized for smaller NEMA motors.
-
Quick Comparison
| Model | Voltage Range | Peak Current | Microstep Resolution | Key Features |
|---|---|---|---|---|
| MA860C | ≤ 80 VAC / 110 VDC | Up to 7.2 A | Up to 51,200 steps/rev | Smooth, low-noise DSP control |
| DMA860H | 18–80 VAC / 24–110 VDC | 2.4–7.2 A | Up to 51,200 steps/rev | Auto-tuning, optical isolation, sturdy protection |
| M556C | 20–50 VDC | Up to 5.6 A | Through DIP switch setting | Cost-effective, self-configuring |
| M542C | 20–50 VDC | ~1–5 A | Through DIP switch | Low-cost, anti-resonance, compact design |
How to Use & Setup Guide
Wiring & Powering
-
Power Input: Connect appropriate power (as per model specs). Leave margin above required voltage for stable performance; high voltage improves speed but can increase noise/heating wewinlaser.comstore.zenix.lk.
-
Motor Connections: Wire your 2‑ or 4‑phase stepper motor to the A+/A− and B+/B− terminals.
Configuration via DIP Switches
-
Set Current: For MA860C/DMA860H/M556C, use DIP switches SW1–SW3 to select output current EnduranceRobotsmro.ecvv.com.
-
Set Holding Current: SW4 toggles between full or reduced idle/holding current for heat efficiency EnduranceRobots.
-
Set Microstep Resolution: Use SW5–SW8 to choose microstep settings (e.g., 400, 3200, up to 51,200 steps/rev) EnduranceRobotsmro.ecvv.com.
Signal Inputs & Pulse Configuration
-
Use PUL/DIR or CW/CCW pulse signals. Inputs are optically isolated—protect logic side if using high voltage wewinlaser.comstore.zenix.lk.
-
Keep pulse wiring separated from motor cables to reduce interference wewinlaser.com.
Operation & Safety
-
Auto-configuration: MA860C and DMA860H can auto-tune for optimal motor performance eaglecnctec.com+1.
-
Soft Start: Prevents motor jerks during startup store.zenix.lkmachviet.com.
-
Protection: Each driver includes over-current, over-voltage, and short-circuit protections to safeguard both motor and driver store.zenix.lkeaglecnctec.com.
Summary Flow for Setup
-
Mount driver on a well-ventilated surface.
-
Apply power within specified range, allow a margin.
-
Wire motor phases and pulse control inputs.
-
Set DIP switches for current and resolution.
-
Power on, check for smooth and quiet motion.
-
Fine-tune as needed via microstep settings or current tweaks.
Final Thoughts
Each of these Leadshine drivers offers a blend of precision, reliability, and ease of use:
-
MA860C is ideal when ultimate smoothness and flexibility are key.
-
DMA860H adds auto-tuning and robust protection—perfect for demanding CNC or automation equipment.
-
M556C balances performance with cost-efficiency.
-
M542C is great for compact, budget-sensitive applications.
