M18 Sensor 24V 2wire (lot )

M18 Sensor 24V 2wire (lot ) in Lahore Pakistan

🔧 Product Name:

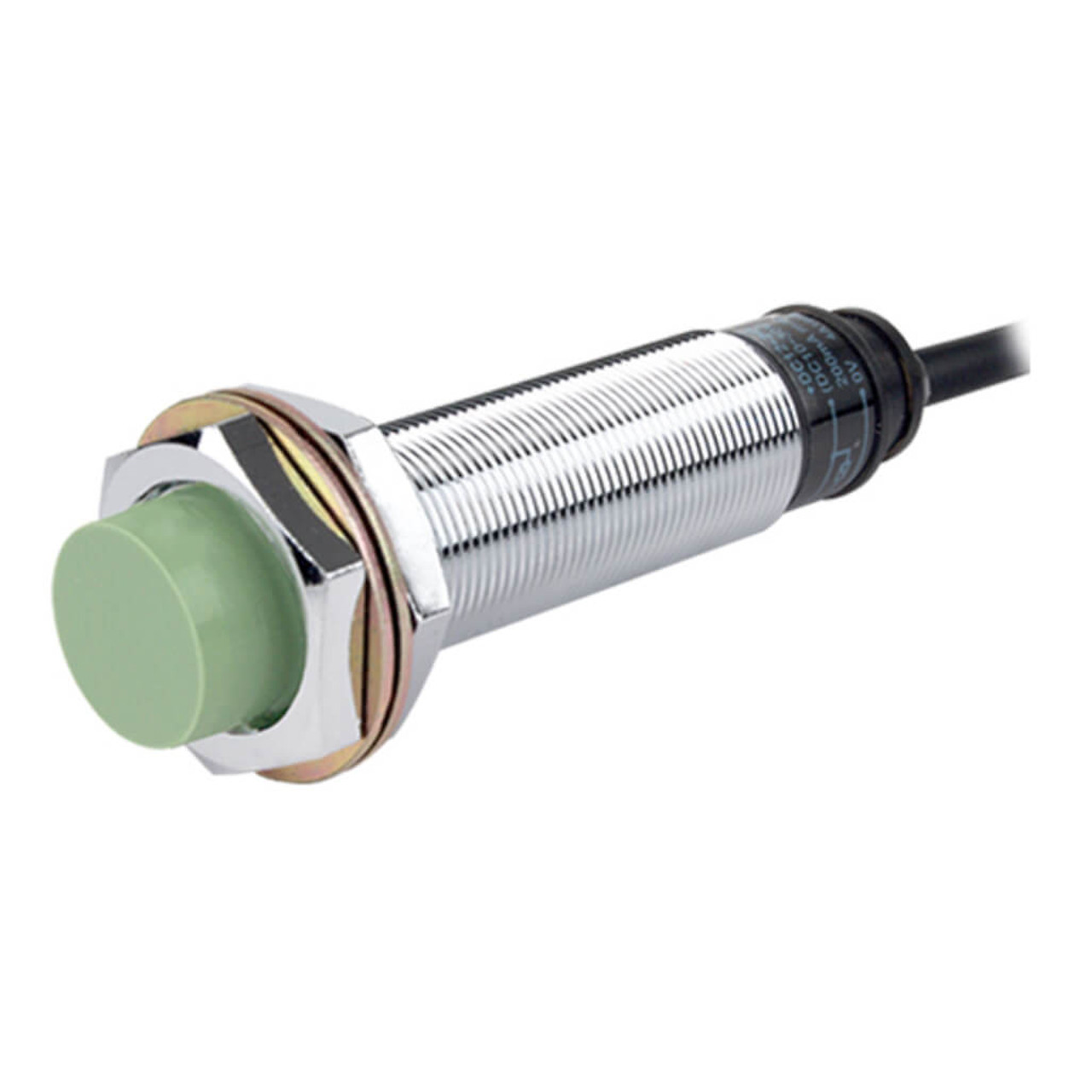

M18 Inductive Proximity Sensor 24V DC, 2-Wire – Lot Pack

📝 Product Description:

The M18 Inductive Proximity Sensor (24V DC, 2-wire type) is a robust and reliable non-contact sensor designed for detecting metallic objects. With its cylindrical M18 housing and 2-wire configuration, it is easy to integrate into a wide variety of industrial automation systems.

Perfect for applications requiring fast, repeatable metal detection, this sensor is ideal for object counting, positioning, or end-of-travel detection. Supplied in lot quantities, it’s suitable for OEMs, panel builders, or maintenance teams seeking cost-effective solutions for high-volume use.

🔍 Key Features:

• Sensor Type: Inductive proximity sensor (metal detection)

• Operating Voltage: 10 – 30V DC (typically 24V DC)

• Wiring Type: 2-wire configuration (simplifies installation)

• Housing Size: M18 threaded cylindrical body for easy mounting

• Sensing Distance: Typically 5mm to 8mm (depends on target and model)

• Output Type: Normally open (NO) or normally closed (NC) depending on variant

• Mounting: Flush or non-flush (check datasheet or model variant)

• Protection Rating: IP67 – suitable for harsh industrial environments

• Build Material: Nickel-plated brass or stainless steel housing options

• LED Indicator: Built-in for visual status confirmation

• Polarity & Short-Circuit Protection: Built-in for system safety

• Pack Option: Supplied in lot quantity – ideal for bulk use or replacements

📦 How to Use:

1. Mounting:

• Use the threaded M18 body to mount the sensor securely using mounting brackets or nuts.

• Align the sensing face toward the target metal object.

• Maintain correct sensing distance and avoid nearby metal interference if using flush-mount models.

2. Wiring:

• Connect the brown wire to +24V DC.

• Connect the blue wire to 0V (GND).

• Being a 2-wire sensor, the load (such as a relay or PLC input) is connected in series with the sensor and power supply.

3. Operation:

• When a metal target enters the sensing range, the sensor changes its output state.

• The LED indicator will turn on (or off) to signal detection.

• The connected controller or device receives the signal to trigger the next process.

✅ Applications:

• Conveyor system object detection

• Assembly line automation

• Packaging equipment

• Industrial robots

• End-position sensing on actuators

• Count and speed monitoring systems

• Machine safety interlocks

🔄 Advantages of 2-Wire Configuration:

• Simplified wiring – no need for separate power and signal lines

• Cost-effective for retrofitting or panel space limitations

• Compatible with many PLCs and relay logic systems
