Linear Slide Bearing HGH15CA HGH20CA HGH25CA SUF 2005 BKBF
₨0
Need some help?
Contact Us
Product Ships in
2-3-business Days
Payment Methods:
Linear Slide Bearing HGH15CA HGH20CA HGH25CASUF 2005 BKBF in Lahore Pakistan

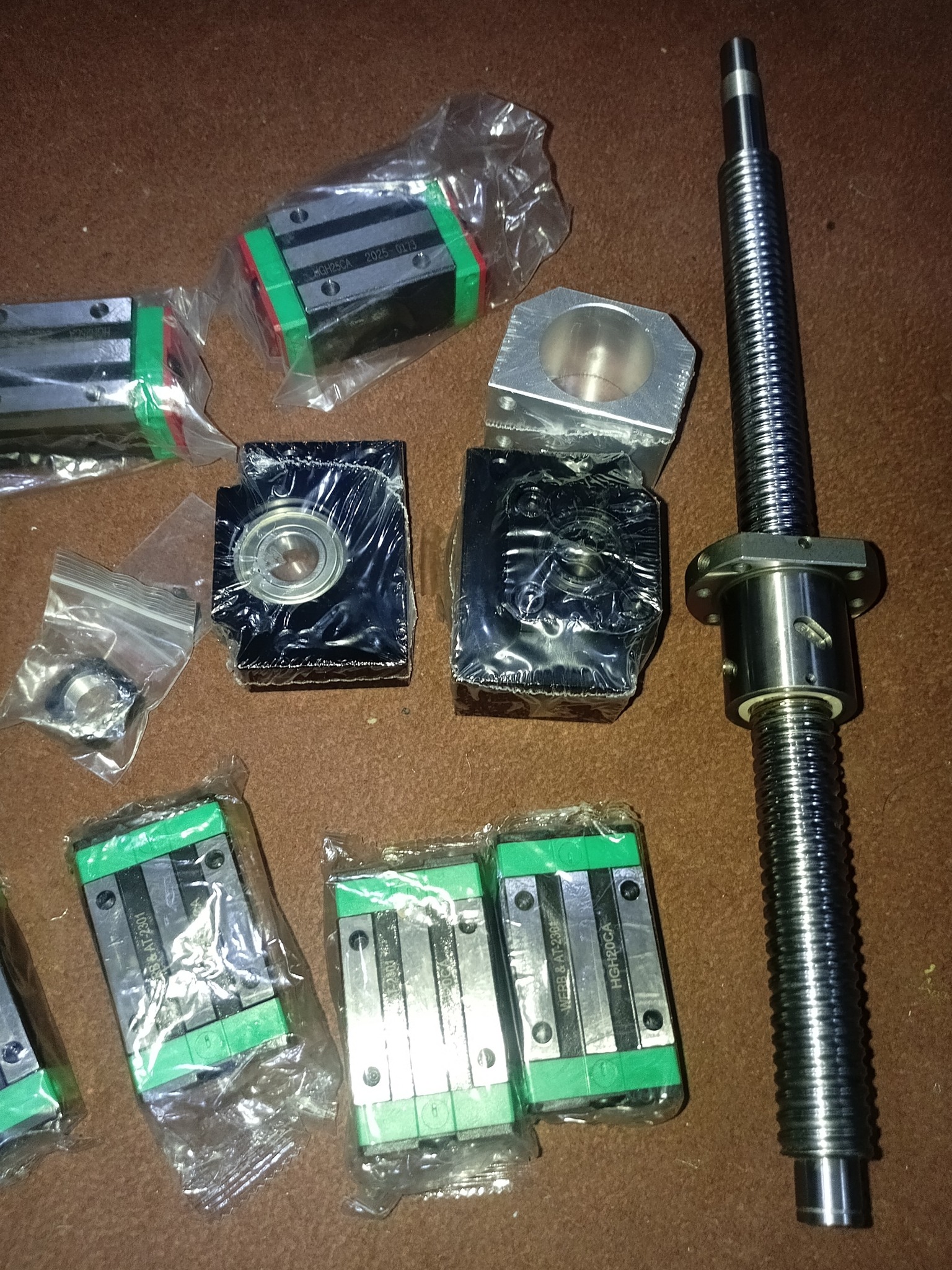

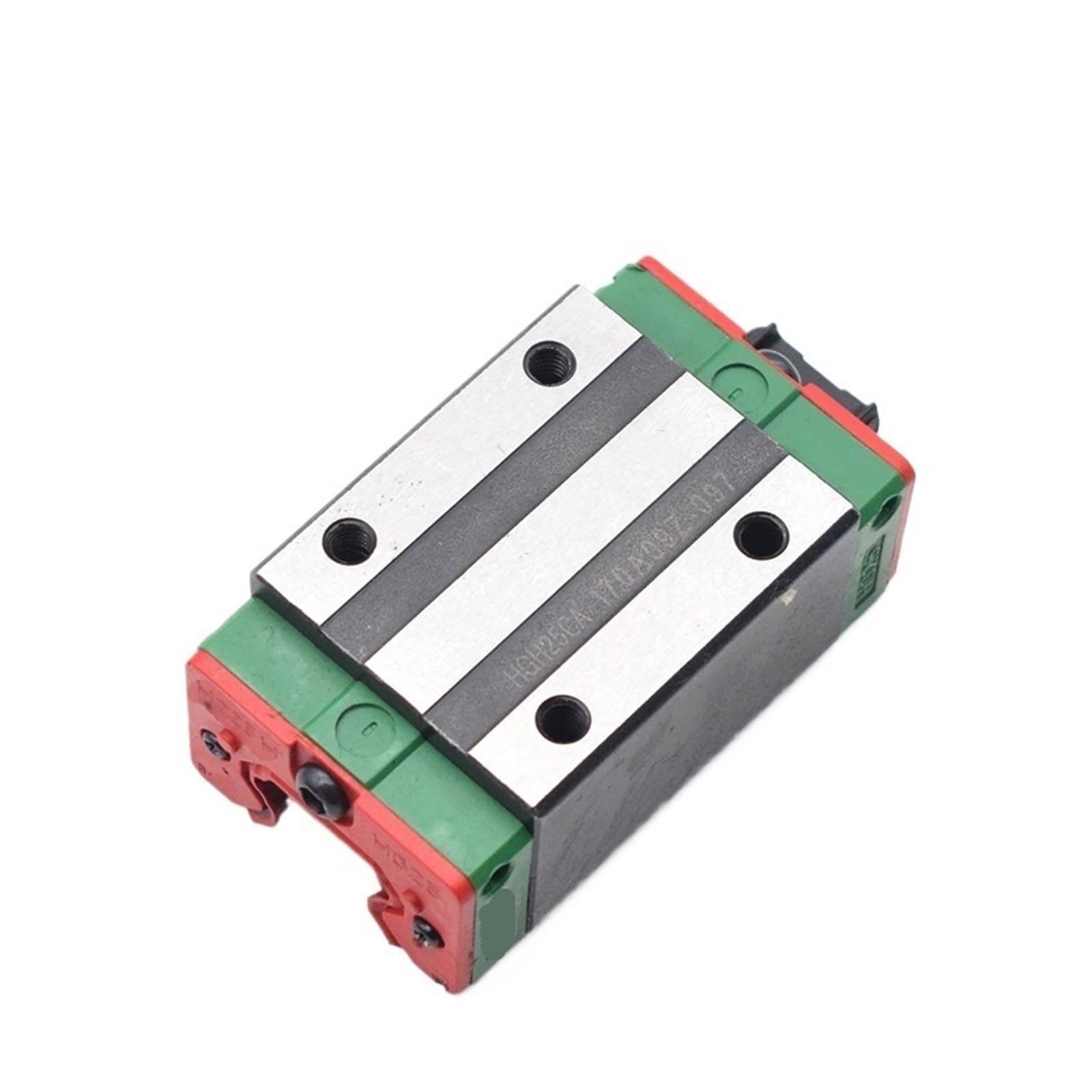

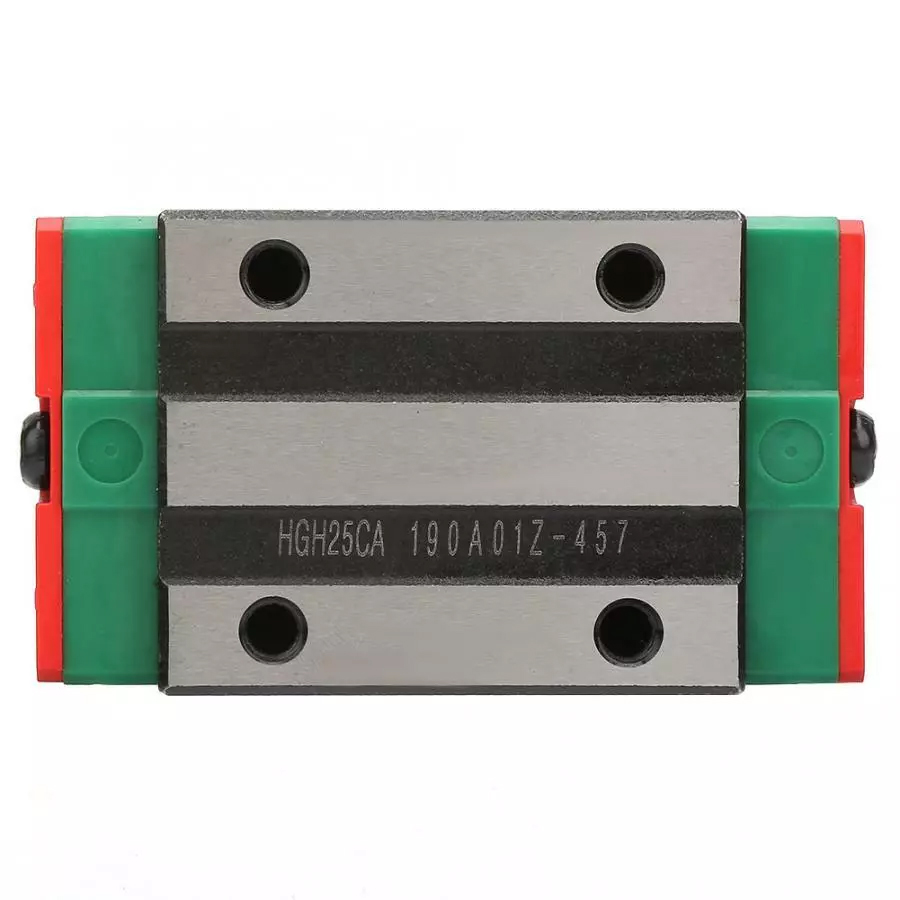

Here are images showcasing HGH series linear guide blocks—specifically models like HGH15CA, HGH20CA, and HGH25CA. These are heavy-duty linear motion components commonly used in precision machinery and CNC automation.
Product Overview: HIWIN HGH‑CA Series (HGH15CA, HGH20CA, HGH25CA)
Specifications & Design
These linear guide blocks—part of the renowned HIWIN HGH‑CA series—feature a modular design with a hardened bearing steel construction (GCr15), delivering exceptional rigidity and long service lifelongzhichuang.en.made-in-china.comjldbearing.en.made-in-china.com.
-
High load capacity: Capable of bearing loads from all directions—vertical, horizontal, and lateral—thanks to their circular-arc ball groove constructionjldbearing.en.made-in-china.comjldlinear.en.made-in-china.com.
-
Precision movement: Available in accuracy grades such as C, H, P, SP, UP; they support high-precision, low-friction motion with preload options (Z0, ZA, ZB)longzhichuang.en.made-in-china.comsairguide.en.made-in-china.com.
-
Performance benefits: Enjoy durable life, minimal noise, and easy installation. Hardness exceeds 62 HRC for wear resistancejldbearing.en.made-in-china.comsairguide.en.made-in-china.com.
-
Customizable lengths: Rails can be cut to lengths from 100 mm to 6,000 mm to suit specific machine needssairguide.en.made-in-china.comlongzhichuang.en.made-in-china.com.
Here are some key dimensional specs:
| Model | H (mm) | W (mm) | Length (L) (mm) | Basic Dynamic Load (C<sub>dyn</sub>) (kN) | Basic Static Load (C<sub>0</sub>) (kN) |
|---|---|---|---|---|---|
| HGH15CA | 28 | 34 | 61.4 | ~14.7 | ~23.5 |
| HGH20CA | 30 | 44 | 77.5 | ~27.1 | ~36.7 |
| HGH25CA | 40 | 48 | 84 | ~34.9 | ~52.8 |
hiwin.atcncdlinearguide.en.made-in-china.com
Product Overview: SUF 2005 and BKBF (Need Clarification)
Currently, there’s limited or no specific information about a "SUF 2005 BKBF" in the available sources. Could you clarify whether:
-
It's a linear bearing, ball screw support bearing, or caged bearing unit?
-
If possible, please provide full model numbers, series, or associated applications so I can assist you accurately.
Feature Highlights
-
Multi-directional Load Capacity: The guide blocks can handle substantial loads in any direction due to their ball-circulating designjldbearing.en.made-in-china.com.
-
Precision and Rigidity: Suitable for high-precision motion systems, they come with various tolerance and preload optionslongzhichuang.en.made-in-china.comsairguide.en.made-in-china.com.
-
Durability & Smooth Action: Hardened bearing steel construction ensures long life, low friction, and quiet operationjldbearing.en.made-in-china.com.
-
Flexible Customization: Rails and blocks are available in multiple sizes and lengths—ideal for bespoke automation setupslongzhichuang.en.made-in-china.comsairguide.en.made-in-china.com.
How to Use These Linear Guides
-
Rail Selection: Choose a rail length that suits your design—standard lengths can go up to 4,000 mmricocnc.com.
-
Mounting: Secure both rail and block on the machine structure. Ensure parallelism and clean mounting surfaces for optimal performance.
-
Preloading & Accuracy: Choose appropriate preload (e.g., ZA, ZB) for applications needing rigidity or positional accuracy, and select tolerance grade (C, H, etc.) fitting precision needslongzhichuang.en.made-in-china.comsairguide.en.made-in-china.com.
-
Lubrication & Maintenance: Periodic lubrication maintains smooth, quiet operation and prolongs service life.
-
Integration: Pair with ball screws or belt-driven systems for CNC or robotic axes, ensuring desired motion performancesairguide.en.made-in-china.comlongzhichuang.en.made-in-china.com.
Suggested Website Copy (Product Page)
Title:
HIWIN Linear Guide Blocks – HGH15CA / HGH20CA / HGH25CA
Overview:
Upgrade your system with HIWIN's HGH‑CA series linear guide blocks—built for high-precision, smooth motion, and robust durability. These blocks feature hardened GCr15 steel, multi-directional load handling, and customizable tolerances for precision drives in CNC machinery, automation platforms, and packaging equipment.
Why Choose HGH‑CA Series:
-
Heavy-Duty Load Bearing: Handles vertical, lateral, and corner loads with ease.
-
Precision-Grade Accuracy: Available in C, H, P, SP, and UP grades with preload options for tight clearance performance.
-
Built to Last: Hardened surfaces (>62 HRC) ensure minimal wear, low noise, and high reliability.
-
Designed for Flexibility: Rails customizable from 100 mm up to 6,000 mm—ideal for tailored machine setups.
-
Plug-and-Play Maintenance: Easy installation, dependable performance, and straightforward lubrication support.
Ideal For:
-
CNC and machine tool axes
-
Precision assembly systems
-
Heavy cutting and molding machinery
-
Measuring and inspection equipment
