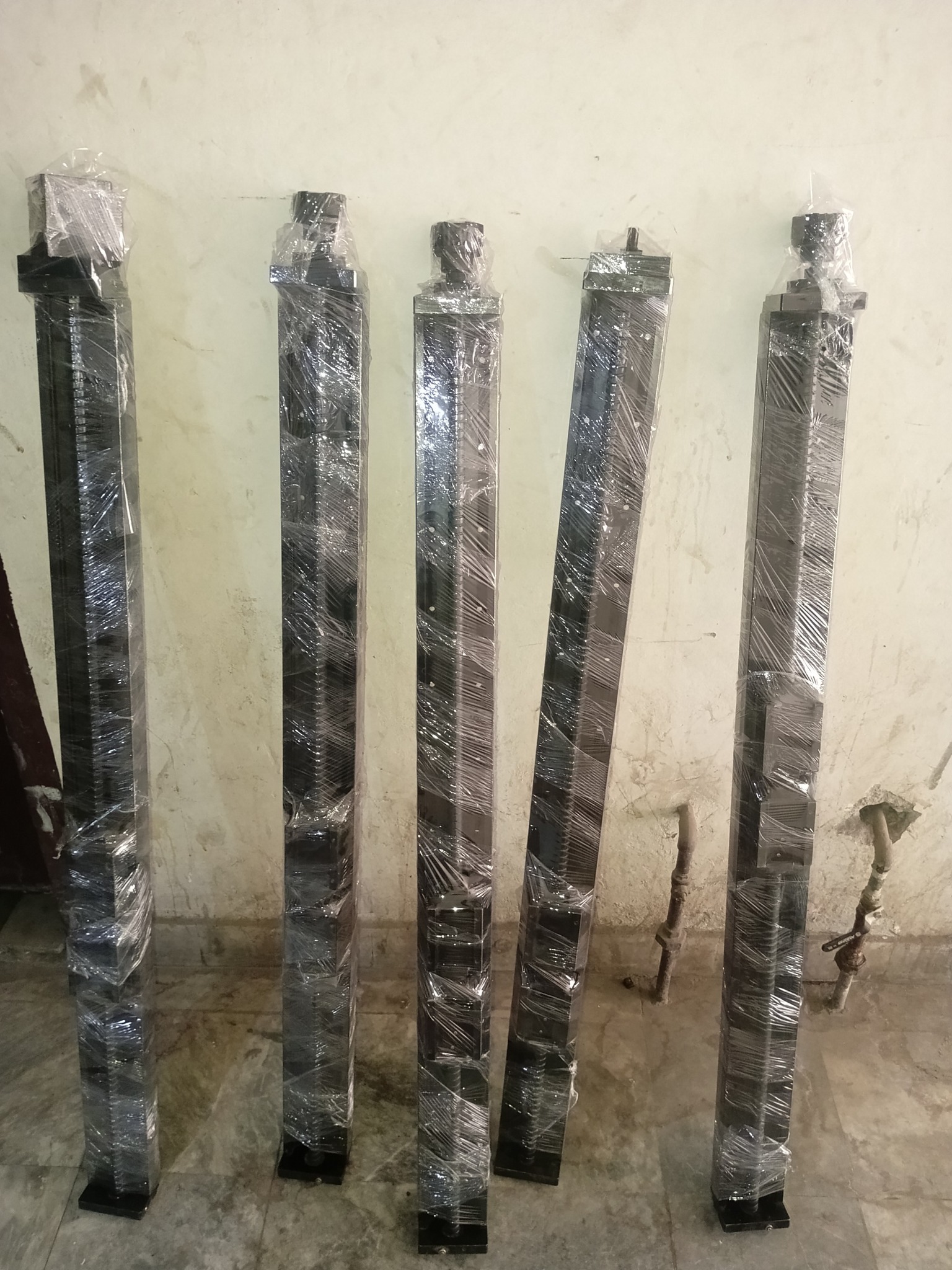

Linear Slide Actuator frame linear Slide Bearing LM12LUU-4PCS HGH25CA QHH20CA THK Japan HSR25 SSR35

Linear Slide Actuator frame linear Slide Bearing LM12LUU-4PCS HGH25CA QHH20CA THK Japan HSR25 SSR35 in Lahore Pakistan

⚙️ Linear Slide Actuator Frame with Linear Bearings and Guide Blocks

✅ Models: LM12LUU (4PCS) | HGH25CA | QHH20CA | THK HSR25 | THK SSR35

---

🧾 Product Overview

This Linear Slide Actuator Kit is designed for high-precision linear motion systems in CNC machinery, 3D printers, automation equipment, robotics, and industrial machinery. The kit includes various linear bearing models and guide blocks for smooth, frictionless motion on supported shafts or guide rails.

Whether you're building a custom linear actuator frame or replacing parts in an existing machine, these components offer high load capacity, low resistance, and long service life under continuous operation.

---

🔩 Included Components & Models

🧱 Linear Bearing – LM12LUU (4PCS):

• Type: Extended Linear Motion Ball Bearing

• Inner Diameter: 12mm

• Outer Diameter: 21mm

• Length: 57mm

• Housing: Cylindrical Steel with plastic retainer

• Quantity: 4 pieces per set

• Application: Fits 12mm linear shaft (fully supported or unsupported)

🧱 Linear Guide Blocks:

🔧 Compatible rails sold separately (HGR25, QHR20, HSR/SSR matching rail profiles)

---

🌟 Key Features

✅ Linear Bearings (LM12LUU):

• Smooth ball recirculation motion

• Extended length for more shaft contact and stability

• Built-in seals to protect from dust and debris

• Easy to mount in aluminum linear bearing blocks

• Ideal for 3D printers, DIY CNC builds, pick-and-place arms

✅ Linear Guide Blocks (HIWIN & THK):

• High rigidity with four-row ball circulation

• Preloaded for zero backlash and high precision

• Suitable for vertical and horizontal loads

• Low friction, long maintenance-free cycles

• Hardened rail contact surfaces for durability

---

📐 Technical Specifications (HGH25CA Example)

---

🛠️ How to Use / Installation Guide

🛠️ 1. Linear Bearings (LM12LUU)

• Slide onto 12mm hardened linear shaft.

• Insert into aluminum mounting blocks or 3D printer frame.

• Secure using clamping screws or set screws.

• Use with stepper motor + lead screw for X/Y motion.

🛠️ 2. Guide Blocks (HGH25CA, QHH20CA, etc.)

• Mount the guide rail to the machine frame using countersunk bolts.

• Align and install the linear guide block(s) on the rail.

• Attach your moving table or gantry to the top of the block.

• Ensure preload is correct to avoid unnecessary friction.

• Lubricate via grease ports or manual application for long-term use.

🔧 Optional accessories include grease nipples, dustproof end caps, and rail covers.

---

🧠 Applications

• CNC Milling, Routing, and Engraving Machines

• 3D Printers and Laser Cutters

• Industrial Pick-and-Place Arms

• XY Gantry Robots

• Packaging and Labeling Equipment

• Medical and Laboratory Automation

• Semiconductor Fabrication Systems

---

📦 What’s Included (Kit or Separate Items)

• ✅ 4 × LM12LUU Linear Bearings

• ✅ 1 or more Linear Guide Blocks (HGH25CA, QHH20CA, HSR25, SSR35)

• ❌ Guide Rails (optional / sold separately)

• ✅ Mounting bolts (if included in kit)

---

✅ Advantages

• 🧲 High Precision & Load Support

• 🔧 Easy Installation with Standard Hole Patterns

• 🔇 Low Noise, Low Friction Operation

• 🔁 Long Life with Recirculating Ball Design

• 🧼 Dust-Proof and Corrosion-Resistant Options Available

---
