Inductive sensor NCB4-12GM70-E0-M

Certainly! Here's a comprehensive product overview for the Pepperl+Fuchs NCB4-12GM70-E0-M Inductive Sensor, tailored for your website, including usage instructions and key features:

🔧 Product Overview: Pepperl+Fuchs NCB4-12GM70-E0-M Inductive Sensor

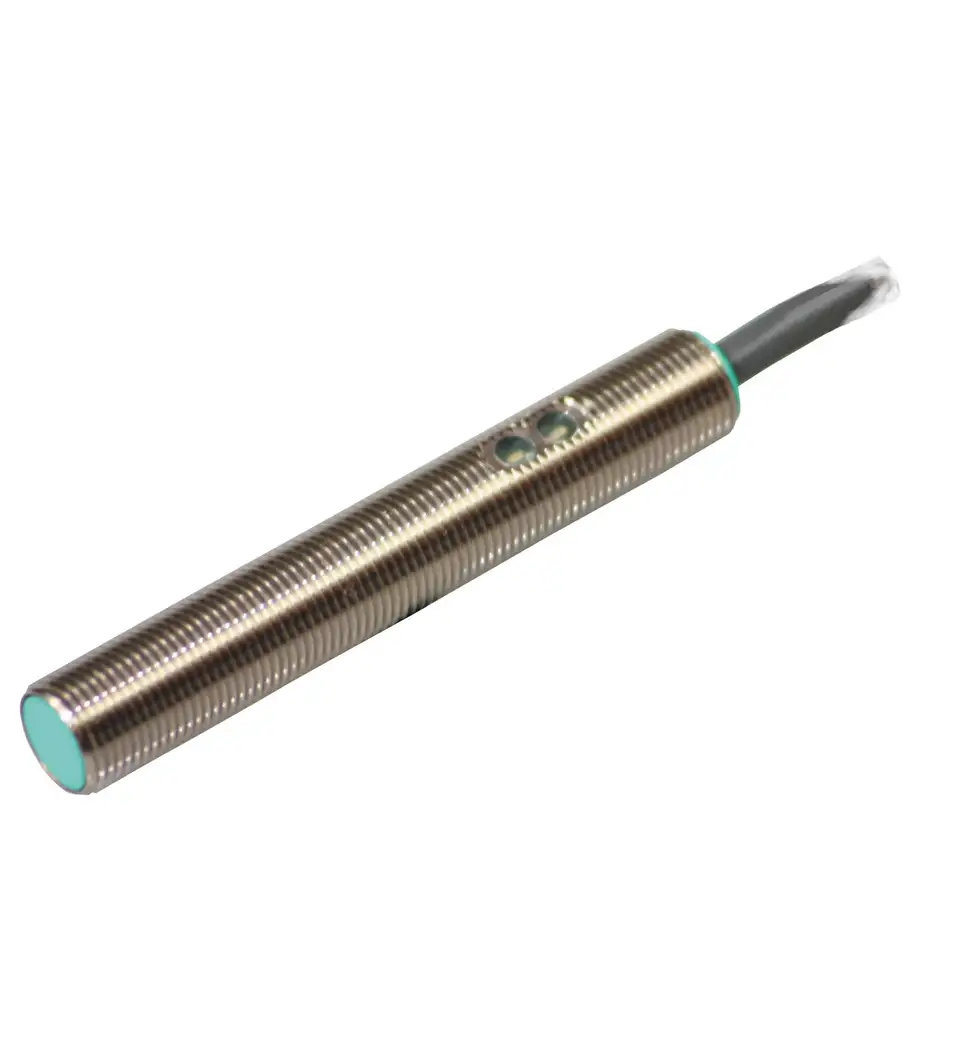

The Pepperl+Fuchs NCB4-12GM70-E0-M is a high-performance inductive proximity sensor designed for precise detection in various industrial applications. It features a cylindrical M12 housing, making it suitable for flush mounting in metal environments.

📊 Key Specifications

• Model: NCB4-12GM70-E0-M

• Sensor Type: Inductive Proximity Sensor

• Housing Diameter: 12 mm

• Housing Material: Stainless Steel 1.4305 / AISI 303

• Sensing Face Material: PBT

• Rated Operating Distance: 4 mm

• Assured Operating Distance: 0 ... 3.24 mm

• Switching Function: Normally Open (NO)

• Output Type: NPN

• Output Polarity: DC

• Operating Voltage: 10 ... 60 V DC

• Switching Frequency: 0 ... 1000 Hz

• Operating Current: 0 ... 200 mA

• Off-State Current: 0 ... 0.5 mA (typ. 0.1 mA)

• No-Load Supply Current: ≤ 10 mA

• Voltage Drop: ≤ 3 V

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Switching State Indicator: Yellow LED

• Ambient Temperature Range: -40 ... +85 °C

• Degree of Protection: IP69K

• Connection Type: 2 m PUR Cable

• Cable Cross-Section: 0.75 mm²

• Housing Length: 70 mm

• Weight: 120 g

• Approvals: cULus Listed, CSA, E1 Type Approval

• MTTFd: 1050 years

• Mission Time (Tᵐ): 20 years

• Diagnostic Coverage (DC): 0%Newark Electronics+1lucas-marine.com+6eltra-trade.com+6nexinstrument.com+6kempstoncontrols.co.uk+6pepperl-fuchs.com+6eltra-trade.com+6eltra-trade.com+6nexinstrument.com+6eltra-trade.com+6eltra-trade.com+2nexinstrument.com+2pepperl-fuchs.com

Source: Eltra Trade

🛠️ How to Use

1. Installation:

   • Mount the sensor flush into a metal surface with a 12 mm hole.

   • Ensure the sensing face is aligned with the target object for optimal detection.nexinstrument.com

2. Wiring:

   • Connect the 2 m PUR cable to your control system, observing correct polarity.

   • Use appropriate connectors or terminals to ensure secure connections.kempstoncontrols.com+4eltra-trade.com+4nexinstrument.com+4

3. Configuration:

   • Adjust the sensitivity if necessary, following the manufacturer's guidelines.

   • Verify the sensor's response to the target object to ensure proper operation.

4. Maintenance:

   • Regularly inspect the sensor for signs of wear or damage.

   • Clean the sensor as needed, following the manufacturer's recommendations.

   • Replace the sensor if performance degradation is observed.

🌟 Key Features

• High Switching Frequency: Supports up to 1000 Hz switching frequency, suitable for high-speed applications.

• Wide Operating Voltage Range: Operates within 10 ... 60 V DC, offering flexibility in various systems.

• Robust Construction: Stainless steel housing and IP69K protection ensure durability in harsh environments.

• Long Service Life: High MTTFd of 1050 years indicates a long operational lifespan.

• Safety Certifications: UL, CSA, and E1 approvals ensure compliance with international safety standards.eltra-trade.com+1kempstoncontrols.com+4eltra-trade.com+4nexinstrument.com+4nexinstrument.com+2eltra-trade.com+2

🛒 Purchase Information

The Pepperl+Fuchs NCB4-12GM70-E0-M Inductive Sensor is available for purchase from various online retailers. For instance, Eltra Trade offers this sensor at a competitive price, with an estimated delivery time of 3-6 weeks, depending on the country. Availability may vary, so it's advisable to check with the retailer for current stock status and shipping options.
