IFM IIA2015-ABOA (II0012) Inductive sensor

IFM IIA2015-ABOA (II0012) Inductive sensor in Lahore Pakistan

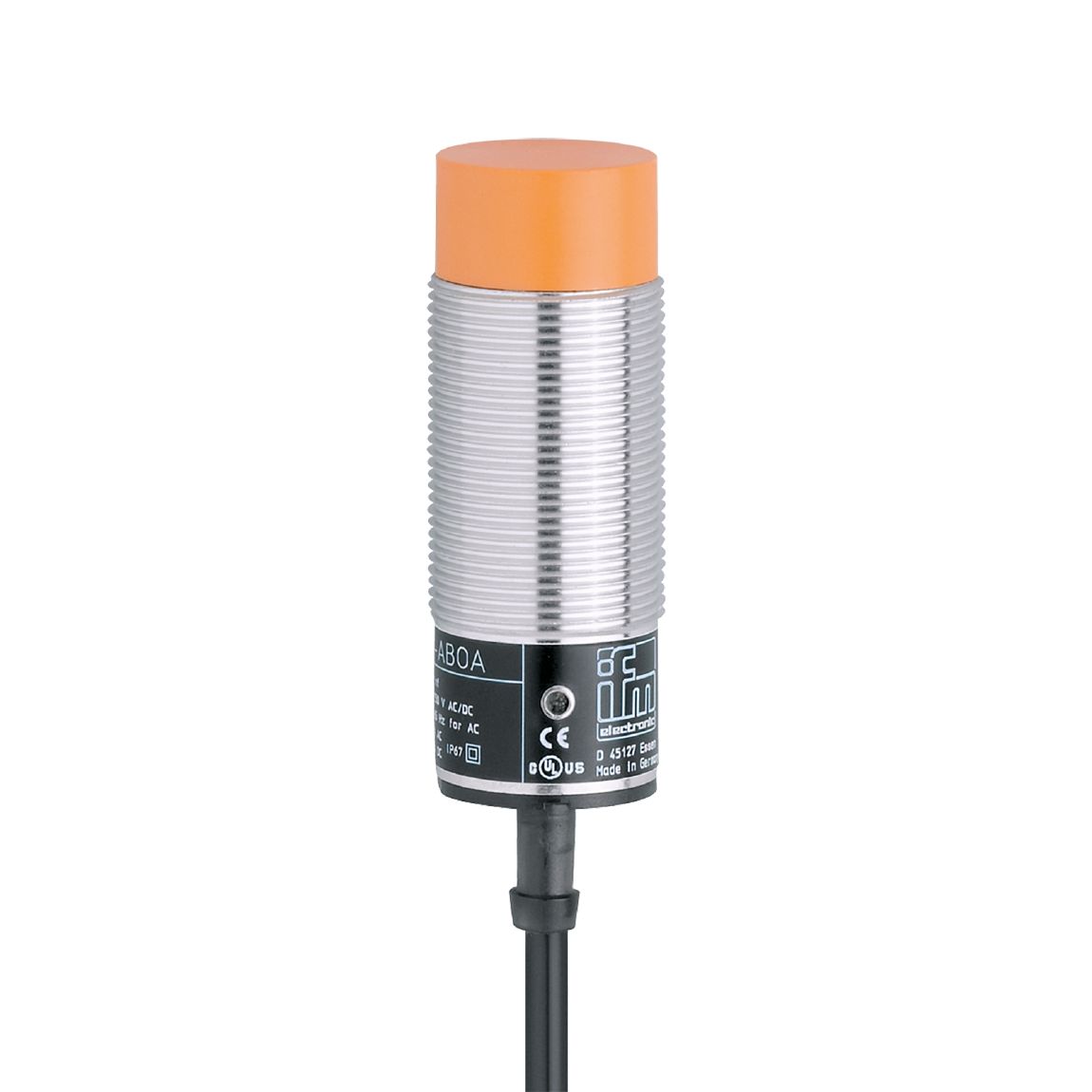

Product Details — IFM IIA2015‑ABOA (II0012) Inductive Proximity Sensor

Overview

A robust, two-wire inductive proximity sensor from IFM, designed for non-contact detection of metallic targets in industrial environments. Offers wide voltage compatibility and reliable operation.

Key Specifications

• Model / Part Number: IIA2015‑ABOA (II0012) industryparts.pkeltra-trade.com

• Detection Range: 15 mm sensing distance (Sn) industryparts.pkeltra-trade.com

• Mounting: Threaded M30 × 1.5, non‑flush mounting industryparts.pkeltra-trade.com

• Housing Material: Nickel-plated brass with PBT sensing face; tough and durable jrt.com.aueltra-trade.com

• Electronics: Two-wire AC/DC operation (20–250 V), Normally Open (NO) output industryparts.pkeltra-trade.com

• Electrical Performance:

  • Max continuous switching current: ~250 mA (AC), 100 mA (DC) eltra-trade.complc-trade.com

  • Peak current rating: ~2.2 A for 20 ms pulses eltra-trade.complc-trade.com

  • Switching frequency: 25 Hz (AC), 50 Hz (DC resistive load) industryparts.pkplc-trade.com

• Environmental Protection: IP67 rated; withstands dust and water ingress industryparts.pkeltra-trade.com

• Operating Temperature: –25 °C to +80 °C industryparts.pkeltra-trade.com

• Cable: 2 m PVC cable, 2 × 0.5 mm² conductors, attached jrt.com.aueltra-trade.com

• Indicator: LED status indicator for switching state visible on housing eltra-trade.complc-trade.com

• Dimensions: 81 mm length with M30 thread industryparts.pkjrt.com.au

How to Use — Installation & Operation Guide

1. Mounting
   Screw the sensor into an M30 threaded hole in your machinery or bracket. Secure using the supplied lock nuts.

2. Wiring

   • Connect the two-wire cable to the control circuit or PLC input.

   • When metal enters the 15 mm sensing zone, the switching state changes (NO → closed), and the LED lights up for visual confirmation.

3. Selecting Target and Positioning

   • Use steel for maximum sensitivity (correction factor = 1). Other metals like stainless steel, brass, or aluminum may require closer proximity due to reduced sensitivity hydro-funk.complc-trade.com.

4. Environmental Considerations

   • Its IP67 rating means it works reliably in wet, dusty, or challenging environments.

   • Keep the cable protected and avoid sharp bends. Operating temperature ranges from –25 °C to +80 °C.

5. Testing & Maintenance

   • Confirm operation by placing a target within range; the LED should light promptly.

   • Regularly inspect for damage, secure mounting, and ensure proper sealing to maintain IP67 protection.

Features & Benefits

Suggested Website Content Layout

Product Name: IFM IIA2015‑ABOA (II0012) — Inductive Proximity Sensor, 15 mm, M30, AC/DC

Short Overview:
A rugged non-flush M30 inductive sensor from IFM that reliably detects metal objects up to 15 mm away. Features two-wire AC/DC functionality and an LED switching indicator, all in an IP67-rated design.

Key Features:

• 15 mm sensing range, NO output

• Wide voltage range: 20–250 V AC/DC

• Durable brass housing with IP67 protection

• Threaded M30 housing, 81 mm length

• Fast switching: up to 50 Hz

• Indicator LED and 2 m cable for easy installation

Usage Summary:
“Screw into M30 mount, wire the two cable leads to power and control circuit; sensor switches when a metallic target approaches within 15 mm. LED indicates operation—perfect for machinery, safety loops, or position detection.”

Ideal Applications:
Industrial automation, conveyor systems, machine safety interlocks, position sensing, packaging machinery, and threshold detection.
