FOTEK Photoelectric Sensor A3R-4MX

FOTEK Photoelectric Sensor A3R-4MX in Lahore Pakistan

Product Overview

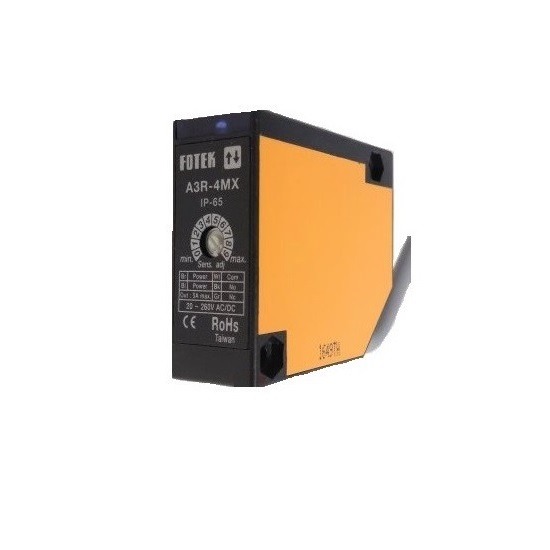

The Fotek A3R‑4MX is a reflective (direct reflection) photoelectric sensor from Fotek’s A3 Series. It features long-range detection, wide voltage compatibility, and industrial-grade durability, making it a solid choice for automation tasks.

Key Specifications

• Detection Type & Range
  Reflective sensor (needs mirror or reflective surface) with a detection distance of up to 4.0 m. Equipped with a 270° sensitivity adjuster. fotek.com.twFotek Express

• Voltage & Output
  Supports wide input: 12 V DC or 20–260 V AC/DC. Offers a high-capacity relay output rated at 3 A / 250 VAC. fotek.com.twCentek - Total Security Solutions

• Protection & Build
  Compact body with IP65 protection. Built-in surge-killer circuit to protect against transient overvoltages. Fotek ExpressCentek - Total Security Solutions

• Electrical & Mechanical Performance
  High noise immunity (up to 1500 Vp‑p/1 µs), withstands 2 kV surge shocks, and handles 10–55 Hz vibration with 1.5 mm amplitude. Centek - Total Security Solutions

How to Use

1. Installation
   Mount in a fixed position facing a reflector (mirror or retroreflective tape) at a distance within 4 m.

2. Power & Wiring
   Supply with any voltage between 12 VDC or 20–260 VAC/DC according to your setup. Relay output ensures compatibility with various PLCs or control systems.

3. Adjust Sensitivity
   Use the integrated 270° trimmer to fine-tune detection range based on environmental needs.

4. Operation
   When the reflected beam is detected, the relay output activates. LED status indicators (if present) help during setup and diagnostics.

5. Maintenance Tips

   • Keep the lens and reflector free of dust or debris.

   • Ensure proper alignment with the reflector surface for consistent detection.

   • Avoid environments with extremely high EMI or physical shocks, despite the built-in protections.

Key Features (“Futures”)

• Long-Range Detection – 4 m sensing distance adds flexibility for large-scale or spaced-out detection tasks. fotek.com.twCentek - Total Security Solutions

• Wide Voltage Compatibility – Works with both low-voltage DC and high-voltage AC systems (up to 260 V), reducing inventory variety. fotek.com.twCentek - Total Security Solutions

• Robust Relay Output – 3 A relay ensures it can drive heavy loads directly without an intermediary. Fotek ExpressCentek - Total Security Solutions

• Strong Electrical Protection – Built-in surge and transient suppression enhance durability in harsh industrial environments. Fotek ExpressCentek - Total Security Solutions

• Compact & Protected Form – Small footprint with IP65 housing helps in tight installations with protection against dust and water. Fotek ExpressCentek - Total Security Solutions

Suggested Website Copy

Product Title:
Fotek A3R‑4MX Reflective Photoelectric Sensor, 4 m Range, 3 A Relay

Short Description:
Highly versatile reflective sensor with a 4 m detection range, wide power compatibility (12 VDC to 260 VAC/DC), and a heavy-duty 3 A relay output—designed for robust industrial use.

Feature Highlights:

• 4 m reflection-type detection

• 12 VDC or 20–260 VAC/DC power options

• 3 A / 250 VAC relay output

• IP65-rated durable body

• Integrated 270° sensitivity adjuster

• Built-in surge protection and EMI shielding

Ideal For:
Packaging lines, industrial detection systems, conveyor object counting, and long-range automation tasks.

User Guide:
Mount facing a reflector—up to 4 m distance. Adjust sensitivity, power up with DC/AC supply. Use relay output to signal presence, ensuring lens and reflector remain clean for reliable detection.
