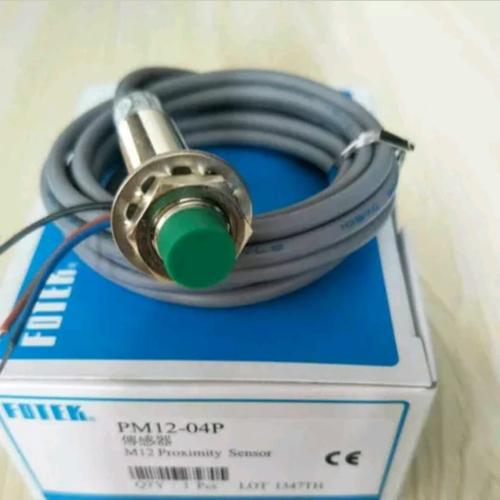

FOTEK Inductive Proximity Sensor PM12-04P PNP 12mm Dia 4Sn

FOTEK Inductive Proximity Sensor PM12-04P PNP 12mm Dia 4Sn in Lahore Pakistan

Product Name:

FOTEK Inductive Proximity Sensor PM12-04P PNP 12mm Dia 4Sn

Product Overview:

The FOTEK PM12-04P is a high-performance inductive proximity sensor designed for reliable metal object detection. With a 12mm diameter, this sensor operates on a PNP output, offering fast response times and high durability in industrial environments. Ideal for use in manufacturing, automation, and material handling, this sensor helps detect the presence of metallic objects without physical contact.

Key Features:

• Sensor Type: Inductive proximity sensor

• Output Type: PNP (Positive-Negative-Positive)

• Sensing Diameter: 12mm

• Sensing Distance: 4mm (nominal)

• Supply Voltage: 10-30 VDC

• Load Current: 200mA

• Response Time: ≤ 1ms

• Housing Material: Nickel-plated brass

• Ingress Protection: IP67, making it dustproof and waterproof

• Temperature Range: -25°C to +70°C

• Connection Type: 3-wire (Brown – V+, Blue – V-, Black – Output)

• Mounting Type: Flush or non-flush mounting

• Detection Object: Ferrous metal (steel)

• Applications: Ideal for use in automation, packaging lines, robotics, material handling systems, and conveyors.

How to Use the FOTEK PM12-04P Inductive Proximity Sensor:

1. Mounting the Sensor:

• Ensure that the mounting surface is clean and free from dust or debris.

• The FOTEK PM12-04P can be installed flush or non-flush depending on your setup. Flush mounting ensures the sensor is fully embedded, while non-flush mounting allows it to extend beyond the surface.

• Mount the sensor in a position where it will detect the target metal objects within the 4mm sensing range.

2. Wiring the Sensor:

• Brown (V+): Connect to the positive power supply (10-30 VDC).

• Blue (V-): Connect to the negative terminal of the power supply.

• Black (Output): Connect to the control circuit or device to be triggered by the sensor.

• Ensure that the wiring is done securely, and there is no short circuit in the connection.

3. Testing the Sensor:

• Once wired, power up the sensor and test its functionality by placing a metallic object (ferrous material) within the detection range.

• The FOTEK PM12-04P will send a signal to the connected control system when an object enters its detection zone, providing reliable on/off feedback.

Applications:

The FOTEK PM12-04P Inductive Proximity Sensor is widely used in applications where precise, non-contact detection of metal objects is required, such as:

• Automated assembly lines for detecting parts and components.

• Conveyor systems for metal object detection and sorting.

• Robotic applications for detecting positions and movements.

• Packaging machinery to trigger actions like sealing or labeling.

• Material handling systems for controlling gates, switches, or diverting processes.

Benefits of Using the FOTEK PM12-04P Inductive Proximity Sensor:

• Durability: With its IP67 rating, the sensor is dustproof and waterproof, making it suitable for harsh industrial environments.

• Non-contact sensing: No physical wear and tear on the sensor, which leads to a longer operational life.

• Fast response time: The sensor has a fast response time of ≤ 1ms, ensuring high-speed detection in automated systems.

• Reliable detection: Accurate sensing of metallic objects, reducing errors and improving system efficiency.

• Cost-effective: The FOTEK PM12-04P offers excellent performance at an affordable price point, ideal for bulk applications.

Why Choose FOTEK Inductive Proximity Sensors?

• Trusted Brand: FOTEK is known for its durable and reliable industrial sensors.

• Versatile Applications: Works across a wide range of automation, robotic, and material handling applications.

• Easy to Use: Simple installation and wiring ensure fast setup in any system.

Buy FOTEK PM12-04P Inductive Proximity Sensor:

The FOTEK PM12-04P is available for purchase from authorized distributors and online stores. Whether you need a single sensor for your project or bulk sensors for industrial automation, you can rely on FOTEK's high-quality products to meet your needs.
