FBs-60mar In Lahore Pakistan

Here’s a full product detail for the Fatek FBs-60MAR PLC, written in a professional and SEO-friendly way for your website or catalog. It includes specifications, usage instructions, and feature highlights.

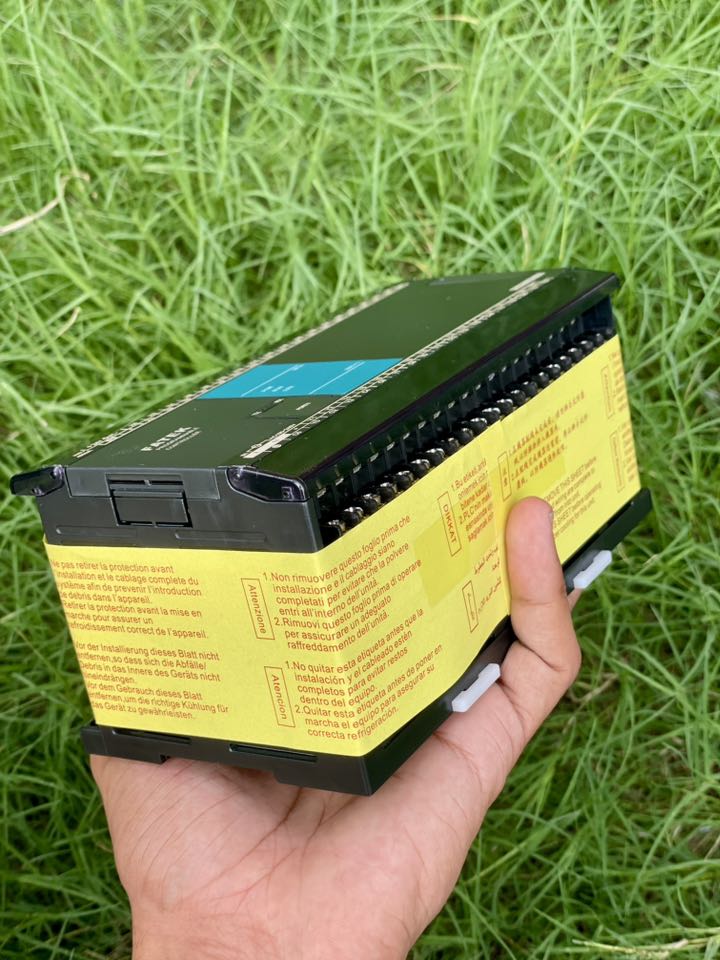

🔧 Fatek FBs-60MAR PLC – Modular, High-Performance PLC for Advanced Automation

The Fatek FBs-60MAR is a powerful and flexible Programmable Logic Controller (PLC) designed for complex industrial control applications. With a high I/O count, built-in communication ports, and support for multiple expansion modules, it is ideal for large-scale automation systems.

✅ Key Features

Category Specification
I/O Points 36 Digital Inputs, 24 Relay Outputs
Power Supply 100–240V AC
Built-in Ports RS-232, RS-485 (for Modbus RTU, master/slave)
Program Capacity 16,000 steps
Scan Time ~0.5μs per instruction
Memory Built-in EEPROM, optional battery backup
Communication Protocols Modbus RTU, Fatek Protocol, ASCII
Programming Software WinProladder (free from Fatek)
Expansion Support Supports over 200 expansion modules (analog, temperature, high-speed counter, etc.)
Mounting DIN rail or panel mount
Dimensions Approx. 220 x 90 x 80 mm

🧠 How to Use the FBs-60MAR PLC

  1. Installation
    Mount the PLC on a DIN rail or panel. Connect input/output devices (sensors, relays, switches, etc.) to the terminal blocks.

  2. Power Connection
    Wire the unit to 100–240V AC main supply. Ensure grounding for safety.

  3. Programming
    Use WinProladder to create logic programs using ladder diagram or instruction list. Load the program via RS-232 or USB (with converter).

  4. Communication Setup
    Set up RS-232/RS-485 for SCADA, HMI, or other PLC communications. Supports Modbus RTU natively.

  5. Expansion Modules
    Connect analog input/output, temperature, high-speed counter, or other modules to scale your system.

  6. Monitoring & Debugging
    Use WinProladder’s real-time monitoring tools to test and debug your system.

💡 Features & Benefits

  • High I/O Capacity: 60 built-in I/O points suitable for large control systems.

  • Flexible Communication: Dual ports enable multi-device networking.

  • Powerful Processing: Fast scan time ensures real-time performance.

  • Modular Expandability: Add analog, thermocouple, or high-speed modules as needed.

  • Industrial-Grade Reliability: Ideal for 24/7 use in harsh environments.

  • Cost-Effective: Combines performance and flexibility at a competitive price.

  • Free Software: WinProladder offers intuitive ladder logic programming with no license fees.

🏭 Applications

  • Factory automation

  • Conveyor and packaging systems

  • HVAC and building control

  • Water and wastewater treatment

  • Energy monitoring

  • Food and beverage processing

  • Machine control systems

📦 Included with FBs-60MAR:

  • PLC unit

  • User manual (digital)

  • Terminal blocks

  • Mounting clips

  • Free access to WinProladder software
