Fbs-4DA Fbs-6Ad Fbs-1lc Available

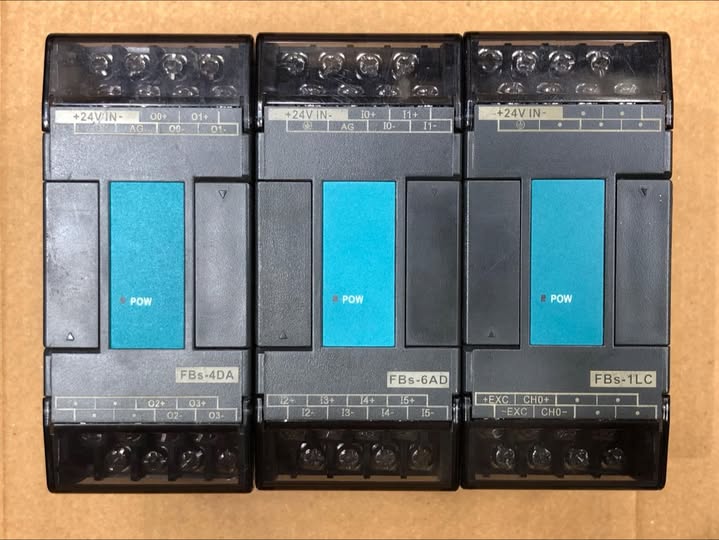

Fbs-4DA Fbs-6Ad Fbs-1lc In Lahore Pakistan

Here’s a polished, website-ready product overview for the Fatek FBs Series Expansion Modules: FBS‑4DA, FBS‑6AD, and FBS‑1LC, featuring detailed specifications, usage instructions, and key functionalities:

Fatek PLC Expansion Modules

These expansion modules enhance the capabilities of Fatek FBs PLC systems—ideal for advanced automation tasks requiring analog input/output or precision weighing.

1. FBs‑4DA — 4‑Channel Analog Output Module

• Type: AIO (Analog Output) expansion module

• Outputs: 4 channels of analog signals

• Resolution: 14-bit, values range from –10 V to +10 V, 0–10 V, or 0–20 mA depending on jumper setup Codienhaiau.comtegco.vn.

• Accuracy: Approximately ±1% fatek.com.pk.

• Power Consumption: 24 VDC (–15% / +20%), max 3.2 W fatek.com.pkCodienhaiau.com.

• Connection: 7.62 mm fixed terminal block fatek.com.pk.

How to Use:
Install the module onto the FBs PLC rack, configure each channel in WinProLadder, select output range via jumpers, and program outputs for actuators or analog signal control.

Best For: Driving analog devices like valves or motors in automation systems.

2. FBs‑6AD — 6‑Channel Analog Input Module

• Type: AIO (Analog Input) expansion module

• Inputs: 6 channels accepting voltage (–10 V to +10 V) or current (0–20 mA) Codienhaiau.comE.S.π.

• Resolution: 14‑bit precision Codienhaiau.comtegco.vn.

• Accuracy: ±1% fatek.com.pk.

• Input Specs: Voltage input impedance ~63.2 kΩ, current input ~250 Ω; input voltage max ±15 V fatek.com.pk.

• Power: 24 VDC (–15% / +20%), 3.2 W max fatek.com.pkCodienhaiau.com.

• Connection: 7.62 mm fixed terminal block fatek.com.pk.

How to Use:
Attach to the main PLC, configure signal type and scaling in WinProLadder, and read process variables like temperature or pressure for automated control.

Ideal For: Process control systems monitoring analog sensors such as temperature, flow, or pressure.

3. FBs‑1LC — 1‑Channel Load Cell Input Module

• Type: Precision Load Cell measurement module

• Channel: Single load cell input with 16‑bit resolution (signed) fatek.com.pkdevice.report.

• Conversion Rate Options: 5–80 Hz device.reportcontrolbox.com.au.

• Accuracy and Stability: Non‑linearity 0.01% F.S., zero drift 0.2 µV/°C, gain drift 10 ppm/°C device.report.

• Excitation: Provides 5 V, suitable for up to 100 Ω load cell device.reportfatek.com.pk.

• Isolation: Power isolated via transformer; signal via optocoupler (500 VAC for 1 minute) fatek.com.pkdevice.report.

• Power: 24 VDC (–15% / +20%), 2 W fatek.com.pkdevice.report.

How to Use:
Connect the load cell to the module and attach it to the PLC. Use WinProLadder (ver. 3.22+ and PLC OS v4.71+) to configure I/O, averaging, and range. Map weight readings to registers and implement tare/span functions; monitor via ladder logic. device.report.

Best For: Accurate weighing systems like scales, batching, or material dispensers.
