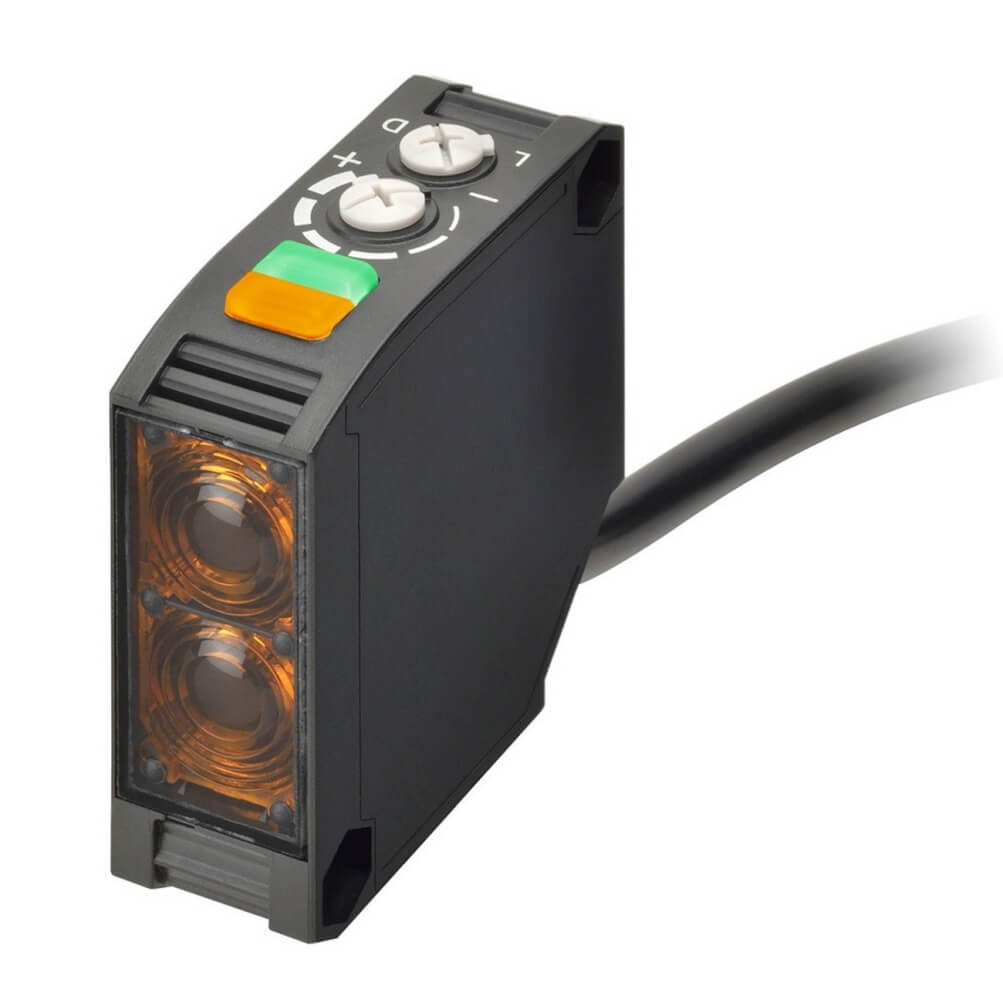

Omron E3JK-DR11 Photoelectric Sensor

The Omron E3JK-DR11 is a high-performance photoelectric sensor designed for a wide range of industrial automation applications. This sensor is ideal for detecting objects, such as products on a conveyor, in assembly lines, or other material handling systems. It combines durability, reliability, and precision in a compact form, making it a perfect choice for both standard and demanding environments.

Product Details:

Model: Omron E3JK-DR11 Photoelectric Sensor
Sensor Type: Diffuse Reflective
Sensing Range: 5mm to 800mm (depending on the target object)
Output Type: NPN / PNP (Choose based on system compatibility)
Power Supply: 12V to 24V DC
Response Time: 1 ms (max)
Light Source: Red LED
Beam Type: Modulated Light Beam
Output Mode: Light-ON / Dark-ON
Mounting Type: Direct Mount (Screw Mounting or Bracket)
Protection Rating: IP67 (dust-tight and waterproof)
Operating Temperature Range: -25°C to +55°C
Material: Plastic housing with stainless steel option for harsher environments
Size: 48mm (L) x 20mm (W) x 33mm (H)
Weight: Approx. 50g

Key Features:

1. High Sensitivity and Long Detection Range:
   The E3JK-DR11 offers a detection range of up to 800mm, making it versatile for a variety of applications. It can detect small, transparent, or irregularly shaped objects, offering reliable performance even in challenging conditions.

2. Light-ON / Dark-ON Output Modes:
   The sensor can be configured to work in either Light-ON or Dark-ON mode, providing flexibility to accommodate different control systems or application needs.

   • Light-ON: The sensor output is ON when the beam is not obstructed.

   • Dark-ON: The sensor output is ON when the beam is interrupted.

3. Compact and Robust Design:
   With its IP67 rating, the E3JK-DR11 is fully dust-tight and can withstand immersion in water up to 1 meter, making it ideal for use in harsh industrial environments.

4. Fast Response Time:
   The sensor has an extremely fast response time of 1 ms, which allows for high-speed operation in automation systems where quick detection and response are crucial.

5. Modulated Light Beam:
   The sensor uses a modulated red LED light beam, which reduces the impact of ambient light interference, ensuring accurate detection even in environments with fluctuating light conditions.

6. Versatile Mounting Options:
   The E3JK-DR11 can be mounted using screws or a bracket, providing flexibility for installation in different setups.

7. Multiple Output Types:
   Available with both PNP and NPN output types, the sensor can integrate seamlessly with various control systems and PLCs, depending on the application's requirements.

How to Use the Omron E3JK-DR11 Photoelectric Sensor:

1. Installation:

• Mounting:
  The E3JK-DR11 features a compact design and can be easily mounted using screws or a bracket. Ensure it is securely fastened to prevent vibration or movement that could affect its detection accuracy.

• Orientation:
  Mount the sensor in such a way that the sensor's beam is directed toward the object you want to detect. It is crucial to ensure that the object will pass within the detection range for proper functioning.

• Distance Adjustment:
  Adjust the sensor to match the size and distance of the object you need to detect. The detection range can be adjusted from 5mm to 800mm depending on the application.

2. Wiring the Sensor:

• Power Supply:
  Connect the sensor to a DC power supply between 12V and 24V DC. Ensure the correct polarity is followed:

  • Brown wire (positive): Connect to the positive terminal of the power supply.

  • Blue wire (negative): Connect to the negative terminal.

  • Black wire (output): Connect to your PLC or control system.

• PNP/NPN Output:
  Choose either the PNP or NPN configuration based on your system. The PNP output sinks current when activated, while the NPN output sources current when activated.

3. Configuring the Output Mode:

• Depending on the application, you may need to select either the Light-ON or Dark-ON output mode:

  • In Light-ON mode, the sensor will output a signal when the beam is not blocked.

  • In Dark-ON mode, the output will be active when the beam is interrupted.

This can be set either manually via a dip switch or through external control based on your specific use case.

4. Testing and Calibration:

• Once the sensor is powered and wired correctly, test it by moving a reflective object within the sensing range. The LED indicator on the sensor should change its status (ON/OFF) based on whether the object blocks or reflects the light beam.

• Adjust the range as needed, depending on how close or far the object is from the sensor.

• The sensor will switch its output signal when the object crosses the detection field.

Applications of the Omron E3JK-DR11 Photoelectric Sensor:

1. Conveyor Systems:
   Ideal for conveyor lines where the sensor detects items moving along the conveyor, triggering actions like sorting, packaging, or quality control.

2. Robotics:
   The E3JK-DR11 can be used to detect the position of robotic arms or to verify that parts are in the correct location before a robotic action is taken.

3. Material Handling:
   In automated material handling systems, this sensor ensures that objects are accurately detected and counted, allowing for optimized control and tracking.

4. Packaging:
   In packaging systems, the sensor can detect whether products are aligned correctly or if the package is ready for further processing or shipment.

5. Assembly Lines:
   Used in assembly lines to detect objects for quality checks, parts placement, or to monitor the flow of materials during production.

6. Automated Doors or Gates:
   Can be used for automatic door systems where the sensor detects when a person or vehicle is approaching and automatically opens or closes.

Advantages of the Omron E3JK-DR11 Photoelectric Sensor:

• Fast Response Time: With a 1 ms response time, the E3JK-DR11 is perfect for high-speed automation applications.

• Versatile Sensing Range: Capable of sensing from 5mm to 800mm, it works for a variety of applications with different object sizes and detection distances.

• Reliable Performance: Thanks to its modulated red LED light beam, it reduces interference from ambient light, ensuring more stable performance.

• Rugged Construction: With an IP67 rating, the sensor is well-protected against dust, water, and mechanical impacts, making it suitable for industrial environments.

• Flexible Mounting Options: The sensor can be easily integrated into various setups using screws or brackets.

• Easy to Integrate: Compatible with both PNP and NPN outputs, the sensor can be easily integrated into different automation systems and PLCs.

Conclusion:

The Omron E3JK-DR11 Photoelectric Sensor is a reliable, high-performance solution for detecting objects in a wide range of industrial applications. Its versatile sensing range, fast response time, and IP67-rated durability make it ideal for demanding environments, such as conveyor systems, robotics, material handling, and automated packaging systems. Whether you need a sensor for detecting objects on a conveyor or ensuring parts are in the correct position during assembly, the E3JK-DR11 is a reliable choice that combines precision, durability, and ease of integration.
