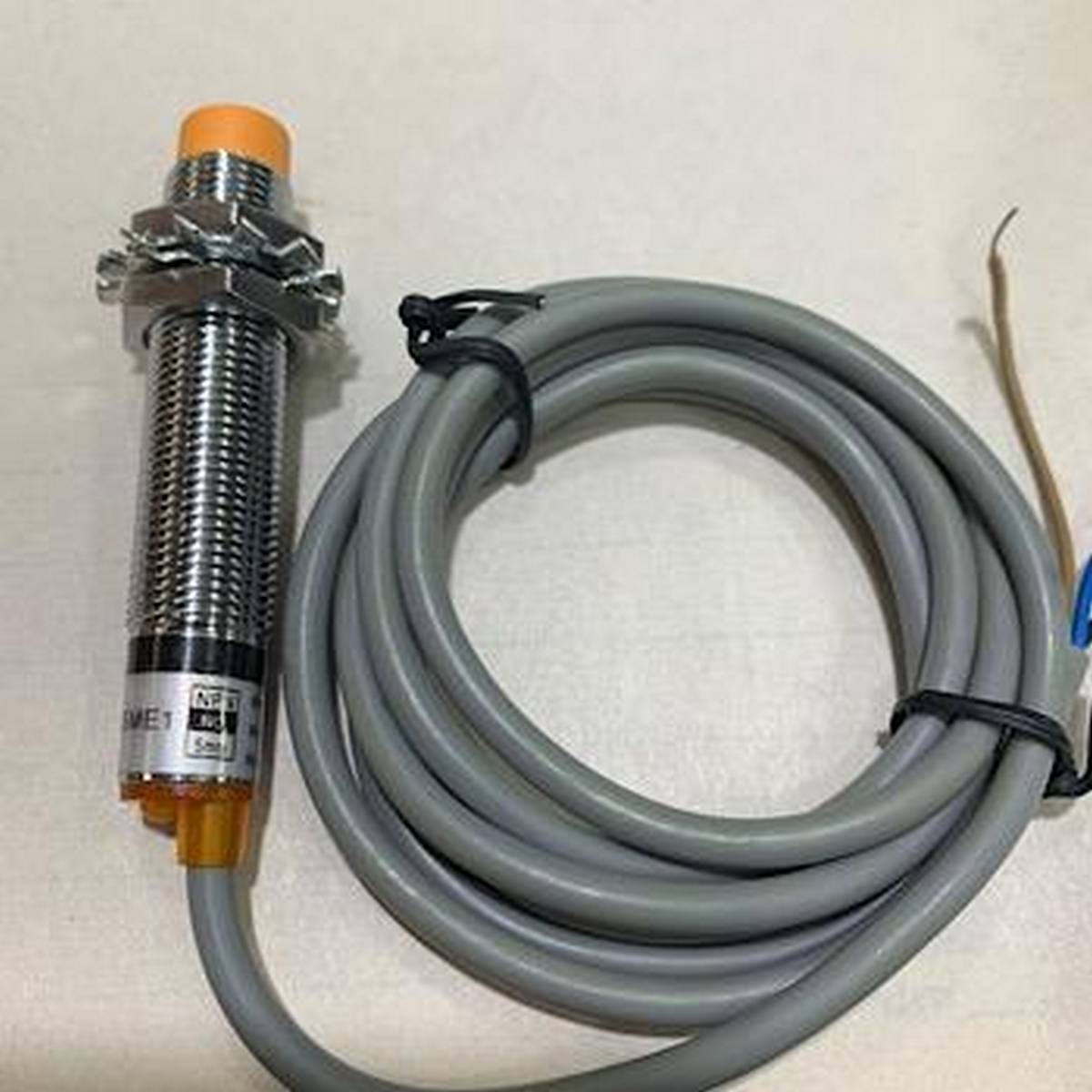

E2E-X5MF1 PNP High Quality Omron Proximity Inductive Switch Sensor

E2E-X5MF1 PNP High Quality Omron Proximity Inductive Switch Sensor in Lahore Pakistan

Product Name:

E2E-X5MF1 PNP High Quality Omron Proximity Inductive Switch Sensor

Overview:

The E2E-X5MF1 is a premium inductive proximity sensor from Omron, designed for precision detection of metallic objects without physical contact. Featuring PNP output, it is ideal for use in industrial automation, robotics, and machine control systems. With its compact design, high reliability, and durable housing, the E2E-X5MF1 ensures long-term, trouble-free operation even in harsh environments.

Key Features:

• Sensor Type: Inductive proximity sensor (Non-contact)

• Output Type: PNP (Positive-Negative-Positive)

• Sensing Distance: 5mm (nominal)

• Supply Voltage: 10 to 30 VDC

• Current Rating: 200 mA (max)

• Response Time: ≤ 1ms

• Housing Material: Nickel-plated brass

• Ingress Protection: IP67, making it resistant to dust, water, and other contaminants

• Operating Temperature: -25°C to +70°C

• Mounting Type: Flush mounting (perfect for tight spaces)

• Sensing Range: Detects ferrous metal objects within a 5mm range

• Cable Length: 2 meters (or other custom lengths)

• Connection Type: 3-wire (Brown – V+, Blue – V-, Black – Output)

• LED Indicator: Built-in LED for output status (ON/OFF)

• Certifications: CE, UL approved

• Applications: Ideal for factory automation, conveyor systems, robotic arms, position detection, material handling, and other industrial applications.

How to Use the E2E-X5MF1 Inductive Proximity Sensor:

1. Mounting the Sensor:

• Ensure the mounting surface is clean and free from obstructions.

• The E2E-X5MF1 can be flush-mounted, ensuring that the sensor is installed flat with the surface for optimal operation. Its compact 5mm detection range allows for a tight fit in spaces with limited clearance.

• Mount the sensor in an appropriate location where metallic objects will pass within the 5mm sensing range.

2. Wiring the Sensor:

• The E2E-X5MF1 comes with a 3-wire connection:

  • Brown (V+): Connect to the positive supply voltage (10-30 VDC).

  • Blue (V-): Connect to the negative terminal (ground).

  • Black (Output): Connect to the load or control circuit for triggering action when a metal object is detected.

  Ensure all connections are secure to avoid short-circuits or faulty operation.

3. Testing the Sensor:

• Power the sensor on and check the LED indicator. When a metallic object enters the detection range, the output will activate, and the LED will turn ON.

• You can verify the sensor's operation by placing a metal object within the detection zone. The sensor should trigger the connected load (e.g., relay, PLC, etc.) to perform the intended action.

Applications of the E2E-X5MF1:

• Industrial Automation: The sensor is highly reliable for detecting metal objects in high-speed automation systems.

• Material Handling: Used for object sorting and material flow control on conveyor belts.

• Position Detection: Detects the position of mechanical parts in machinery and robotics, helping to ensure accurate operation.

• Machine Safety: Prevents machine errors by detecting the presence or absence of metal components.

• Robotic Arms: Used in automation processes for part detection and to trigger specific actions based on the position of a metal part.

• Packaging Systems: Commonly used for detecting the position of packaging components like bottles or cans in a production line.

Advantages of the E2E-X5MF1 Proximity Sensor:

• High Reliability: Manufactured by Omron, a trusted brand in industrial automation, ensuring durability and reliability in various conditions.

• No Contact Wear: The E2E-X5MF1 uses non-contact sensing, reducing mechanical wear and tear, thereby enhancing the sensor's lifespan.

• Fast Response Time: With a response time of ≤ 1ms, it can handle high-speed operations in fast-moving industrial systems.

• Wide Temperature Range: Operating from -25°C to +70°C, the sensor performs well in both extreme cold and heat.

• IP67 Protection: The sensor's robust housing ensures it can withstand exposure to dust, water, and other environmental contaminants.

• LED Indicator: A built-in LED lights up to show the status of the sensor, making troubleshooting easy.

Why Choose Omron E2E-X5MF1 PNP Inductive Sensor?

1. Proven Brand: Omron is known for creating high-quality, reliable sensors for various industrial applications.

2. Cost-Effective: Offering an excellent balance of performance and cost, this sensor provides superior value for money.

3. Durability: The IP67 rating ensures that the sensor will continue working under harsh conditions, including exposure to dust, water, and dirt.

4. Easy to Integrate: Compatible with most industrial systems due to its simple 3-wire setup and wide voltage range.

Buy the Omron E2E-X5MF1 PNP Inductive Proximity Sensor:

If you're looking to enhance the performance of your industrial automation system with a reliable proximity sensor, the Omron E2E-X5MF1 is an excellent choice. It is available for purchase through our online store or authorized distributors.

• Price: Competitive pricing to fit within your budget while maintaining high standards of quality.

• Fast Shipping: We offer quick and secure shipping options.

• Warranty: Comes with a manufacturer's warranty for peace of mind.

Conclusion:

The Omron E2E-X5MF1 PNP High Quality Inductive Proximity Sensor is a versatile and reliable sensor that provides superior performance in various industrial applications. Its robust design, fast response time, and non-contact sensing capabilities make it an ideal solution for factory automation, material handling, and machine safety systems.
