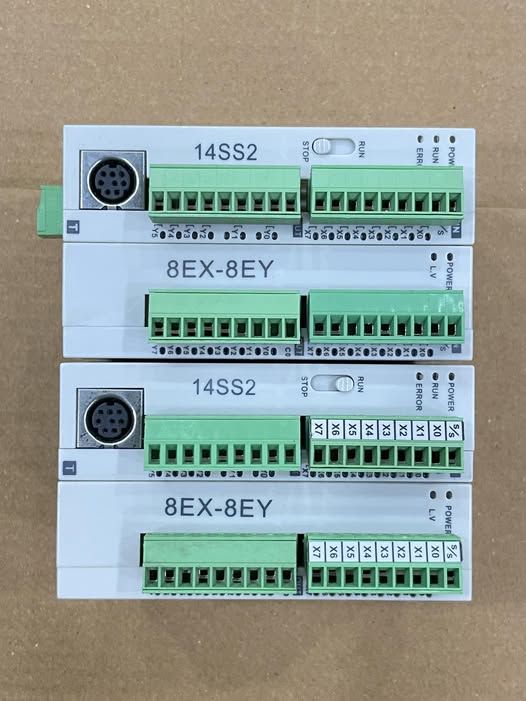

Dvp 14ss2 plc & 8EX-8EY card available

Dvp 14ss2 plc & 8EX-8EY In Lahore Pakistan

Here’s a detailed product description for the Delta DVP-14SS2 PLC and the DVP-8EX / 8EY Expansion Modules, including features, usage, and how to use them — perfect for your website or product catalog.

Delta DVP-14SS2 PLC & DVP-8EX / 8EY Expansion Modules

Overview

The Delta DVP-14SS2 is a compact, versatile Programmable Logic Controller (PLC) designed for industrial automation, offering reliable control for small to medium-scale applications. It supports expansion modules like DVP-8EX (Input Expansion) and DVP-8EY (Output Expansion), enabling users to customize and extend I/O capacity as needed.

Delta DVP-14SS2 PLC — Key Features

• 14 Digital Inputs/Outputs: 8 inputs and 6 outputs (relay type) suitable for general control tasks

• Compact Design: Saves space in control panels

• High-Speed Processing: Fast instruction execution for real-time control

• Supports Expansion Modules: Connect up to 7 modules for flexible I/O extension

• Communication: Built-in RS-232 port for programming and communication

• User-Friendly Programming: Supports Delta’s WPLSoft software using ladder logic

• Reliable Relay Outputs: Suitable for switching AC/DC loads

• Power Supply: Operates on 24V DC with low power consumption

• Built-in Protection: Overload and short circuit protection on outputs

DVP-8EX and DVP-8EY Expansion Modules

• DVP-8EX: 8 digital inputs module to increase input channels

• DVP-8EY: 8 relay outputs module to expand output capabilities

• Plug-and-Play: Easily connects to the main DVP-14SS2 unit via expansion bus

• Wide Voltage Range: Compatible with 24V DC inputs and outputs

• Reliable Performance: Provides additional control points without complex wiring

How to Use the DVP-14SS2 with Expansion Modules

1. Installation
   Mount the DVP-14SS2 main CPU and expansion modules on a DIN rail inside the control cabinet.

2. Wiring
   Connect inputs (switches, sensors) and outputs (relays, actuators) to the PLC and expansion modules terminals following the wiring diagram.

3. Connect Expansion Modules
   Attach DVP-8EX or DVP-8EY modules via the expansion port on the main PLC. Ensure proper addressing as per the manual.

4. Programming
   Use WPLSoft software to write ladder logic programs. Configure additional I/O from expansion modules in the software.

5. Testing
   Upload the program to the PLC via RS-232 or USB adapter, then test the inputs and outputs.

6. Operation
   Monitor and control your automated process using the PLC and expanded I/O channels.

Applications

• Small machinery and automation systems

• Conveyor systems

• Packaging machines

• HVAC control

• Light control and monitoring systems

• Industrial process control with limited space

Why Choose Delta DVP-14SS2 with Expansion Modules?

• Flexible and scalable for growing automation needs

• Easy-to-use software and programming environment

• Compact and space-saving design

• Reliable relay outputs for versatile applications

• Cost-effective solution for small to medium industrial control systems
