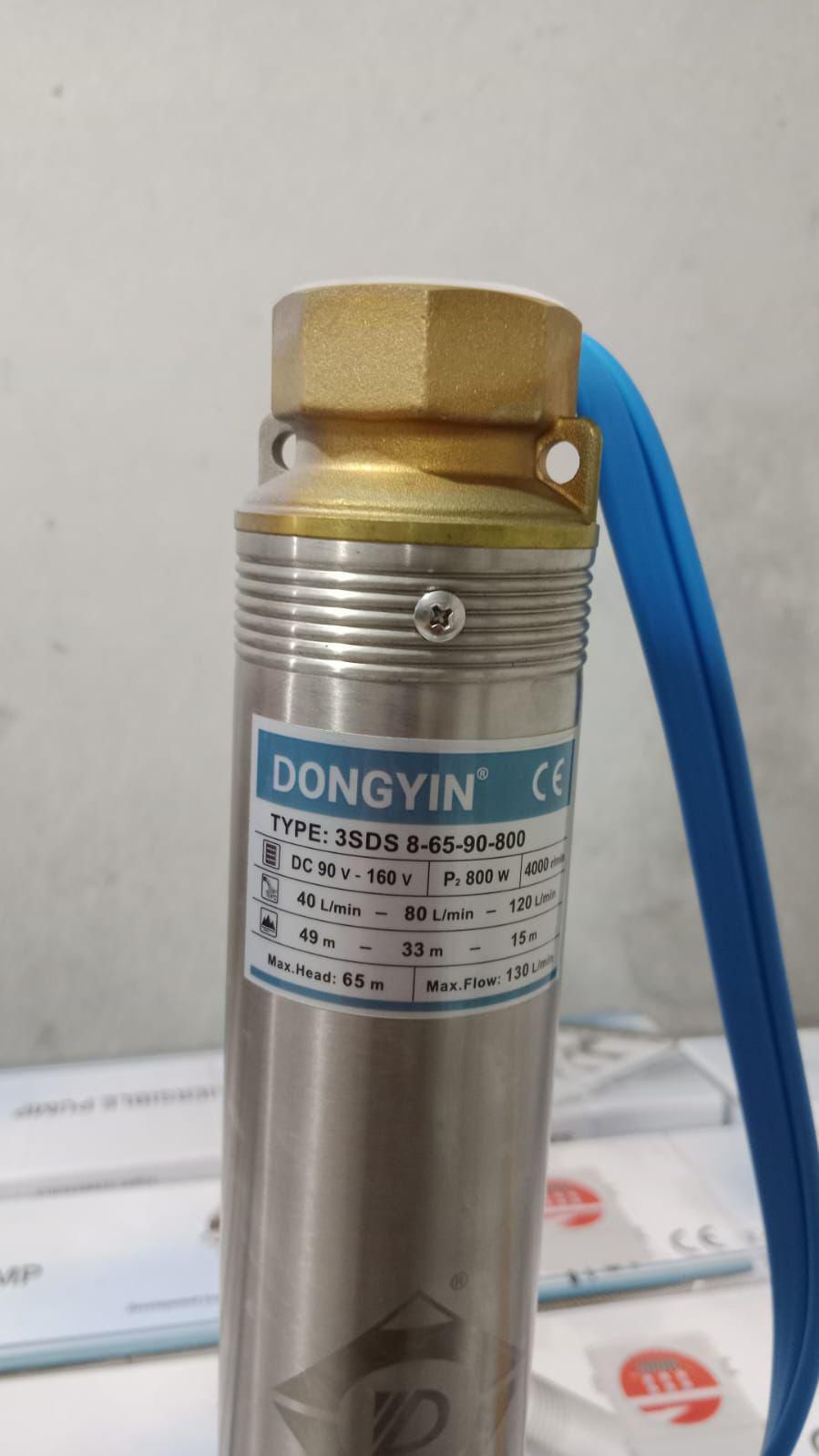

DONGYIN 3SDS 8-65-90-800 Solar Submersible Pump

DONGYIN 3SDS 8-65-90-800 Solar Submersible Pump in Lahore Pakistan

DONGYIN 3SDS 8-65-90-800 Solar Submersible Pump

Product Description

The DONGYIN 3SDS 8-65-90-800 is a high-performance solar-powered submersible pump designed for water supply applications in rural, agricultural, and off-grid areas. Built with advanced technology and durable materials, this pump ensures reliable water delivery directly from wells, boreholes, and reservoirs using clean and renewable solar energy. It eliminates dependence on grid electricity or diesel, making it both eco-friendly and cost-effective.

This pump is engineered for long-lasting performance, energy efficiency, and low maintenance, ideal for irrigation, livestock watering, and household water supply.

Technical Specifications

• Model: 3SDS 8-65-90-800

• Type: Solar submersible pump

• Max Flow Rate: 8 m³/h

• Max Head: 65 m

• Rated Power: 800W

• Voltage: 90V DC (solar powered)

• Pump Diameter: 3 inches

• Material: Stainless steel construction for durability and anti-corrosion

• Application: Deep well, borehole, irrigation, drinking water supply

Key Features

✅ Solar-Powered Efficiency – Works directly with solar panels, saving energy costs and reducing carbon footprint.
✅ High Flow & Pressure – Delivers up to 8,000 liters per hour with a head of 65 meters.
✅ Durable Build – Stainless steel body with corrosion resistance for long service life.
✅ Brushless DC Motor – Ensures high efficiency, low noise, and minimal maintenance.
✅ Eco-Friendly & Cost-Saving – Runs on renewable solar energy, eliminating fuel and electricity expenses.
✅ Wide Applications – Suitable for agriculture, livestock, irrigation systems, gardens, and household water supply.
✅ Automatic Protection – Built-in safety features such as over-voltage, under-voltage, overload, and dry-run protection.

How to Use

1. Install Properly – Lower the pump into the borehole or water source (minimum recommended diameter: 3 inches).

2. Connect to Solar Panels – Ensure proper wiring with a compatible solar controller and connect the pump to solar panels (as per voltage & wattage requirements).

3. Use a Solar Pump Controller – Regulates power supply, improves efficiency, and provides protection against electrical faults.

4. Start Operation – The pump will automatically operate when sunlight is available, delivering water to your storage tank, irrigation system, or household use.

5. Maintenance – Clean filters periodically, check solar panel connections, and ensure the water source remains free from large debris.

Applications

• Agricultural irrigation systems

• Livestock & farm watering

• Domestic & community water supply

• Garden and landscape watering

• Remote area drinking water projects
