⛓️ Timing Belt HTD 550-5M for CNC Machines
Category: CNC Machine Parts > CNC Helical Racks & Pinion > Pinion & Gear Box
✅ Product Overview

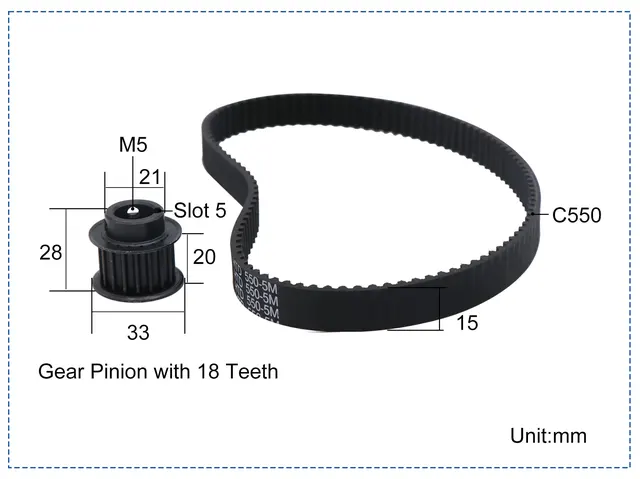

The HTD 550-5M Timing Belt is a high-performance, precision-engineered synchronous belt designed to transfer rotary motion efficiently in CNC machines and automation equipment. With a length of 550mm and a 5mm pitch, this belt belongs to the HTD (High Torque Drive) series, known for its ability to handle high loads and maintain accurate motion control.
Commonly used in CNC routers, laser engravers, 3D printers, and other motion control systems, this timing belt ensures quiet operation, minimal slippage, and precise synchronization between pulleys.
🔧 Key Features
-
550mm Belt Length
Designed for specific drive systems requiring exact belt dimensions. -
HTD Profile (High Torque Drive)
Rounded tooth profile for increased strength and smoother engagement. -
5M Pitch
5mm tooth pitch suitable for high-speed and high-precision applications. -
Durable Materials
Made from reinforced rubber with fiberglass cords for strength and flexibility. -
Anti-Slip Performance
Synchronous motion eliminates slippage common in standard belts. -
Oil & Wear Resistant
Long service life even in demanding industrial environments. -
Low Noise & Smooth Motion
Ideal for precise CNC movements and noise-sensitive setups.
⚙️ Technical Specifications
| Specification | Value |
|---|---|
| Belt Type | HTD Timing Belt |
| Tooth Pitch | 5mm (5M) |
| Belt Length | 550mm |
| Number of Teeth | 110 |
| Belt Width Options | 9mm, 15mm (depending on variant) |
| Material | Neoprene rubber with fiberglass cords |
| Operating Temperature | -20°C to +100°C |
| Compatible Pulleys | HTD 5M pulleys (same pitch) |
| Applications | CNC machines, 3D printers, automation systems |
🛠️ How to Use
Step 1: Select Matching Pulley
-
Use with HTD 5M pulleys (tooth profile must match).
-
Ensure correct pulley diameter and tooth count for your transmission ratio.
Step 2: Install the Belt
-
Loop the HTD 550-5M belt over the motor pulley and driven pulley (e.g., leadscrew pulley or gantry pulley).
-
Ensure proper alignment to avoid wear.
Step 3: Tension the Belt
-
Adjust belt tension to recommended tightness — firm but not overstretched.
-
A loose belt can cause backlash; overtightening may reduce lifespan.
Step 4: Test the System
-
Jog the axis slowly using CNC controls.
-
Listen for abnormal noise and observe if there's any vibration or skipping.
🧰 Applications
-
CNC Router Machines (X/Y Axis Drive)
-
CNC Laser and Plasma Cutters
-
3D Printers (belt-driven axis)
-
Pick-and-Place Machines
-
Linear Actuator Drives
-
Automated Conveyor Systems
🌟 Why Choose the HTD 550-5M Timing Belt?
-
Reliable performance in high-speed CNC environments
-
Long-lasting with minimal maintenance
-
Perfect fit for HTD 5M pulley systems
-
Maintains accurate position control
-
Cost-effective and easy to replace
