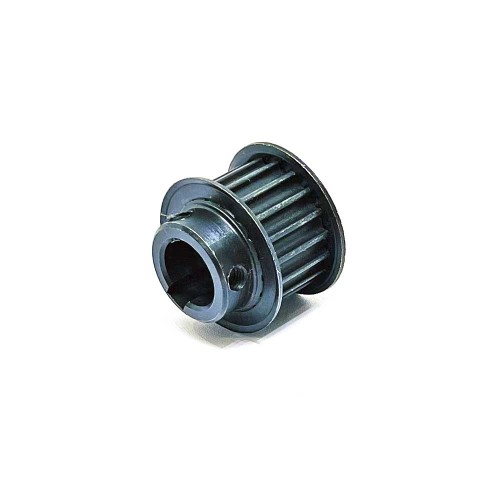

⚙️ Pulley Pinion 14mm for CNC Machines

Category: CNC Machine Parts > CNC Helical Racks & Pinion > Pinion & Gear Box

✅ Product Overview

The Pulley Pinion 14mm is a precision-machined component designed for transmitting rotary motion from a motor to a linear rack system in CNC machines. With a 14mm bore size, it is compatible with motors or shafts of 14mm diameter and is typically used in rack-and-pinion drive systems for CNC routers, laser cutters, plasma machines, and automated gantries.

This pinion gear works in conjunction with a timing pulley or rack and ensures accurate, backlash-minimized motion control.

🔧 Key Features

• 14mm Inner Bore Size
  Designed to fit motors or shafts with a 14mm diameter.

• High-Precision Teeth
  Accurate gear teeth provide smooth, consistent motion and minimize backlash.

• Hardened Steel / Alloy Construction
  Built to endure high torque loads, wear, and long operational cycles.

• Helical or Straight Teeth Options (specify if available)
  Enables smoother engagement and quieter operation (in helical type).

• Anti-Slip Design
  Machined for a secure grip on the shaft, often includes a keyway or set screws.

• Compatible with Gearboxes or Timing Pulleys
  Easy integration into various CNC transmission systems.

• Low Maintenance
  Minimal wear when paired with properly aligned racks and gearboxes.

⚙️ Technical Specifications

🛠️ How to Use

Step 1: Mounting

• Slide the pulley pinion onto a 14mm motor or gearbox shaft.

• Align the keyway or set screw with the shaft slot (if applicable).

Step 2: Tightening

• Secure the pinion with set screws or a locking ring to prevent slippage during motion.

Step 3: Rack Engagement

• Align the pinion with the CNC helical rack for accurate gear meshing.

• Maintain correct pitch and backlash setting for smooth operation.

Step 4: Test Motion

• After installation, jog the axis slowly to check for smooth movement, proper alignment, and no vibration.

🧰 Applications

• CNC Routers (Wood, Acrylic, Foam)

• CNC Plasma and Laser Cutters

• CNC Gantry Systems and XY Tables

• Industrial Automation

• Motion Transfer in Rack-and-Pinion Systems

🌟 Why Choose Our 14mm Pulley Pinion?

• Precision-engineered for CNC-grade performance

• Durable, long-lasting materials

• Easy to install and align

• Compatible with most standard racks and motor setups

• Available in different tooth profiles and counts (customizable)
