🛠️ DSP-0501 (Eco) CNC Controller

Category: CNC Machine Parts > CNC Control System > DSP Controllers

✅ Product Overview

The DSP-0501 (Eco) is a standalone CNC controller designed for 3-axis CNC routers and engraving machines. It operates independently without a computer, making it ideal for small to medium-sized CNC setups that need high performance, simplicity, and reliability. The DSP controller is widely used for woodworking, signage, prototyping, and other engraving applications.

This Eco version offers essential features at an affordable price, without compromising on quality and performance.

🔧 Key Features

• Standalone Operation – No need for a PC. Upload G-code via USB.

• 3-Axis Control – Supports X, Y, Z axis motion.

• Offline File Transfer – Transfer files using a USB flash drive.

• User-Friendly Interface – Easy-to-navigate handheld controller with LCD screen.

• High Compatibility – Works with most stepper motor-based CNC machines.

• Real-Time Preview – Simulate tool paths before executing a job.

• Pause, Resume, and Emergency Stop – Full control during operation.

• Memory Storage – Save multiple jobs directly on the controller.

• Up to 3.5A Output – Suitable for various CNC motor drivers.

• Supports Standard G-code – Compatible with popular CAM software output like ArtCAM, Type3, Aspire, etc.

📦 What’s Included

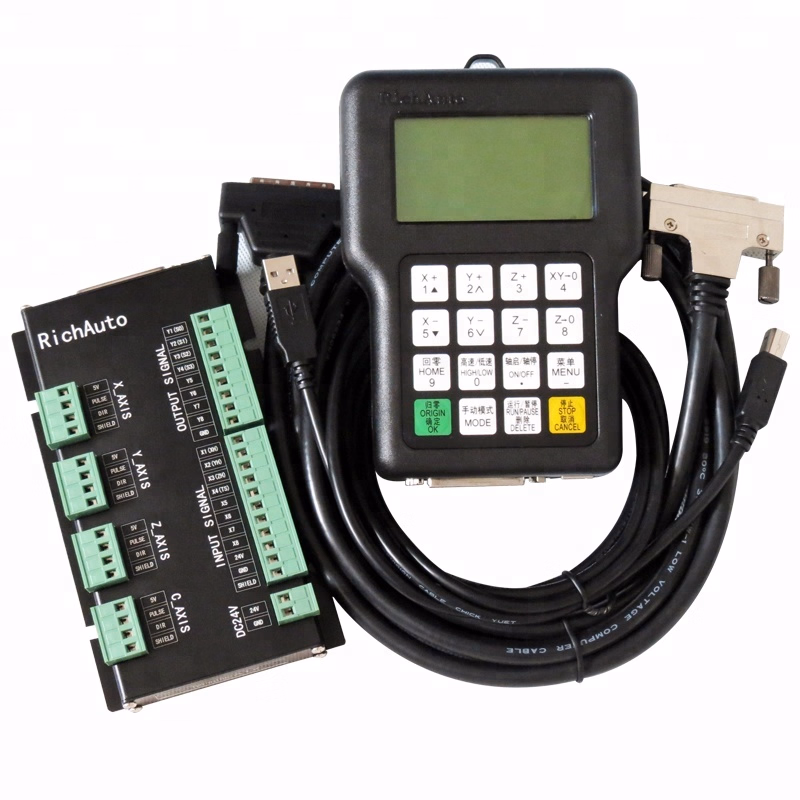

• DSP-0501 (Eco) handheld controller

• Signal cables

• USB Flash Drive

• Power adapter (if applicable)

• User Manual

⚙️ How to Use

Step 1: Connect to Machine

• Connect the DSP-0501 controller to the stepper motor drivers and power supply.

• Ensure correct wiring for X, Y, and Z axis.

Step 2: Prepare G-code

• Generate your design in software like ArtCAM, Aspire, or Type3.

• Export the toolpath as G-code (.nc or .txt file).

Step 3: Transfer File

• Copy G-code to a USB flash drive.

• Insert the USB into the DSP controller.

Step 4: Run the Job

• Use the navigation keys to load the G-code file.

• Set the origin point manually for X, Y, Z.

• Press 'Run' to start the job.

• Use Pause/Resume/E-Stop buttons for control during operation.

💡 Ideal For

• CNC Woodworking Machines

• Sign Making and Acrylic Cutting

• PCB Milling

• 3D Surface Engraving

• Educational CNC Projects

📌 Technical Specifications

🛒 Why Choose DSP-0501 (Eco)?

• Cost-effective yet powerful

• Eliminates the need for a dedicated computer

• Simple to install and operate

• Proven reliability in thousands of machines worldwide
