CNC Machine Parts | CNC Control System | Cards | Mach 3 Breakout Board – Green

CNC Machine Parts | CNC Control System | Cards
| Mach 3 Breakout Board - Green in Lahore Pakistan

Here’s a detailed, professional website product description for:

🧩 CNC Machine Parts | CNC Control System | Cards | Mach3 Breakout Board – Green Edition

✅ Product Description:

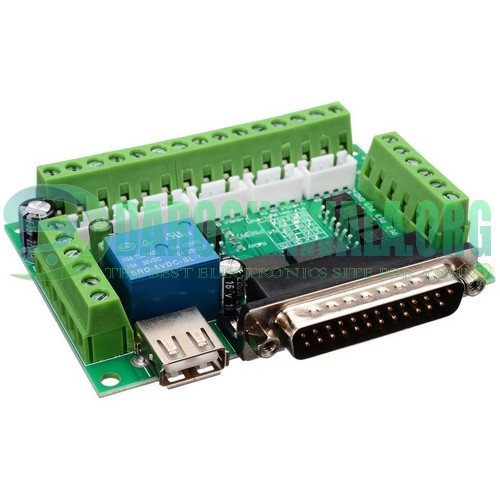

The Mach3 Breakout Board (Green Edition) is a high-performance interface board designed to connect your PC running Mach3 CNC software to the stepper motor drivers, spindle, limit switches, and other components of your CNC machine.

This board offers stable signal output, opto-isolation, and easy connectivity, making it perfect for hobbyists and professionals alike.

Whether you're building a new CNC system or upgrading an existing one, this breakout board is the backbone of a reliable and precise motion control setup.

🔍 Key Features:

• 🟢 Green PCB design – high-quality PCB with clear labeling

• 🔌 DB25 Parallel Port Interface – plug and play with your PC (LPT port)

• 🔒 Opto-isolated input signals – protect your PC and electronics from high voltage spikes

• ⚡ Relay output for spindle control – 5V or 12V spindle control support

• 🔁 Supports up to 5 axes (X, Y, Z, A, B)

• 💡 Onboard status LEDs – monitor input/output signals in real time

• 🔐 Emergency stop (E-Stop) and Limit Switch support

• 🔌 +5V regulated power supply included (USB or external)

🧭 How to Use:

1. Connect the Breakout Board to Your PC

   • Use a parallel cable (DB25) to connect the board to your computer’s LPT port.

   • If your PC doesn’t have an LPT port, use a PCI parallel card or USB-to-LPT converter (if supported).

2. Wire the Stepper Motor Drivers

   • Connect STEP and DIR signal wires for each axis from the breakout board to your stepper motor drivers.

3. Connect I/O Devices

   • Wire limit switches, E-stop switch, probe, and spindle relay to their respective inputs/outputs.

4. Power the Board

   • Supply 5V power via USB or an external power source.

5. Configure in Mach3 Software

   • Set the port address and assign pins for each axis and input/output in Mach3’s configuration menu.

6. Test System

   • Run a test jog for each axis and check signal LEDs for activity.

🎯 Applications:

• CNC routers

• CNC milling machines

• CNC plasma/laser cutters

• DIY CNC kits

🚀 Future-Ready Capabilities:

The Mach3 Breakout Board – Green Edition is designed to support future upgrades:

• 🔄 Expandable I/O: Can be paired with additional driver boards or relays.

• ⚙️ Mach4 compatibility (via adapters or hybrid control systems)

• 🧠 Integration with wireless MPG handwheels

• 🔋 Ready for power failure protection systems

• 🔌 Compatible with newer high-torque stepper driver technologies (like TB6600, DM542, etc.)

📦 What's in the Box?

• ✅ 1x Mach3 Green Edition Breakout Board

• ✅ 1x USB Power Cable

• ✅ 1x User Manual / Wiring Guide (PDF available)

• ✅ Free Mach3 Configuration Support (via email or WhatsApp)

💡 Why Choose Our Breakout Board?

• 🔧 Easy plug-and-play installation

• 💬 Technical support available

• 🧪 Rigorously tested for signal stability

• 🛡️ Short-circuit & reverse polarity protection

• 💰 Affordable and reliable for both DIY and industrial setups
