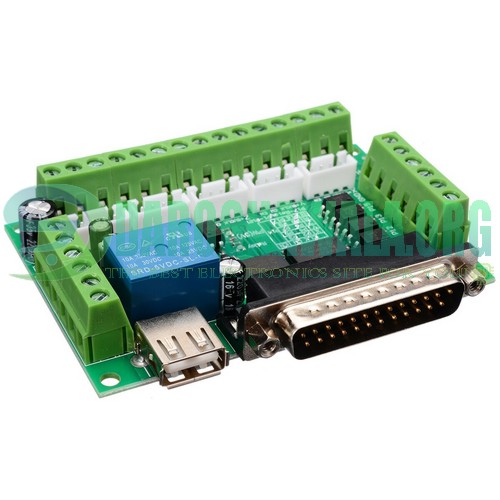

🧩 CNC Machine Parts | CNC Control System | Cards | Mach3 Breakout Board – Blue Edition

✅ Product Description:

The Mach3 Breakout Board – Blue Edition is a premium interface board designed for CNC machines using Mach3 software. This board acts as a crucial link between your computer (via parallel port) and your CNC machine's drivers, relays, limit switches, and spindle controls.

It is engineered with enhanced stability, improved noise resistance, and optically isolated I/O, making it ideal for hobbyists and professional CNC builders who want a reliable, accurate, and safe motion control system.

🔍 Key Features:

• 🔵 Blue PCB design – high-quality board with strong signal integrity

• 🔌 DB25 (Parallel Port) Interface – standard connection with Mach3 software

• 🔒 Opto-Isolated Inputs/Outputs – protects sensitive PC electronics

• ⚡ Built-in Relay – supports automatic spindle or cooling control

• 🔁 Supports 3 to 5 axes (X, Y, Z, A, B)

• 💡 LED indicators for signal status – easy troubleshooting and diagnostics

• 🔐 Emergency Stop (E-Stop), Limit Switch, and Probe Pin support

• 🔋 Power Supply: USB-powered or external 5V

🧭 How to Use:

1. Connect to PC:

   • Use a standard DB25 cable to connect the breakout board to your PC's parallel port.

   • If no LPT port is available, use a compatible PCI-LPT card.

2. Wire Motor Drivers:

   • Connect STEP and DIR signals to each stepper motor driver for X, Y, Z (and optional A/B axes).

3. Connect I/O Devices:

   • Wire your limit switches, E-Stop, probe, relay, and other components to the labeled terminals.

4. Power the Board:

   • Plug in a USB cable or use an external 5V power supply.

5. Setup in Mach3:

   • Open Mach3, go to Ports and Pins, assign pins for step/direction, limit switches, E-stop, spindle, etc.

6. Test and Run:

   • Jog the axes to test motion and verify LEDs respond to inputs/outputs.

🎯 Applications:

• Desktop and industrial CNC routers

• CNC plasma cutters

• CNC milling machines

• CNC engravers and laser cutters

• DIY and retrofit CNC machines

🚀 Future-Ready Capabilities:

The Mach3 Breakout Board – Blue Edition is engineered with future expansion in mind:

• 🧩 Compatible with a wide range of stepper and servo drivers (TB6600, DM542, Leadshine, etc.)

• 🔁 Can be integrated with external relays, VFDs, or MPG handwheels

• 📡 Ready for wireless MPG controller integration

• ⚙️ Ideal for upgrade paths to Mach4 or Ethernet-based motion controllers

• 🧠 Potential to support closed-loop system feedback (with external encoder setup)

📦 What’s Included:

• ✅ 1x Mach3 Breakout Board – Blue Edition

• ✅ 1x USB Power Cable

• ✅ Wiring guide / user manual (digital PDF)

• ✅ Optional: 25-pin parallel cable (if included in bundle)

💡 Why Choose This Board?

• 🔧 Plug-and-play installation with Mach3

• 🛡️ Safe, stable, and EMI-resistant design

• 💬 Full technical support for configuration

• 🧪 Factory tested for reliability

• 💰 Cost-effective for both DIYers and OEM builders
