CNC Ball Screws | Ball Screw Set | 1605 | SFU1605-4-410 (EM-BKBF12)

🔩 CNC Ball Screw Set – SFU1605-4-410 (EM-BKBF12)

📄 **Product Description:

The SFU1605-4-410 Ball Screw Set** is a high-performance linear motion system designed for precision CNC applications. This screw has a 16mm outer diameter, a 5mm lead (pitch), and a total length of 410mm, with pre-machined ends to match EM-BKBF12 support units. It includes a preloaded SFU1605 ball nut, ideal for high-precision motion with minimal backlash.

It’s an excellent choice for CNC routers, milling machines, 3D printers, engraving systems, and automated machinery requiring reliable and accurate linear drive components.

📐 Specifications:

✅ Key Features:

• ⚙️ High-Precision Motion: Achieve accurate and repeatable linear movement thanks to the SFU1605 ball nut and C7-class accuracy.

• 🔩 Pre-Machined Ends: Ready to install with EM-BKBF12 support units—no need for end machining or threading.

• 🧱 Hardened Steel Construction: Long-lasting performance even under continuous high-load use.

• 🧈 Low Friction Operation: Ball screw design ensures smooth operation with minimal friction and backlash.

• 🔁 Efficient Load Transfer: Excellent for transferring rotary motion to precise linear motion with high mechanical efficiency.

🛠️ How to Use:

1. Mount the Ball Screw:

   • Insert the ball screw into your linear rail or structure.

   • Attach BK12 (fixed side) and BF12 (floating side) support units using the pre-machined ends.

2. Install the Ball Nut:

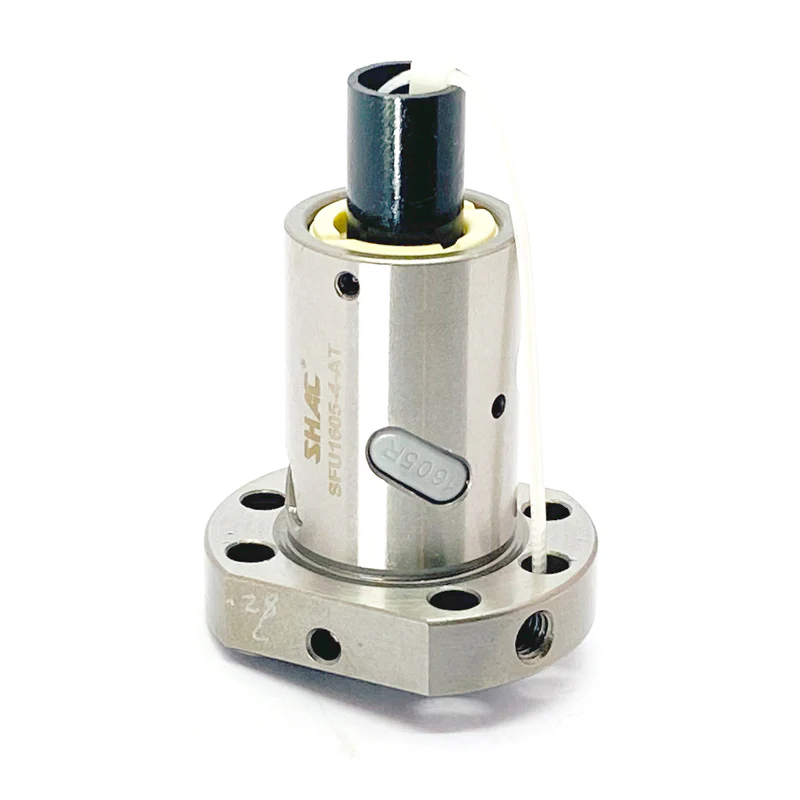

   • Secure the SFU1605 ball nut to your linear platform using a nut housing or flange plate.

3. Motor Connection:

   • Connect your stepper or servo motor via a shaft coupling on the fixed end of the screw.

4. Lubrication:

   • Apply recommended grease to the screw and inside the ball nut regularly to ensure smooth, quiet operation.

5. Alignment & Testing:

   • Check the alignment of the entire axis. Perform slow test movements to detect backlash or wobble.

⚙️ Applications:

• CNC milling and routing machines

• DIY CNC machines and kits

• Laser engraving and cutting systems

• 3D printers (large-format or industrial)

• Robotics and automated linear drives

• Industrial equipment needing smooth linear motion

📦 Package Includes:

• 1 × SFU1605 Ball Screw (Length: 410 mm)

• 1 × SFU1605 Ball Nut (pre-installed or separately packed)

• 1 × BK12 Fixed End Support

• 1 × BF12 Floating End Support

• 1 × Locknut + Circlip Set (for securing support side)

🚀 Why Choose This Ball Screw Set?

• Fully assembled and ready for installation

• Accurate and reliable for both hobbyist and industrial projects

• Strong and rigid even under high loads

• Reduced backlash for improved CNC precision

• Fast delivery, technical support, and optional customization available
