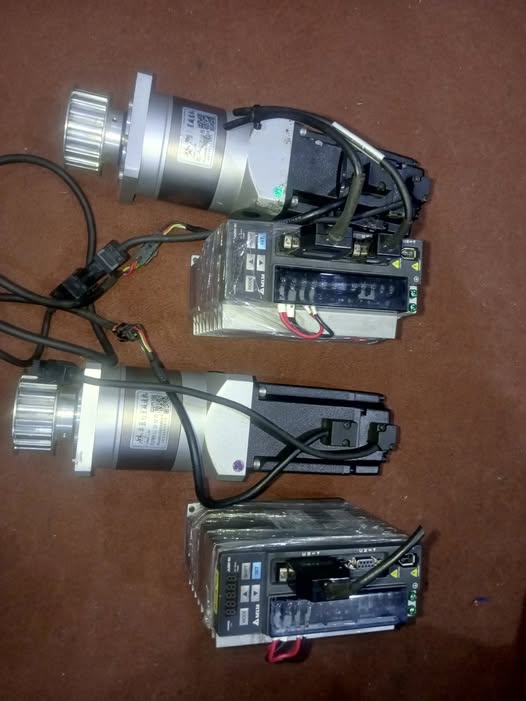

ASD-B2 Delete B3 E3 B2 AC servo motor and Driver 750w 1kw

ASD-B2 Delta servo motor and Driver 750w 1kw in Lahore Pakistan

Here’s a polished and comprehensive product description for your Delta ASDA‑B2 750 W / 1 kW AC Servo Motor & Drive System, perfect for your website. This includes specifications, usage guidance, and standout features.

Product Overview

The Delta ASDA‑B2 series offers reliable, high-performance servo systems, tailored for applications needing precise motion control. Available in 750 W (model ASD‑B2‑0721‑B) and 1 kW (ASD‑B2‑1021‑B) variants, these units pair with compatible ECMA series servo motors to deliver efficient, accurate, and versatile operation.

Technical Specifications

Servo Drive (ASDA‑B2 Series)

• Power Ratings: Available in 750 W and 1 kW among other options. damencnc.comXYZ Machinery GmbH

• Input Voltage: Supports 200–255 VAC single-phase or 170–255 VAC three-phase (50/60 Hz). United AutomationXYZ Machinery GmbH

• Continuous Output Current:

  • ~5.1 Arms for 750 W

  • ~7.3 Arms for 1 kW United AutomationXYZ Machinery GmbH

• Control Modes: Position, Speed, and Torque, selectable via parameters. xsdautomatic.en.made-in-china.comE-Motion Supply

• Feedback Support: Encoders up to 17-bit resolution (160,000 ppr). xsdautomatic.en.made-in-china.comE-Motion Supply

• Command Interfaces:

  • Pulse inputs: up to 4 Mpps (line driver); 200 Kpps (open collector).

  • Analog inputs: ±10 V DC. United Automationxsdautomatic.en.made-in-china.com

• Additional Features: Auto-tuning, SVPWM control, auto notch filters, built-in regenerative resistor (750 W+), digital keypad + tuning software (ASDA‑Soft). E-Motion Supplyxsdautomatic.en.made-in-china.comUnited Automation

• Safety & Protections: Overcurrent, overvoltage, encoder errors, overheating, regeneration faults, and more. kwoco-plc.com

• Communication: RS‑232/RS‑485 (and possibly Modbus, CANopen, EtherCAT depending on configuration) xsdautomatic.en.made-in-china.comkwoco-plc.com

• Environment:

  • Temperature: 0 °C to 55 °C

  • Protection: IP20

  • Standards: IEC/EN 61800‑5‑1, UL 508C (CE, RoHS certified) kwoco-plc.com

Servo Motor (ECMA Series)

Compatible motor options include:

• Low-Inertia Motor (C21010S) for 1 kW systems; rated torque ~3.18 N·m, max torque ~9.54 N·m, speed up to 5000 rpm, IP65. XYZ Machinery GmbH

• Motors for 750 W systems are also available (e.g., ECMA‑C20807S low-inertia), with matching cables and accessory configurations. innomotion.euXYZ Machinery GmbH

How to Use (Setup & Operation)

1. Mounting & Installation

• Drive Mounting: Install vertically on a solid, dry surface—leave ~2 inches clearance above and below for heat dissipation. Avoid mounting horizontally. Scribd

• Motor Installation: Mount firmly for proper heat dissipation and mechanical grounding. Scribd

2. Wiring Connections

• Power Input: Connect to L1/L2 or equivalent terminals; confirm voltage matches specification.

• Motor Phases: Wire U/V/W to the motor, and connect FG (frame ground).

• Encoder Feedback: Hook up via designated encoder port (e.g., CN2 or equivalent).

• Control Signals: Use CN1 connector for pulse, analog, or digital I/O. Scribdinnomotion.eu

3. Initial Testing (No Load)

• Use digital keypad or ASDA-Soft to initiate a JOG test at low speed.

• Confirm proper motor rotation; troubleshoot any errors. Scribd

4. Parameter Configuration

• Set the motor type, encoder resolution, control mode, and feedback parameters via keypad or software.

• Configure acceleration profiles, braking, I/O mapping, and safety limits.

5. Operation & Tuning

• Start in JOG or speed mode; verify smooth acceleration and response.

• Apply full-load scenarios; adjust tuning (e.g., notch filters, gains) for precision and stability.

6. Maintenance & Safety

• Monitor drive temperature, load, and alarms via ASDA-Soft.

• Maintain cleanliness and proper ventilation.

• Use external regenerative resistors as recommended to handle excess energy. Scribd

Key Features & Benefits

Applications

• CNC machining centers and lathes

• PCB assembly and pick‑and‑place systems

• Printing, packaging, feeding, and labeling equipment

• Robotic positioning and indexing machinery

• Cutting, molding, and filling systems
