5pin sensor cable connector

5pin sensor cable connector in Lahore Pakistan

Here’s a polished overview of a general 5‑pin sensor cable connector—perfect for enhancing website listings. The details cover product specs, usage guidance, and standout features.

Product Details

• Connector Type: Typically an M12 5‑pin circular connector, available in A‑coded or B‑coded variants depending on wiring standards industryparts.pkNewark ElectronicsFarnell IrelandATEK Sensor Technologies.

• Pin Configuration: 5‑pin (often 4 signal pins + 1 ground/shield) KernalAutosenindustryparts.pk+1.

• Gender & Mounting:

  • Cable‑mounted plug (male or female) with mating socket on devices Newark ElectronicsATEK Sensor TechnologiesFarnell Ireland+1.

  • Options include straight or 90° angled connectors ATEK Sensor Technologies.

• Cable Types & Lengths:

  • PVC or durable PUR jacketed cables, lengths typically ranging from 2 m to 10 m ATEK Sensor TechnologiesAutosenindustryparts.pkFarnell Estonia.

• Environmental Protection:

  • Often rated IP67, with some ruggedized versions achieving IP68/IP69K for dust, water, and high‑pressure cleaning resistance Autosenindustryparts.pk+1Farnell IrelandATEK Sensor Technologies.

• Electrical Ratings:

  • Common voltage: up to 60 V DC (some models up to 63 V), current rating around 4 A (higher for specialized types) Farnell Irelandelement14Autosen.

  • Contacts typically brass with gold or nickel plating for corrosion resistance Farnell Irelandindustryparts.pkAutosenelement14.

• Construction:

  • Bodies made of robust materials such as Nylon (Polyamide), PBT, or PA66 + GF; locking via threaded coupling or nut-locking systems, often incorporating O‑rings (e.g., Viton) for sealing industryparts.pk+1Farnell IrelandATEK Sensor TechnologiesAutosen.

How to Use

1. Choose the Right Connector

   • Match the connector coding (A or B) with your device’s port.

   • Select gender: plug (male pins) for cable end, receptacle (female sockets) for device input.

2. Route and Wire

   • Run cable from sensor or actuator to control equipment, keeping bends gentle—ideal bend radius depends on cable type (PUR offers more flexibility than PVC).

3. Secure Connection

   • Align keying and thread the connector until fully seated and tight to ensure IP‑rated sealing.

4. Test Functionality

   • Power up and check that the sensor/transducer communicates as expected.

   • A well‑sealed connection shields signals from interference and environmental factors.

5. Maintenance

   • Periodically inspect for physical wear, damage, or loose coupling.

   • For high-humidity or cleaning environments, ensure IP68/IP69K-rated versions to maintain integrity.

Key Features & Benefits

Sample Product Summary (for Website)

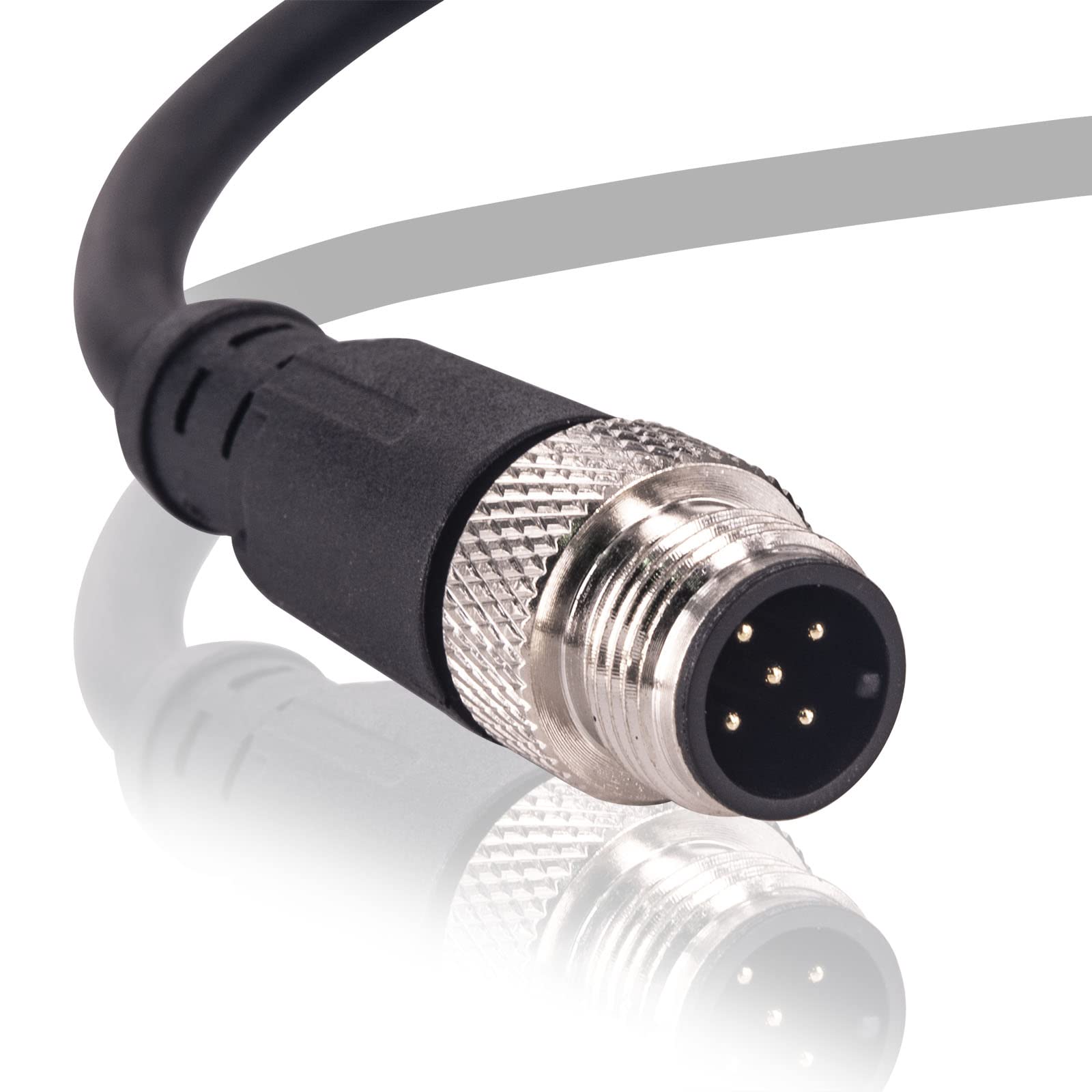

M12 5‑Pin Sensor Cable Connector (IP67 Waterproof)
A rugged, reliable M12 5‑pin cable assembly—ideal for sensor/actuator connections in industrial environments. Features include threaded locking, A‑coding, PVC/PUR jackets, and cable lengths from 2 m to 10 m. Rated up to 60 V DC/4 A with IP67 sealing, and premium plating on contacts ensures lasting service. Available in straight or right‑angle configurations to suit tight mounting spaces.
