4″ Stainless Steel RTD PT100 Sensor Probe
₨0
Need some help?
Contact Us
Product Ships in
2-3-business Days
Payment Methods:
4" Stainless Steel RTD PT100 Sensor Probe in Lahore Pakistan
🔧 Product Name:

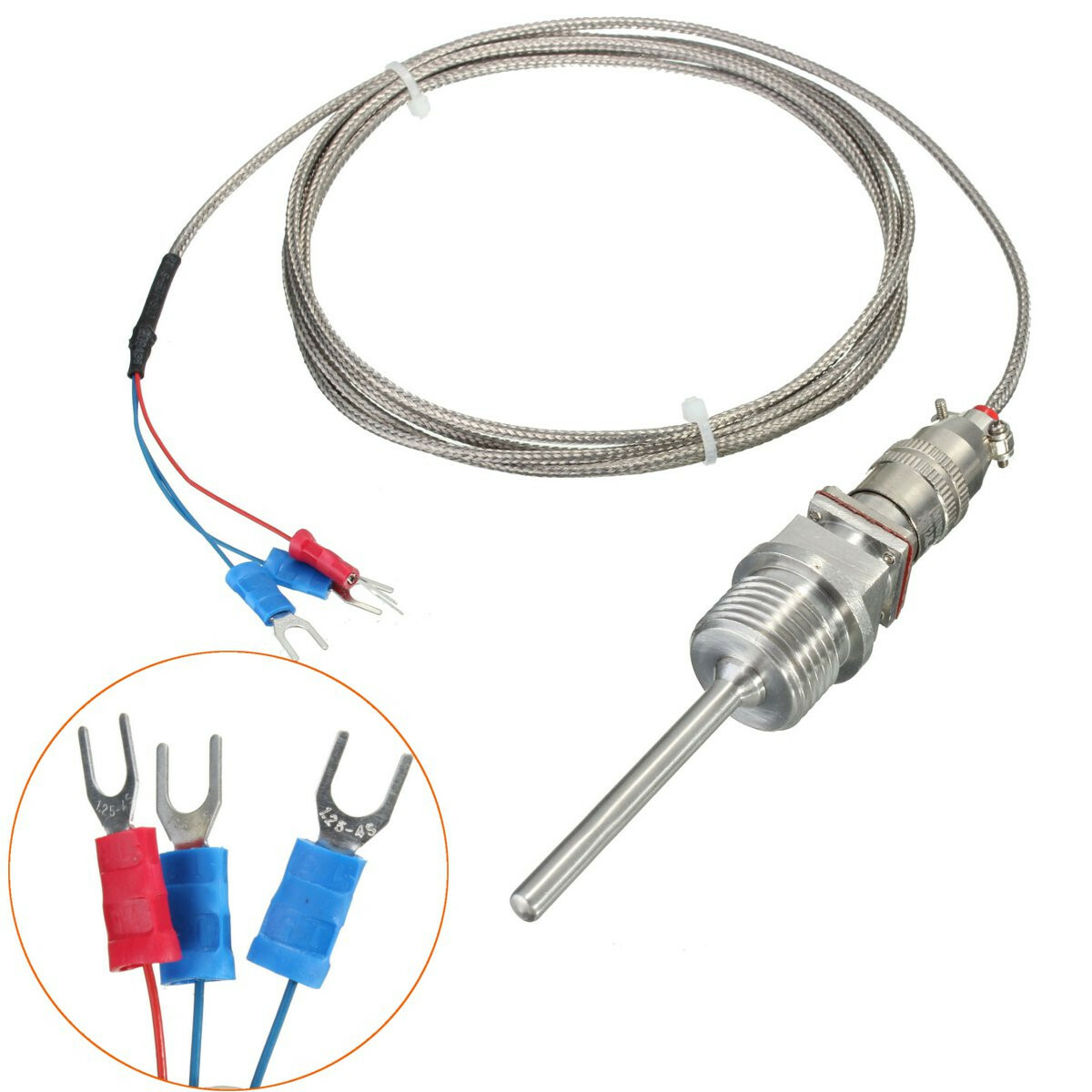

4" Stainless Steel RTD PT100 Sensor Probe – 3-Wire, High Accuracy Temperature Sensor
📦 Product Overview:
The 4-inch Stainless Steel RTD PT100 Sensor Probe is a precision temperature sensor designed for accurate and reliable temperature measurement in industrial environments. Constructed with a durable stainless steel sheath and featuring a 3-wire configuration, this PT100 probe ensures excellent resistance to corrosion, vibration, and thermal shock while minimizing lead resistance for superior accuracy.
Ideal for use with PLCs, temperature controllers, data loggers, and automation systems in industries like HVAC, food processing, chemical, and manufacturing.
📐 Technical Specifications:
| Specification | Detail |
|---|---|
| Sensor Type | RTD – PT100 (Resistance Temperature Detector) |
| Sensing Element | Platinum (100Ω at 0°C) |
| Configuration | 3-wire (lead resistance compensation) |
| Probe Length | 4 inches (approx. 100mm) |
| Probe Diameter | 6mm or 8mm (customizable) |
| Material | 304 or 316 Stainless Steel |
| Temperature Range | -50°C to +250°C (standard); up to 500°C available |
| Accuracy Class | Class A or B (IEC 60751 compliant) |
| Cable Type | PTFE, PFA, or Silicone insulated leads |
| Cable Length | Standard: 1 meter (custom lengths available) |
| Connection | Open wire, terminal head, or M12 connector (optional) |
🌟 Key Features:
-
✅ High Precision: PT100 element offers reliable and repeatable measurements
-
✅ Stainless Steel Construction: Corrosion and heat resistant
-
✅ 3-Wire Design: Ensures lead wire compensation for accurate readings
-
✅ Wide Compatibility: Works with PLCs, PID controllers, and digital indicators
-
✅ Customizable Options: Available in different lengths, diameters, and cable types
-
✅ Industrial Grade: Vibration-resistant and suitable for harsh environments
⚙️ How to Use:
🧩 Installation:
-
Mount the Probe:
-
Insert the stainless steel probe into a thermowell, tank, or process line.
-
Can be clamped, threaded, or flanged depending on your setup.
-
-
Connect the Leads:
-
Wire the three leads to your temperature controller or PLC input.
-
Two wires connect to one side of the sensor, and one to the other—this allows the controller to eliminate lead resistance.
-
-
Configure the Device:
-
In your controller settings, choose "PT100, 3-wire" input mode.
-
Input sensor range (e.g., -50°C to +250°C).
-
🔎 Example Applications:
-
Industrial ovens and kilns
-
Brewery and distillery temperature monitoring
-
HVAC duct temperature control
-
Chemical and pharmaceutical reactors
-
Food and beverage processing tanks
📈 Benefits:
-
🛠 Low Maintenance: Stainless steel ensures long-term durability
-
📏 Stable Readings: Platinum RTD offers better linearity than thermocouples
-
🧯 Safe for Harsh Conditions: Ideal for high-temp, moisture, or corrosive environments
-
🔧 Easy Integration: Plug-and-play with most industrial controllers
📎 Optional Accessories:
-
Thermowells for immersion protection
-
DIN-rail temperature transmitters (4–20 mA output)
-
M12 quick-connect cables
-
Mounting brackets or flange adapters
📞 Need Customization?
We offer custom probe lengths, diameters, cable types, and connector types. Contact us for a quote tailored to your application.
