12mm Sensor in Lahore Pakistan
Here's a complete product description, features, usage guide, and website content for a 12mm Industrial Sensor β suitable for product listings, brochures, or e-commerce platforms.

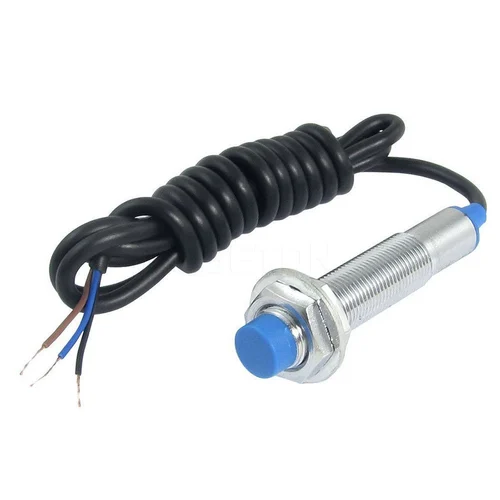

π© 12mm Proximity Sensor (Inductive Type) β M12 Industrial Automation Sensor
β Product Description:
The 12mm Proximity Sensor is a compact and highly reliable sensor used in automation systems for object detection without physical contact. Typically housed in an M12 threaded metal or plastic body, this sensor uses inductive technology to detect metallic objects within a predefined sensing range.
Ideal for use in conveyors, robotics, assembly lines, packaging machines, and material handling systems, the 12mm sensor offers high switching frequency, durability, and precision in harsh industrial environments.
π¦ Product Specifications:
| Specification | Details |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Housing Diameter | 12mm (M12 Threaded) |
| Sensing Distance | 2mm to 8mm (model-dependent) |
| Output Type | NPN / PNP, NO or NC (configurable) |
| Output Mode | 3-wire or 2-wire DC |
| Operating Voltage | 10V β 30V DC |
| Switching Frequency | Up to 1,000 Hz |
| Protection | Short-circuit and polarity protected |
| Enclosure Rating | IP67 β Waterproof and Dustproof |
| Cable Length | Standard 2m cable / M12 connector |
| Material | Nickel-plated brass / ABS plastic |
| Mounting | Flush / Non-flush mounting |
| Operating Temp. Range | -25Β°C to +70Β°C |
π Key Features:
-
βοΈ Compact M12 Housing β Ideal for tight or confined installations.
-
βοΈ Non-contact Detection β Reduces mechanical wear and maintenance needs.
-
βοΈ IP67 Waterproof Design β Perfect for wet, dusty, or oily industrial environments.
-
βοΈ Fast Response Time β Supports high-speed automation.
-
βοΈ LED Indicator β Built-in LED for operational and output status.
-
βοΈ Wide Voltage Range β Compatible with most PLCs and controllers.
-
βοΈ Shock and Vibration Resistant β Built for rugged industrial use.
βοΈ How to Use:
-
Select Mounting Location
Choose a position close to the metallic target, keeping within the sensorβs rated sensing distance. Ensure no surrounding interference. -
Mount the Sensor
Secure the sensor using M12-compatible brackets or mounting holes. Decide between flush or non-flush mounting as per your detection requirements. -
Wiring
Connect the sensor wires to your control system or PLC:-
Brown = +V (10β30V DC)
-
Blue = 0V (Ground)
-
Black = Output (NPN/PNP depending on model)
-
-
Test Functionality
Power the system and test by bringing a metal object close to the sensing face. Observe the LED indicator for activation. -
Adjust Settings (if applicable)
Some models allow for sensitivity tuning via a potentiometer.
π Applications:
-
βοΈ Conveyor Belt Systems
-
βοΈ Robotic Positioning
-
βοΈ Automated Packaging Lines
-
βοΈ Material Detection & Counting
-
βοΈ Industrial Lifts and Doors
-
βοΈ Metal Detection in Production Lines
π¦ Available Models:
| Model | Sensing Range | Output Type | Mounting |
|---|---|---|---|
| M12-NPN-NO-4MM | 4mm | NPN Normally Open | Flush Mount |
| M12-PNP-NC-8MM | 8mm | PNP Normally Closed | Non-Flush Mount |
| M12-CONN-DC | 2mm | M12 Connector | Flush Mount |
